6.6 Air return
TITANUS
®
air return

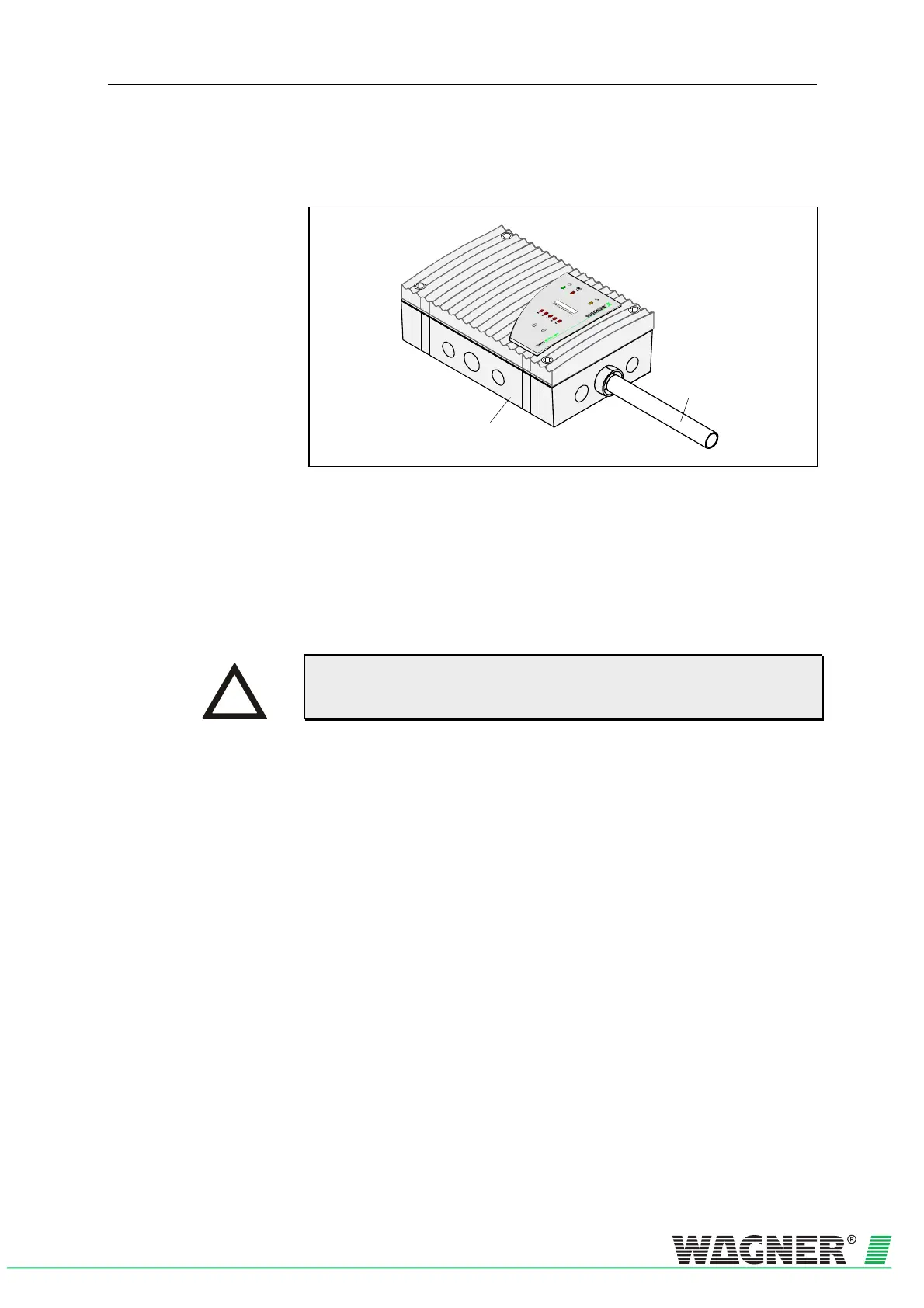

Fig. 6.9: Mounting of the air return
Feed the air return into the pipe connection provided on the TITANUS
MICRO·SENS
®
. As the air return pipe sits perfectly in the connection, it
will be held securely.
The air return is to be fixed immediately in front of the device, so that the
pipe is not pulled out of the pipe connection by any changes in length
which occur (see Chapter 6.1).
