WAGNER TITANUS User Manual

Technical Description TITANUS MICRO·SENS
®
2 – 6 Data: 01/09 MS_A_02-a-en-e
2.2 TITANUS MICRO·SENS
®
and Accessories
2.2.1 Overview
B
A
D
C
TITANUS
®
E
Relay board RU-1
(optional)
Relay platine RU-2
(optional)
Reset board
(optional)
Front film
(optional)
Parallel display unit
(optional)
A
B
C
D
Cable entries
M25
(optional)
Cable entries
M 20
(optional)
Connections
FAS / Power supply
Pipe systems
Air return feed
to the next smoke
detection system
Test pipe
(optional)
Network interface board
(optional)
Fire alarm
cable
Diagnostics tool
Additional housing
(optional)
Reactio n indicator
(optional)
detector box
(optional)
E
Indicator bus
Line modules
(optional)
Separation and reset
button (optional)

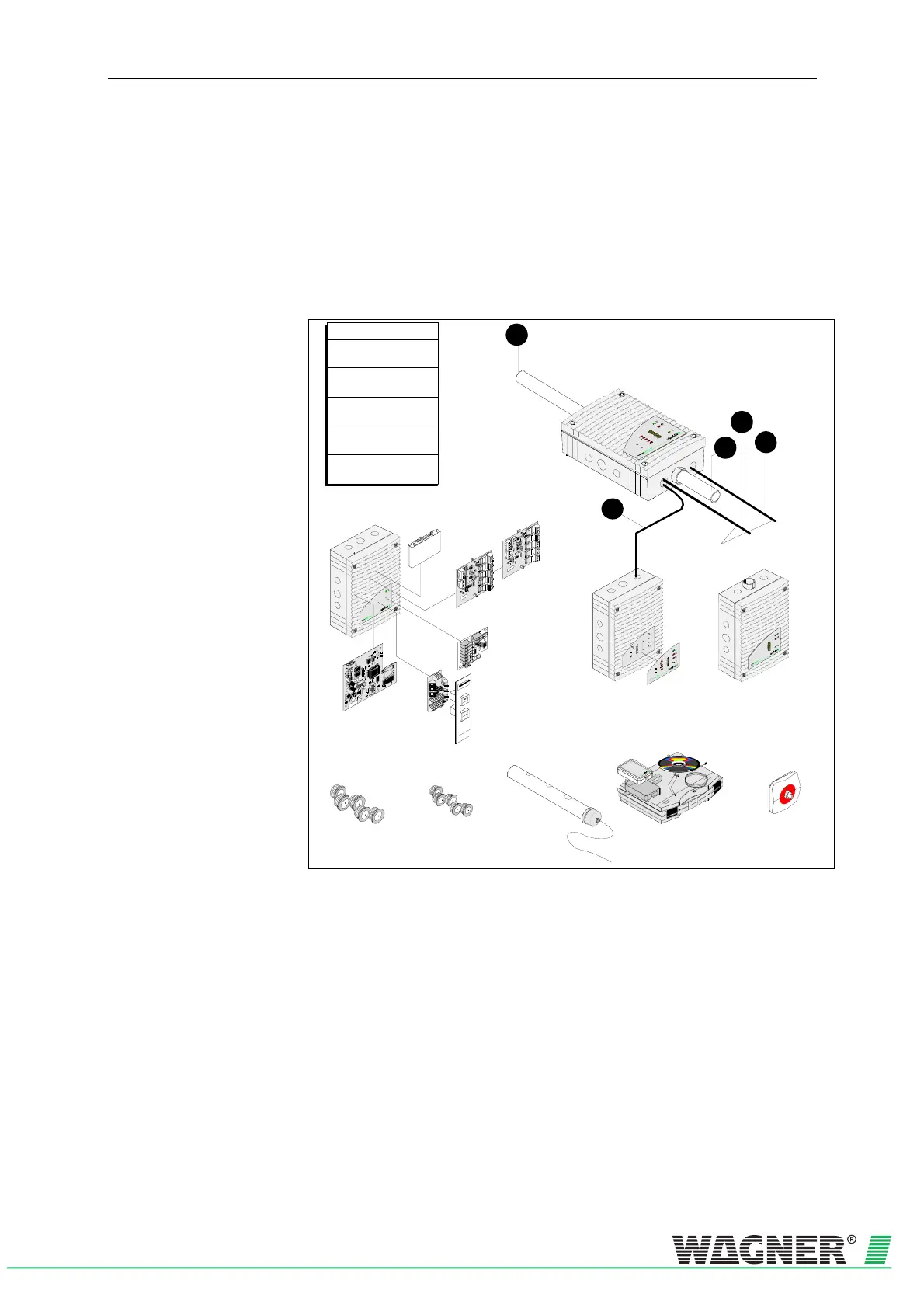

Fig. 2.7: Overview TITANUS MICRO·SENS
®
The components shown in
1HFig. 2.7 can be used by way of option.

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
