WAGNER TITANUS User Manual

TITANUS MICRO·SENS
®
Technical Description
MS_A_02-a-en-e Data: 01/09 2 – 9
2.2.3 Detector Box
External detector boxes can be used in the pipe system in connection
with the TITANUS MICRO·SENS
®
smoke detection system.
Use The detector box is used …
z to create a two-detector or two-line dependency,
z to be able to locate the branch affected by smoke in multi-branch pipe
systems and/or
z to raise the reaction sensitivity in multi-branch pipe systems
Air aspiration
Aspiration apertures
Aspiration pipe
Smoke detection system
Detector box
Air outlet
Detection
inc l. air flow sensor
and Aspiration unit
Detection-
unit

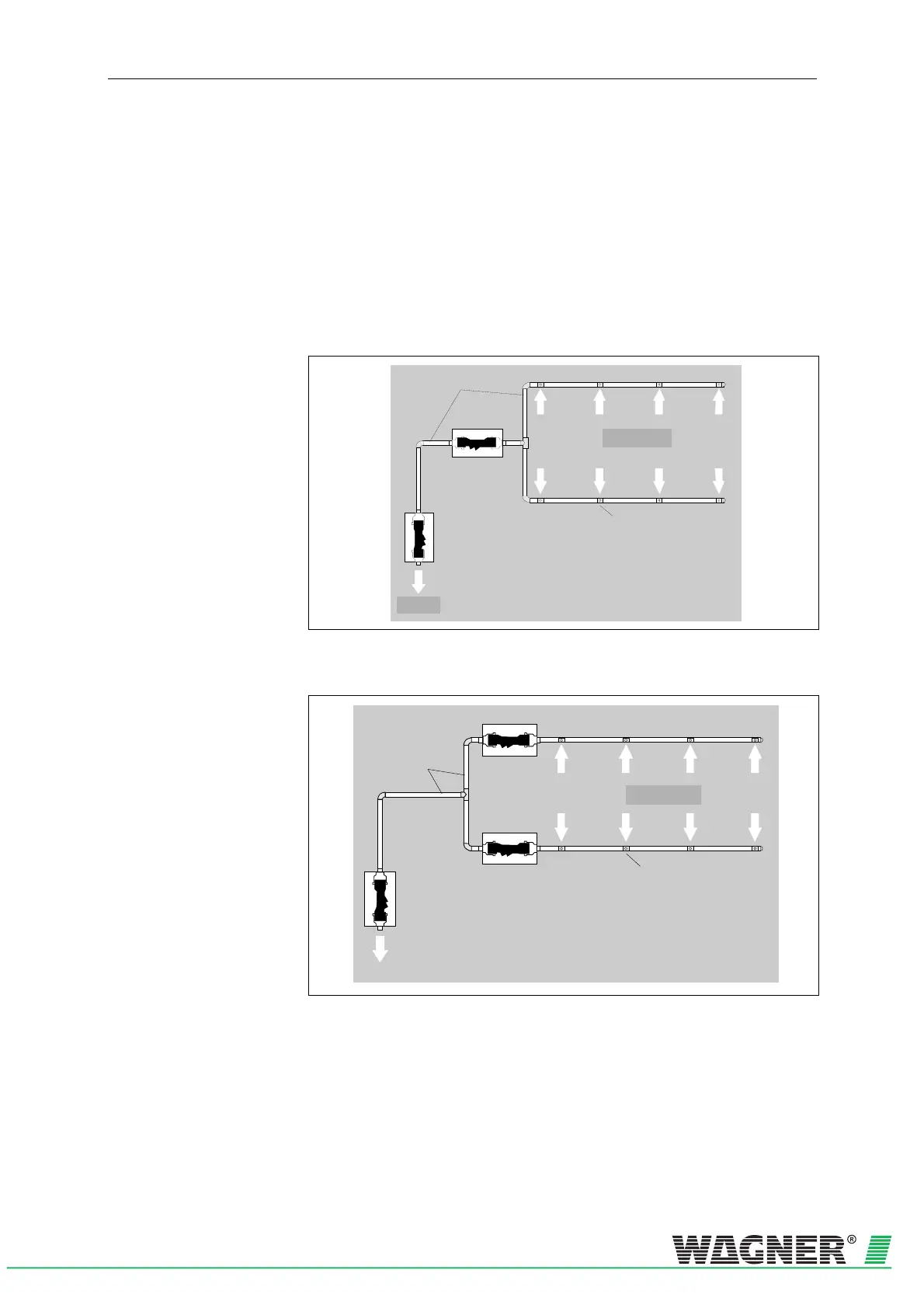

Fig. 2.10: TITANUS MICRO·SENS
®
function principle with detector box for two-detector or
two-line dependency
Air aspiration
A
spiration apertures
Detector box
Detection-
unit
Detector box
Detection-
unit
Aspiration pipe
Air outlet
Smoke detection system
Detection
incl. air flow sensor
and Aspiration unit
Fig. 2.11: TITANUS MICRO·SENS
®
function principle with detector box for locating and rais-
ing reaction sensitivity

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
