The TITANUS MICRO·SENS
®
detector box comprises the following com-
ponents:
Device base
z Connections for 25 mm aspiration pipe (in and out)
z Cable feeds
z Potential-free contacts for connection to a FAS
Detection unit
z Sensitive detection with the latest technology according to the principle
of optical scattered light detectors
z Optical displays for smoke level, main alarm, action alarm, fault, op-
eration
z Infrared interface for diagnostics
1
4
5
5
5
5
3
2
5
5
5
5
3

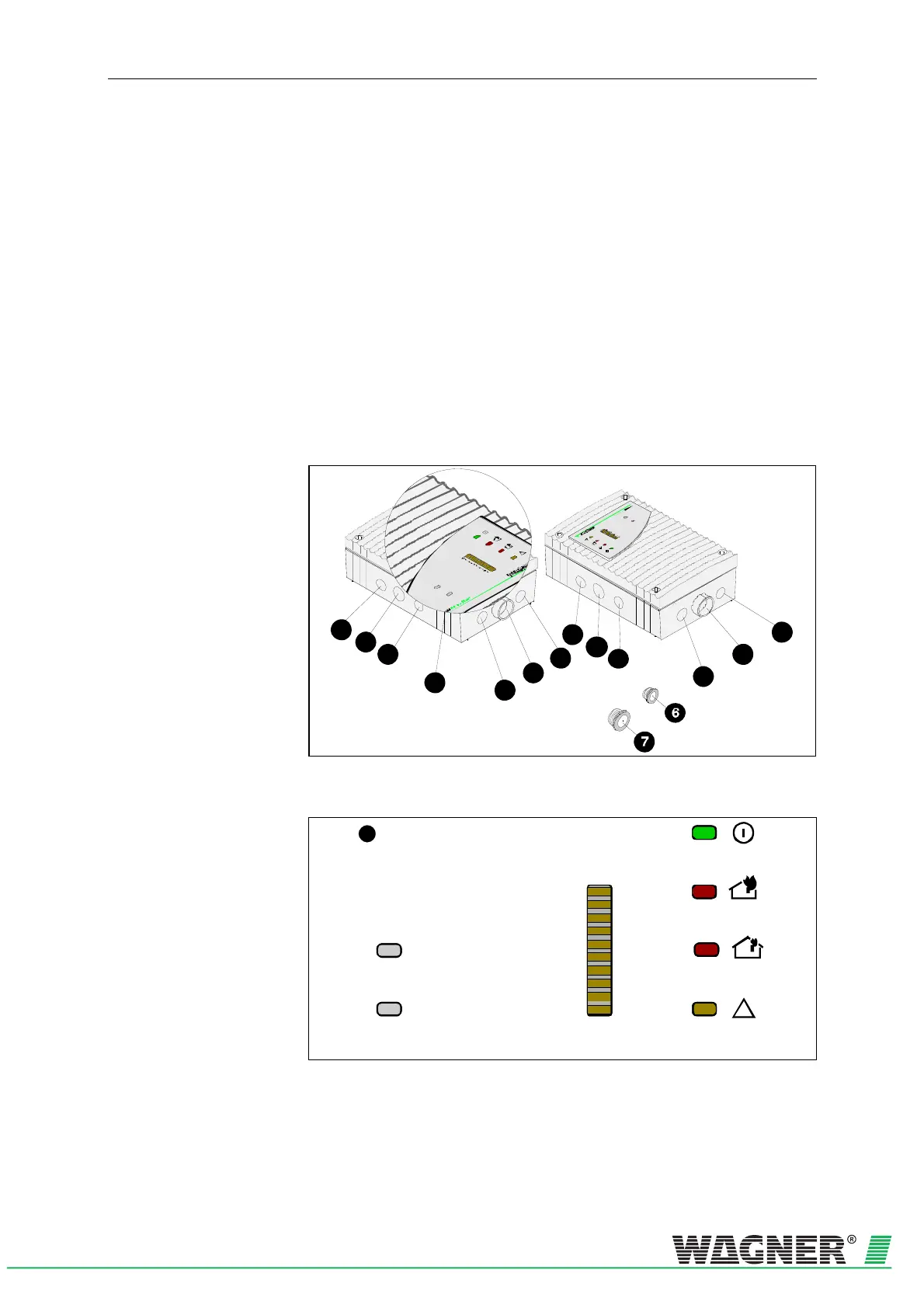

Fig. 2.12: Detector box displays and connections (For explanation see table, next page)
Operation
Fault
Fire alarm
Smoke level
1
10
9
8
7
6
5
4
3
2
1
Infrared
interface
Action alarm
Fig. 2.13: Display variant, detector box with smoke level
(For explanation see number 1 in table)

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
