TITANUS MICRO·SENS
®
Installation
MS_A_05-en-e Data: 01/09 5 – 9
5.4 Connection to CFDU, with reset button
Faul t+
Faul t-
L1-
L1+
0V
1a
2a
3a
4a
5a
6a
7a
8a
1b
2b
3b
4b
5b
6b
7b
8b
+24V
R
A
Indicator bus
Reset button
Line end or line
outlet to next device
Resistances depend
on the FAS connected
R
E
1
1a
2a
3a
4a
5a
6a
7a
8a
1b
2b
3b
4b
5b
6b
7b
8b
R
A
R
E
Indicato r bus
R
A
R
E
R
A
L1+
L1-
Principle of alarm connection
0V
+24V
Device 1 Device n

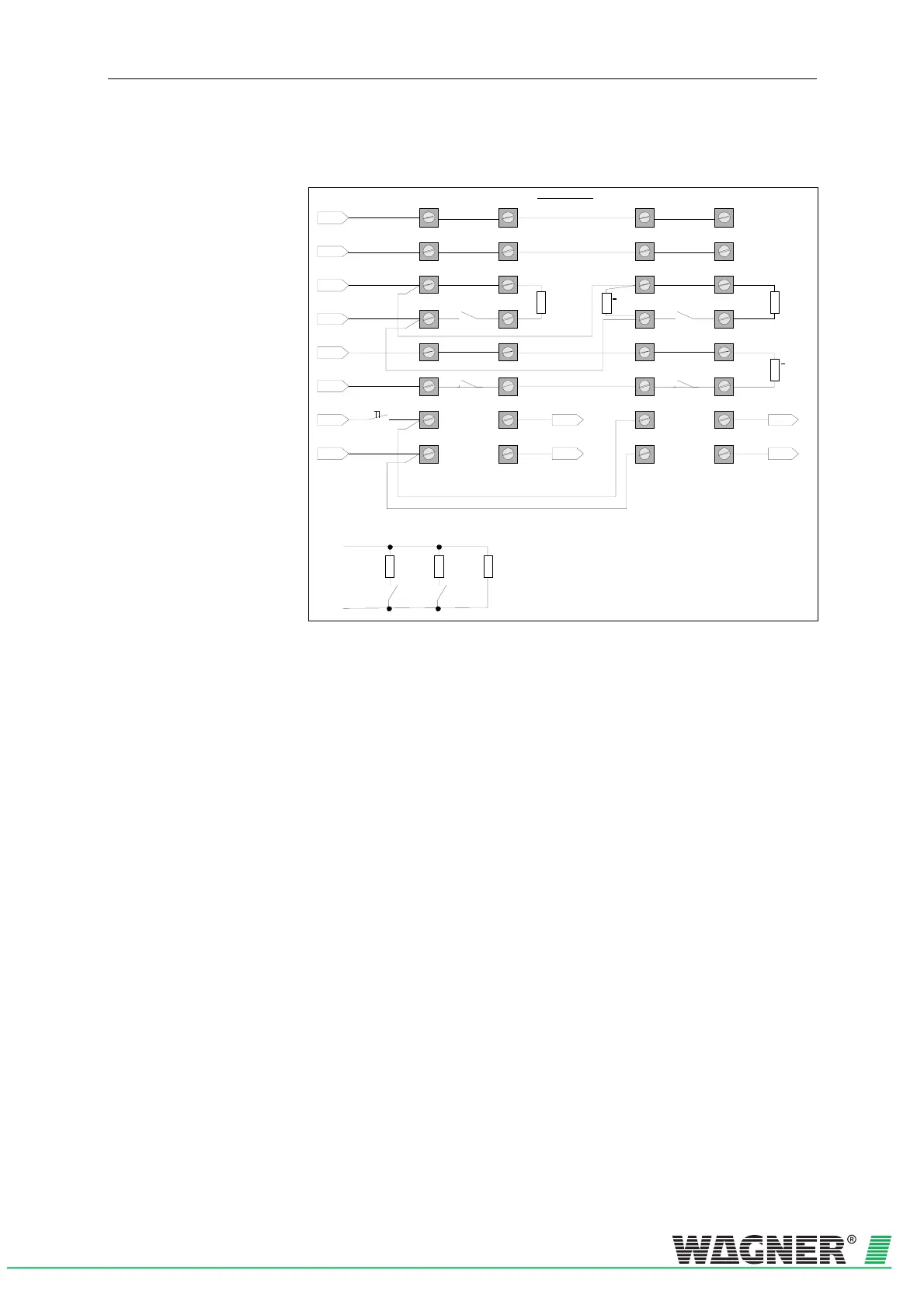

Fig. 5.9: Example of connecting TITANUS MICRO·SENS
®
to a CFDU and reset button
