4.3 Special project planning
4.3.1 Project planning for individual aperture monitoring
The following system parameters apply to the detection of an individual
or a particular number of blocked aspiration apertures, depending on
pipe configuration.
The specifications according to Chapter 4.2 apply to project planning.
The following limit values and aperture diameters should also be taken
into account. Additional accessories (air filters, condensation separators,
etc.) can influence the maximum pipe length.
4.3.1.1 I-Pipe system
1 Pipe system
TITANUS
MICRO· SENS
®
A
B
CDE
T
I
T
A
N
U
S
®
d

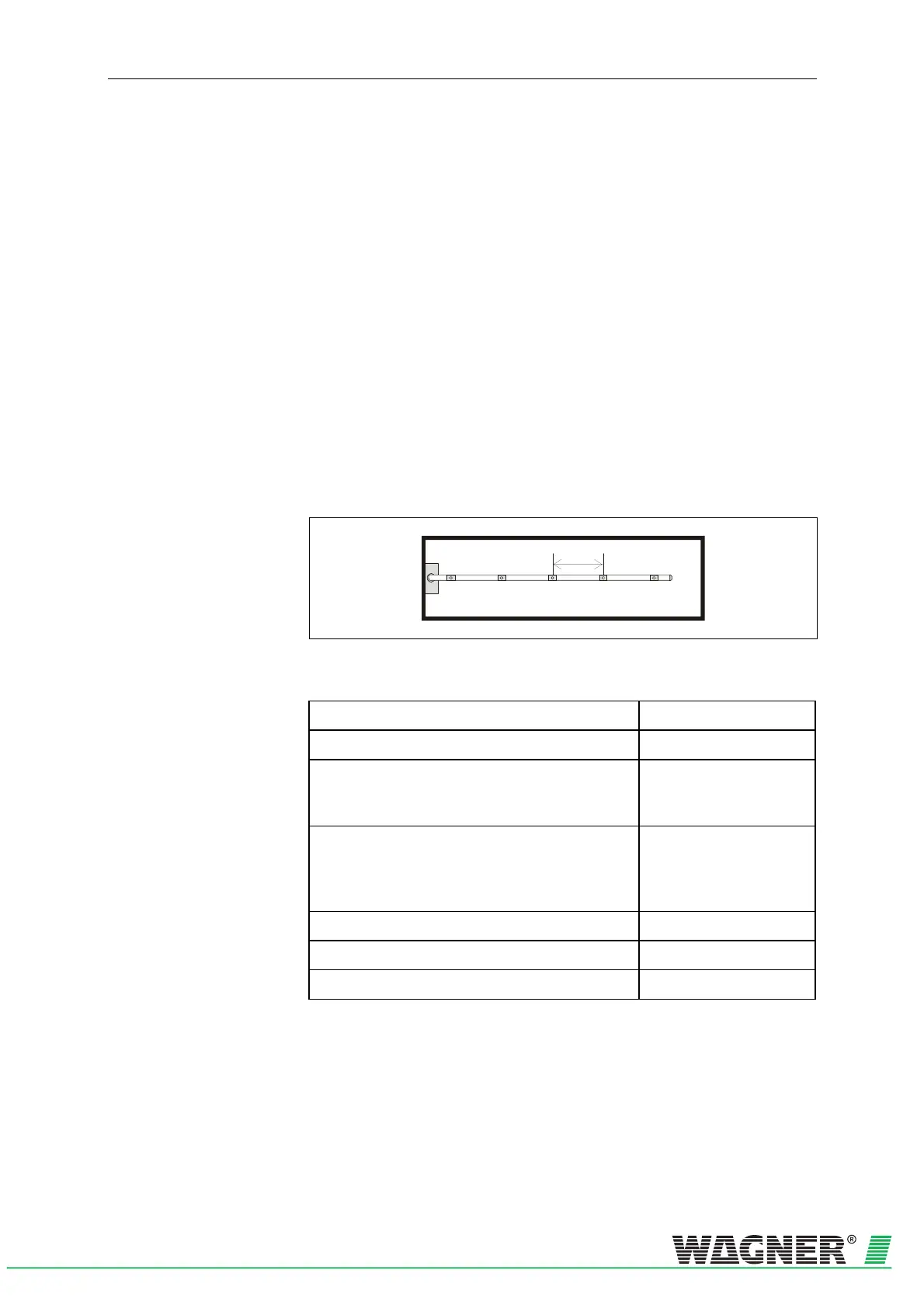

Fig. 4.7: I-Pipe system for area protection
Limit values
min. distance TITANUSP
®
P
– 1
st
aspiration aperture 2 m
max. distance TITANUSP
®
P
– 1
st
aspiration aperture 20 m
max. overall pipe length per pipe system
pipe ∅ 25 mm plus
pipe ∅ 12 mm
40 m
5 x 3 m
max. overall pipe length per pipe system with a ventila-
tor voltage <10.5 V
pipe ∅ 25 mm plus
pipe ∅ 12 mm
30 m
5 x 3m
min. distance between 2 aspiration apertures (d) 4 m
max. distance between 2 aspiration apertures (d) 10 m
max. number aspiration apertures (n) per pipe system 5 no.

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
