TITANUS MICRO·SENS

Technical Description

MS_A_02-b-en-e Data: 01/09 2 – 21

2.3.5 Air return for pressure differences and air pollution

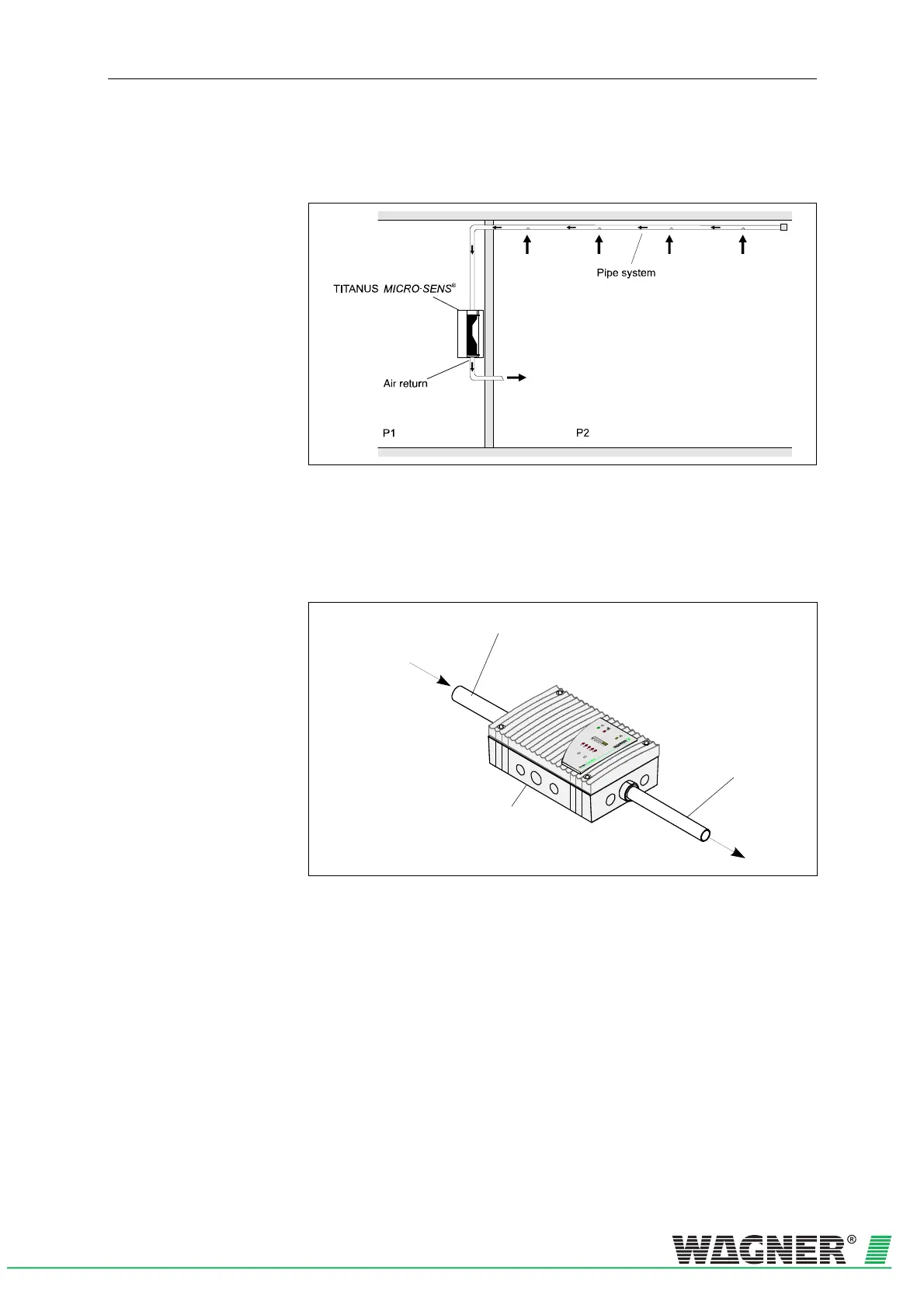

Fig. 2.28: Principle of air return in the TITANUS MICRO·SENS

If the TITANUS MICRO·SENS

and the pipe system are installed in two

areas P1 and P2 with different air pressures, the air drawn off has to be

returned to the pipe system pressure range (see

2HFig. 2.28). Returning the

air can also avoid air pollution (e.g. smells) in neighbouring rooms.

TITANUS

MICRO · SENS

Air return

Air sampling pipe

Fig. 2.29: TITANUS MICRO·SENS

with air return

The air return pipe is mounted in the conical pipe plug-in connection for

the TITANUS MICRO·SENS

air return (see 3HFig. 2.29). As the air return

pipe sits perfectly in the air return pipe, a firm hold is guaranteed.
