4.3.2 Simplified pipe design
Simplified pipe design is used for equipment protection and in areas with
small dimensions. The advantage of this design is the unified diameters
of the aspiration apertures.
For the project planning’s, the specifications according to chapter 4.2 ap-
ply. Furthermore, the following limit values and opening diameters have
to be considered. Additional accessories (air filter, steam traps etc.) can
influence the maximum pipe length.
4.3.2.1 I-Pipe system
1 Pipe system
TITANUS
MICRO·SENS
P
®
P
d
TITANUS MICRO· SENS
®
E
D
C
B
A
10
9
8
7
6
5
4
3
2
1
TITANUS
®

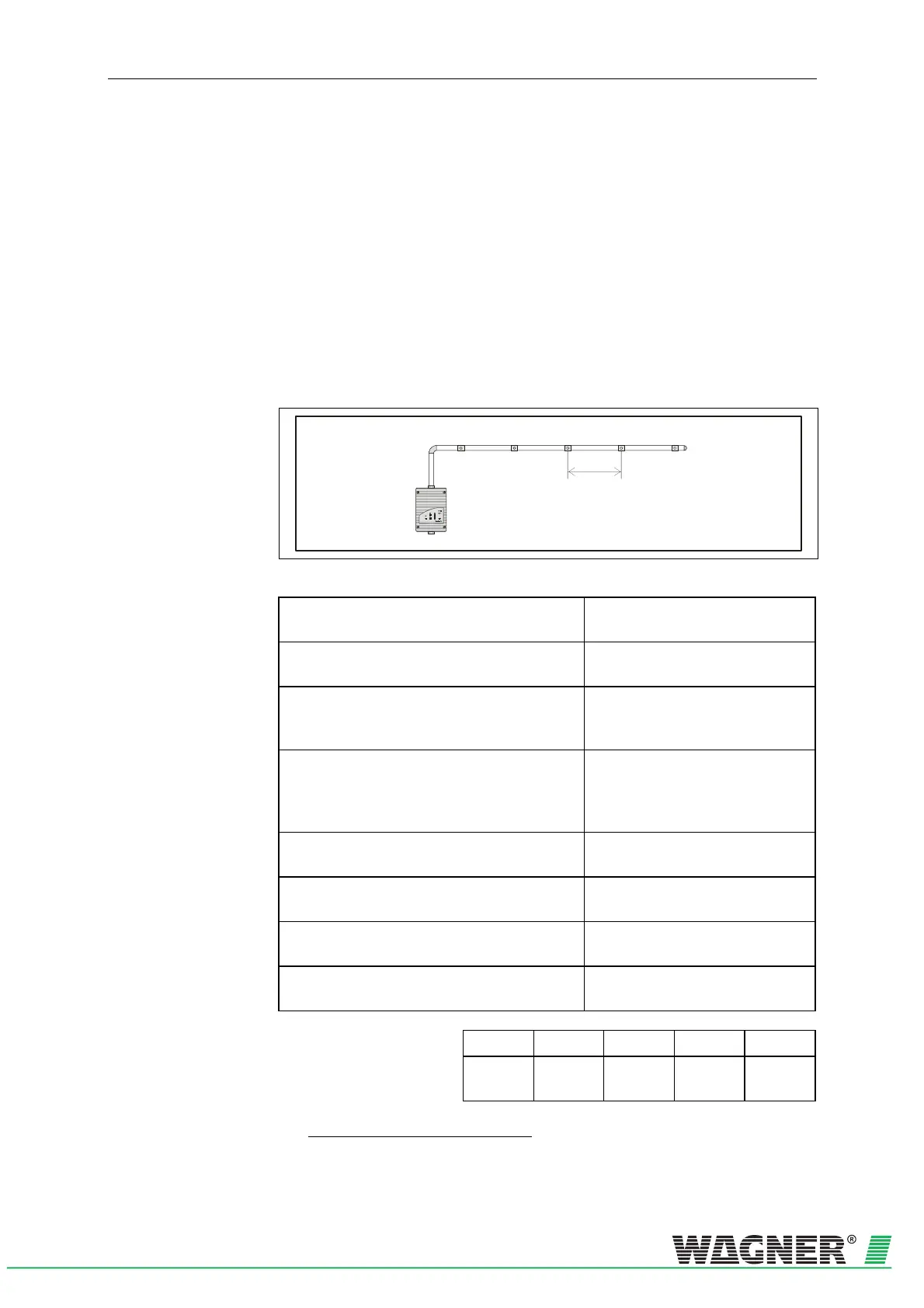

Fig. 4. 10: I-Pipe system, e.g. for equipment protection
Limit values
min. distance
TITANUS
P
®
P
– 1
st
aspiration aperture 2 m
max. distance
TITANUS
P
®
P
– 1
st
aspiration aperture 20 m
max. pipe length per pipe system
Pipe ∅ 25 mm plus
pipe ∅ 12 mm
40 m
5 x 3 m
max. overall pipe length per pipe system with a ven-
tilator voltage of <10.5 V
Pipe ∅ 25 mm plus
pipe ∅ 12 mm
30 m
5 x 3 m
max. number aspiration apertures (n)
per pipe system 5 no.
minimum distance
between the aspiration apertures (d) 0,1 m
maximum distance
between the aspiration apertures (d) 4 m
minimum distance for fire site location
between the aspiration apertures (d) 3 m
Aspiration apertures
Number of apertures 1 2 3 4 5
∅ of all aspiration apertures
in mm
TP14F
15
PT) 6,8 4,6 4,0 3,6 3,4
TP
15
PT Opening diameter of the aspiration reduction film

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
