TITANUS MICRO·SENS
®
Installation Pipe System
MS_A_06-en-e Data: 01/09 6 – 7
6.3 Ceiling lead through

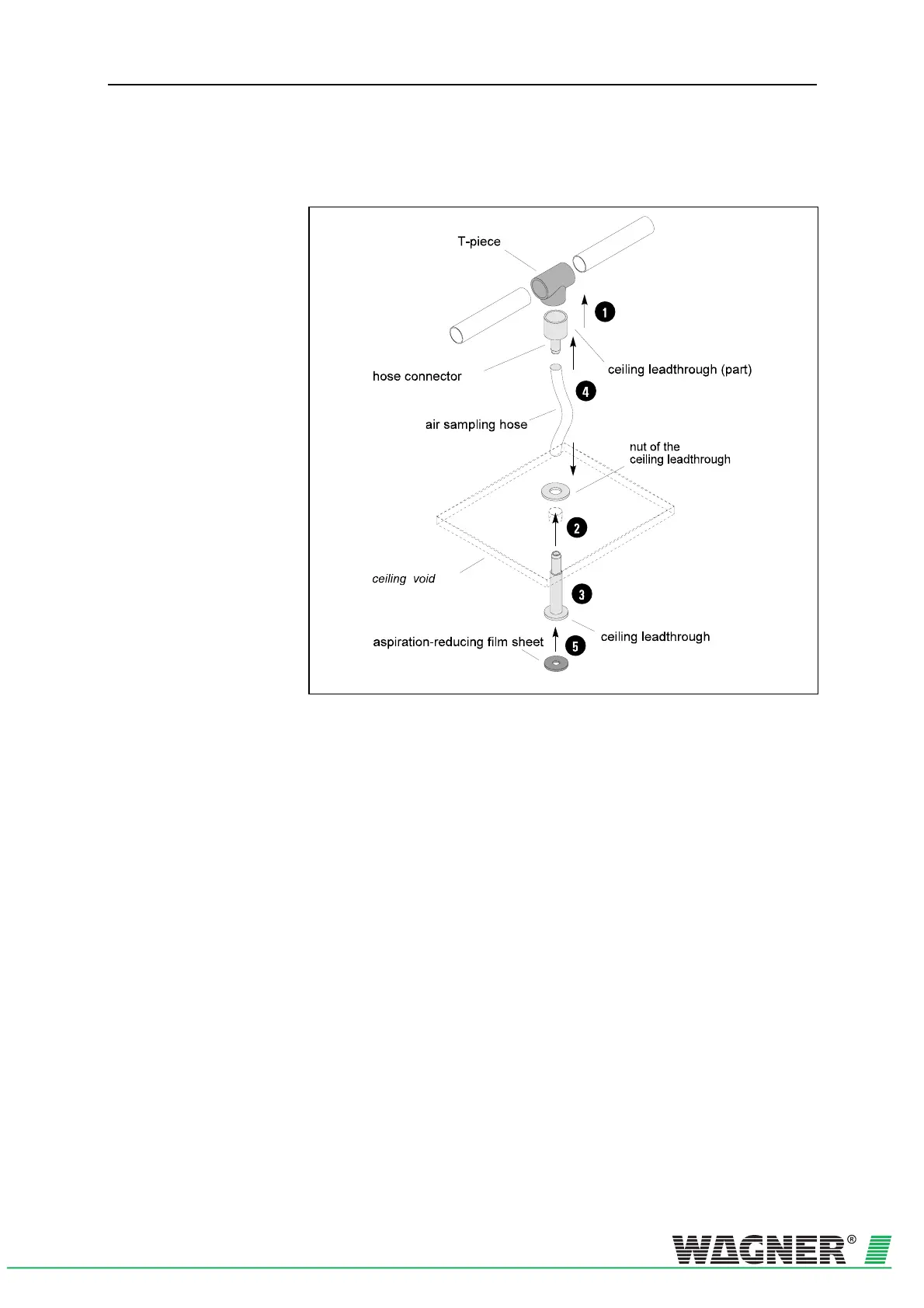

Fig. 6.4: Installation of ceiling feed-through
To install the ceiling feed-through use the following steps:
n
Before gluing remove dirt and grease with the recommended clea-
ner.
o
Glue the hose connector to the corresponding T-piece with Tangit
glue.
p
For each ceiling feed-through drill a hole of ∅ 13mm through the
false ceiling.
q
Install the lead-through by first removing the nut, pushing the hose
sleeve from the bottom through the bore hole and then re-placing
and tightening the nut above the false ceiling.
r
Determine the required length and cut the air sampling hose. Attach
the hose to the sleeve of the ceiling feed-through and the hose con-
nector at the T-piece of the air sampling pipe. If necessary soften
the hose ends with a hot air fan.
s
Stick the correct aspiration-reducing film sheet (according to pipe
design guidelines) to the ceiling feed-through.
