WAGNER TITANUS User Manual

TITANUS MICRO·SENS
®
Pipe Design
MS_A_04-en-e Data: 01/09 4 – 29
4.3.2.3 M-pipe system
1 Pipe system
TITANUS
MICRO·SENS
P
®
P
TI TAN US
®
d

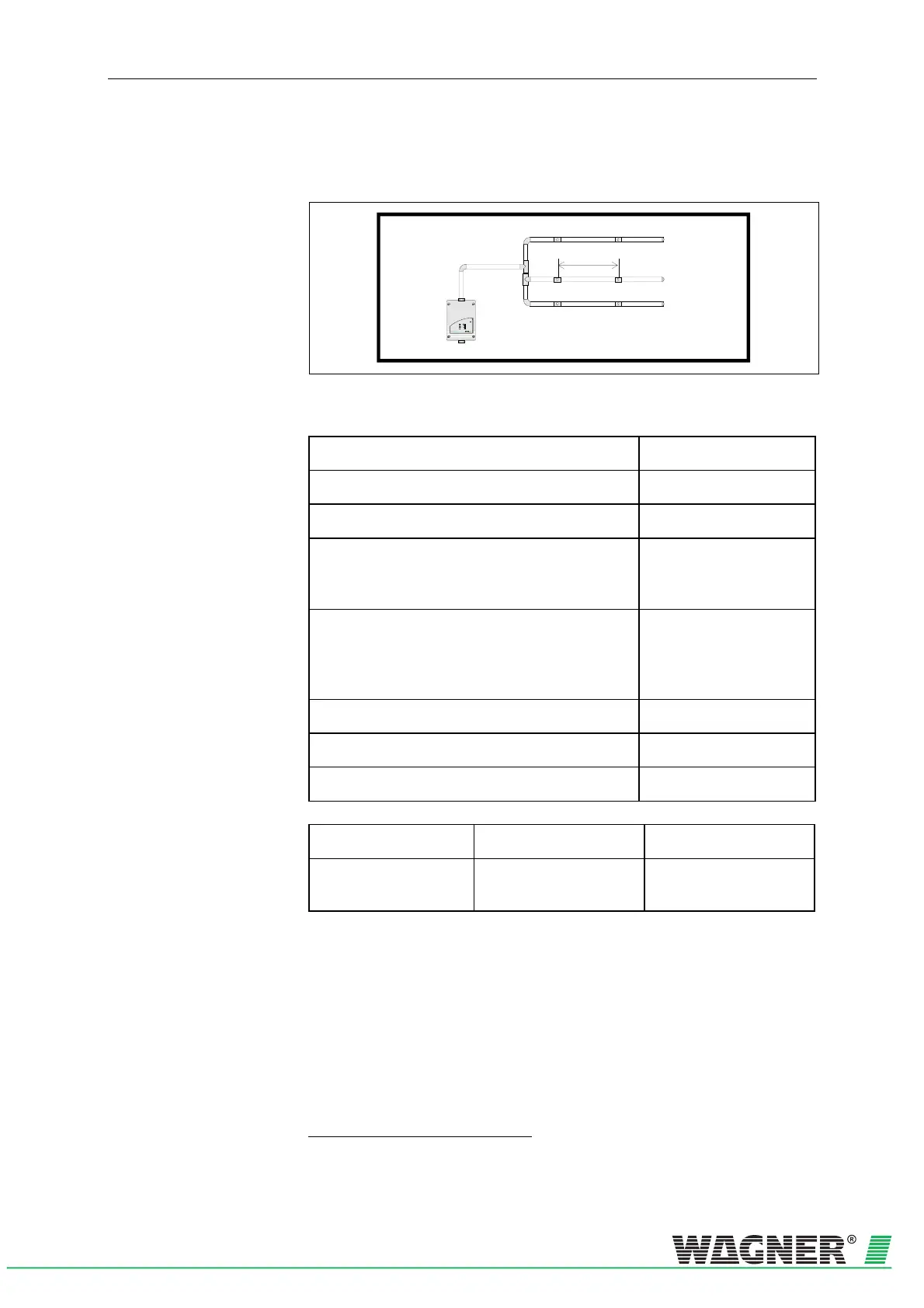

Fig. 4. 12: M-Pipe system, e.g. for equipment protection
Limit values
min. distance TITANUSP
®
P
– T piece 2 m
max. distance TITANUSP
®
P
– T piece 20 m
max. branch length 16,5 m
max. overall pipe length per pipe system
Pipe ∅ 25 mm plus
pipe ∅ 12 mm
50 m
8 x 3 m
max. overall pipe length per pipe system with a ventila-
tor voltage of <10.5 V
Pipe ∅ 25 mm plus
pipe ∅ 12 mm
40 m
8 x 3 m
max. number of aspiration apertures (n) per pipe system 6 no.
minimum distance between the aspiration apertures (d) 0,1 m
maximum distance between the aspiration apertures (d) 4 m
Aspiration apertures
Number of apertures 3 6
∅ of all aspiration
apertures in mm
TP16F
17
PT) 5,0 3,6
TP
17
PT Opening diameter of the aspiration reduction film

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
