2.3.7 Steam trap for humid areas
TITANUS
®
steam trap
(max. 16 bar)
(optional)
45º elbow
45º elbow

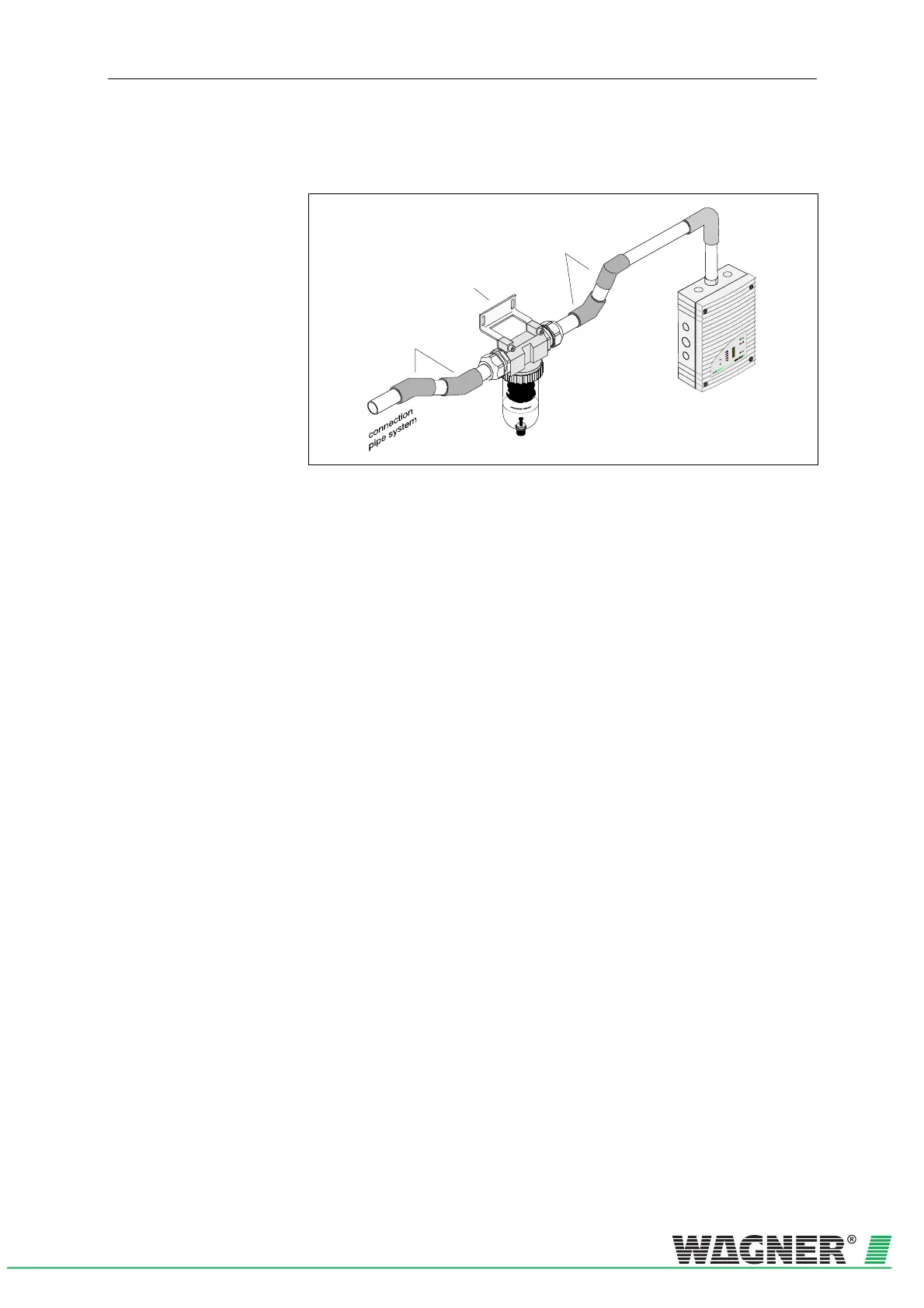

Fig. 2.31: Steam trap to eliminate water vapour from the pipe system and to collect the con-
densate from the pipe system
If the TITANUS MICRO·SENS
®
is operated in environments where
condensate can form in the pipe system, then a condensate trap is used.
To collect the condensate, the steam trap is fitted at the lowest point of
the pipe system, between the air filter and the smoke detection system.
Using 45° angles gives optimum wall distance.
The steam trap can be operated in a temperature range of 0°C to
+50°C. The sinter filter in the condensate trap has a pore width of 50 µm
and additionally absorbs coarse dust particles.
The condensate trap is used in the following areas:
Areas of application
 Areas with severely oscillating temperatures and high air humidity
 External areas
 Sauna areas

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
