WAGNER TITANUS User Manual

TITANUS MICRO·SENS
®
Pipe Design
MS_A_04-en-e Data: 01/09 4 – 17

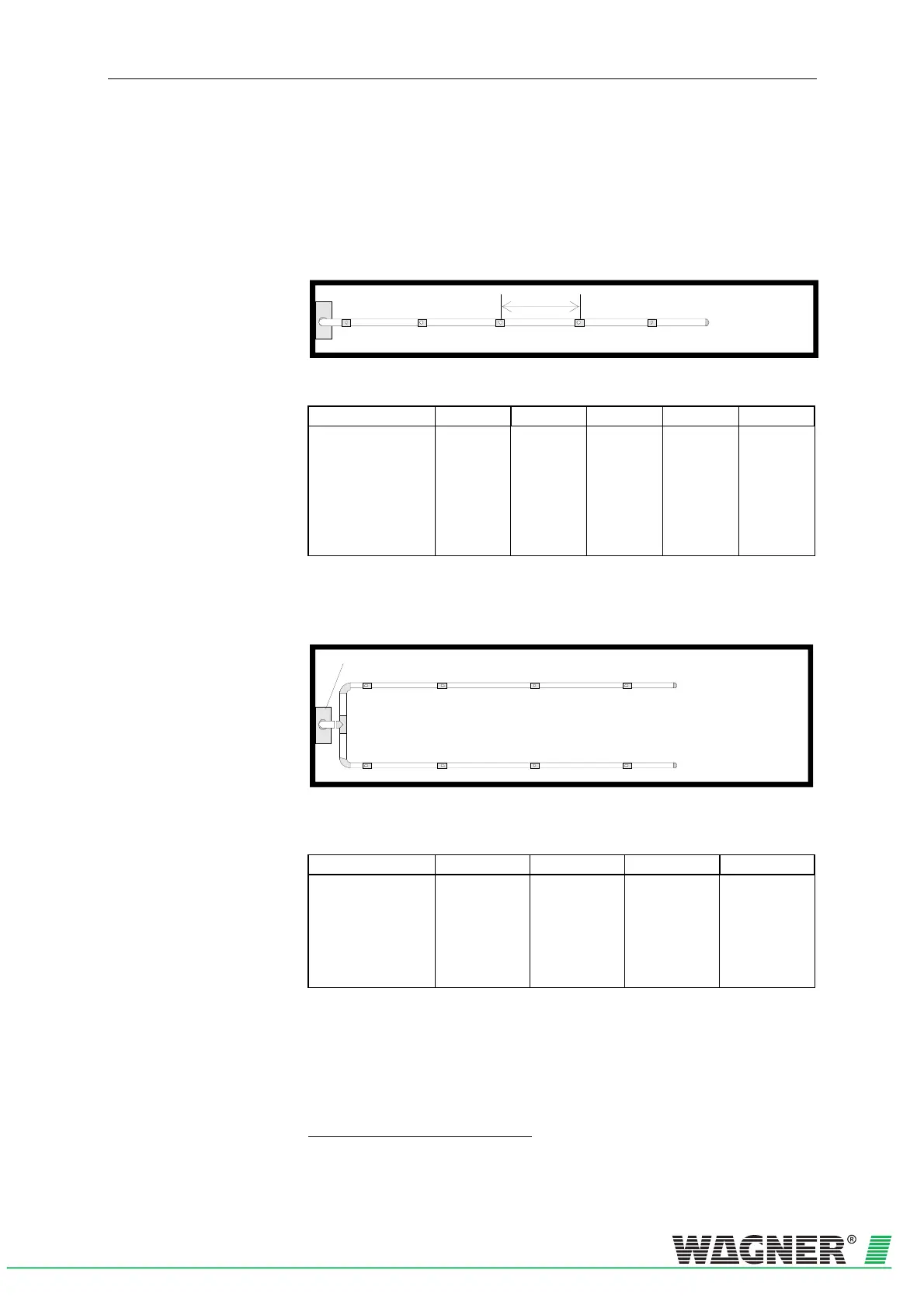

4.2.4 Aperture diameter
The aperture diameters of the aspiration apertures can be found in the
corresponding table for the respective pipe configuration:
I-Pipe
A
B
CDE
T
I
T
A
N
U
S
d
Fig. 4.3: I –Pipe system
Aspiration apertures
Number of apertures
1 2 3 4 5
Sampling aperture ∅
in mm
2F
3)
A 6.8 5.0 4.2 3.4 3.0
B
—
5.0 4.2 3.6 3.2
C
— —
4.4 3.8 3.4
D
— — —
4.4 3.6
E
— — — —
4.4
U-Pipe
A
B
CD
TITANUS
®
Fig. 4.4: U –Pipe system
Aspiration apertures
Number of apertures
2 4 6 8
Sampling aperture ∅
in mm
3
)
A 6.0 4.2 3.4 3.0
B
—
4.6 3.6 3.0
C
— —
4.4 3.6
D
— — —
4.0
3
Press cut diameter in aspiration-reducing film sheet

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
