WAGNER TITANUS User Manual

TITANUS MICRO·SENS
®
Pipe Design
MS_A_04-en-e Data: 01/09 4 – 23

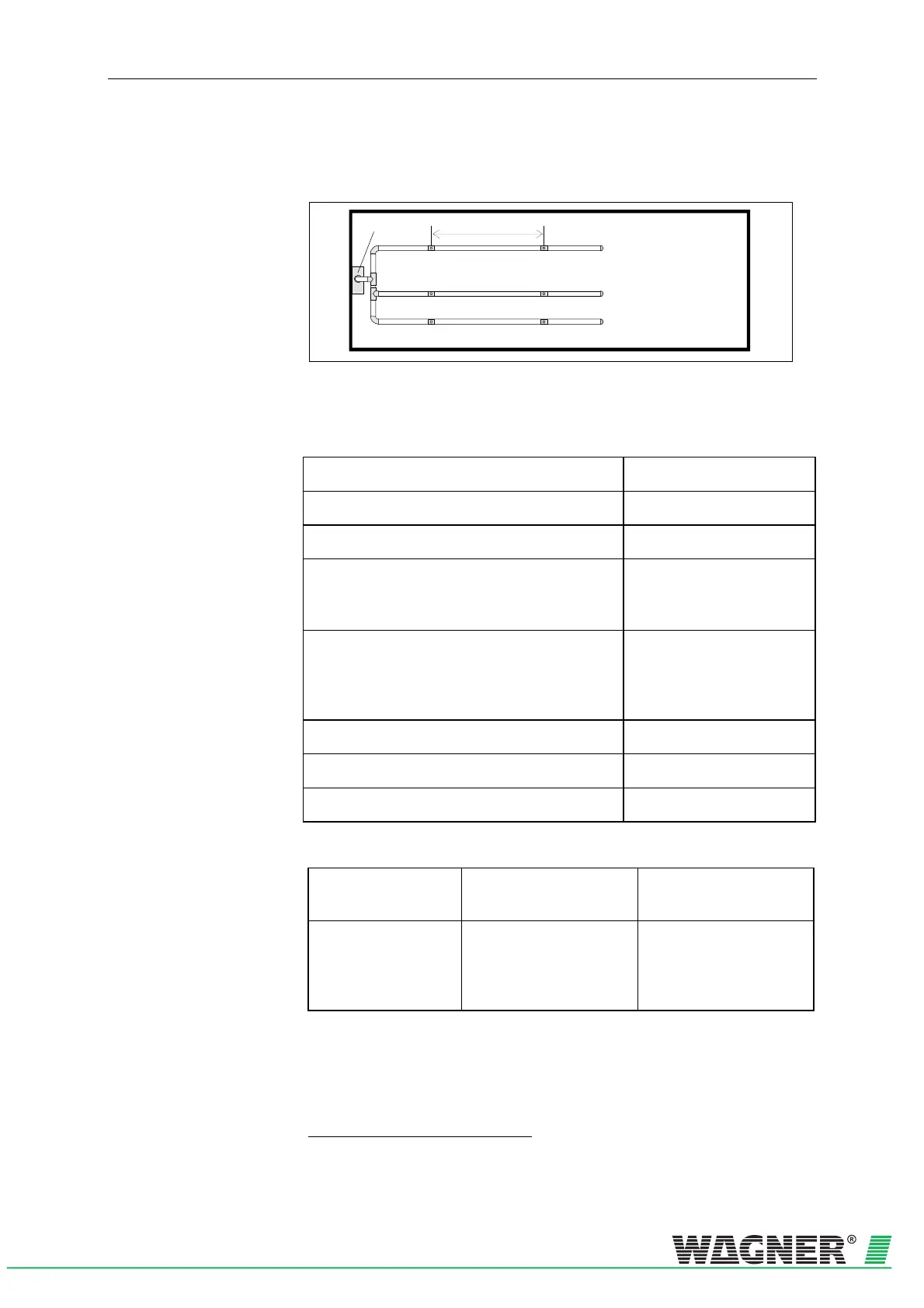

4.3.1.3 M-Pipe system
1 Pipe system
TITANUS
MICRO ·SENS
®
d
TITANUS
®
AB
Fig. 4.8: M-Pipe system for area protection
Limit values
min. distance TITANUSP
®
P
– T piece 2 m
max. distance TITANUSP
®
P
– T piece 20 m
max. branch length 16,5 m
max. overall pipe length per pipe system
Pipe ∅ 25 mm plus
pipe ∅ 12 mm
50 m
8 x 3 m
max. overall pipe length per pipe system with a ventila-
tor voltage of <10.5 V
Pipe ∅ 25 mm plus
pipe ∅ 12 mm
40 m
8 x 3m
min. distance between 2 aspiration apertures (d) 4 m
max. distance between 2 aspiration apertures (d) 10 m
max. number aspiration apertures (n) per pipe system 6 no.
Aspiration apertures
Number of apertures
per pipe system
3 6
∅ Aspiration aperture in
mm
TP9F
10
PT)
A
B
5,0
—
3,6
3,8
TP
10
PT Opening diameter of the aspiration reduction film

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
