WAGNER TITANUS User Manual

Commissioning TITANUS MICRO·SENS
®
7 – 2 Data: 01/09 MS_A_07-en-e
7.1.1 Plug and Play Commissioning
With Plug and Play commissioning the standard settings are not
changed.
Air flow adjustment happens automatically when the detection unit is put
in place.
If air flow adjustment is to happen automatically when the detection unit
is inserted, the Jumper X4 (PIN 1,2 or PIN 2,3) must be changed.
When the TITANUS MICRO·SENS
®
is initialising, the green operating
display flashes. When initialising is complete, the operating display
changes to a permanent light.
During the initialising phase, the TITANUS MICRO·SENS
®
air flow should
not be influenced.
PIN 1 and 2
PIN 2 and 3
X4
Device base
Detection unit

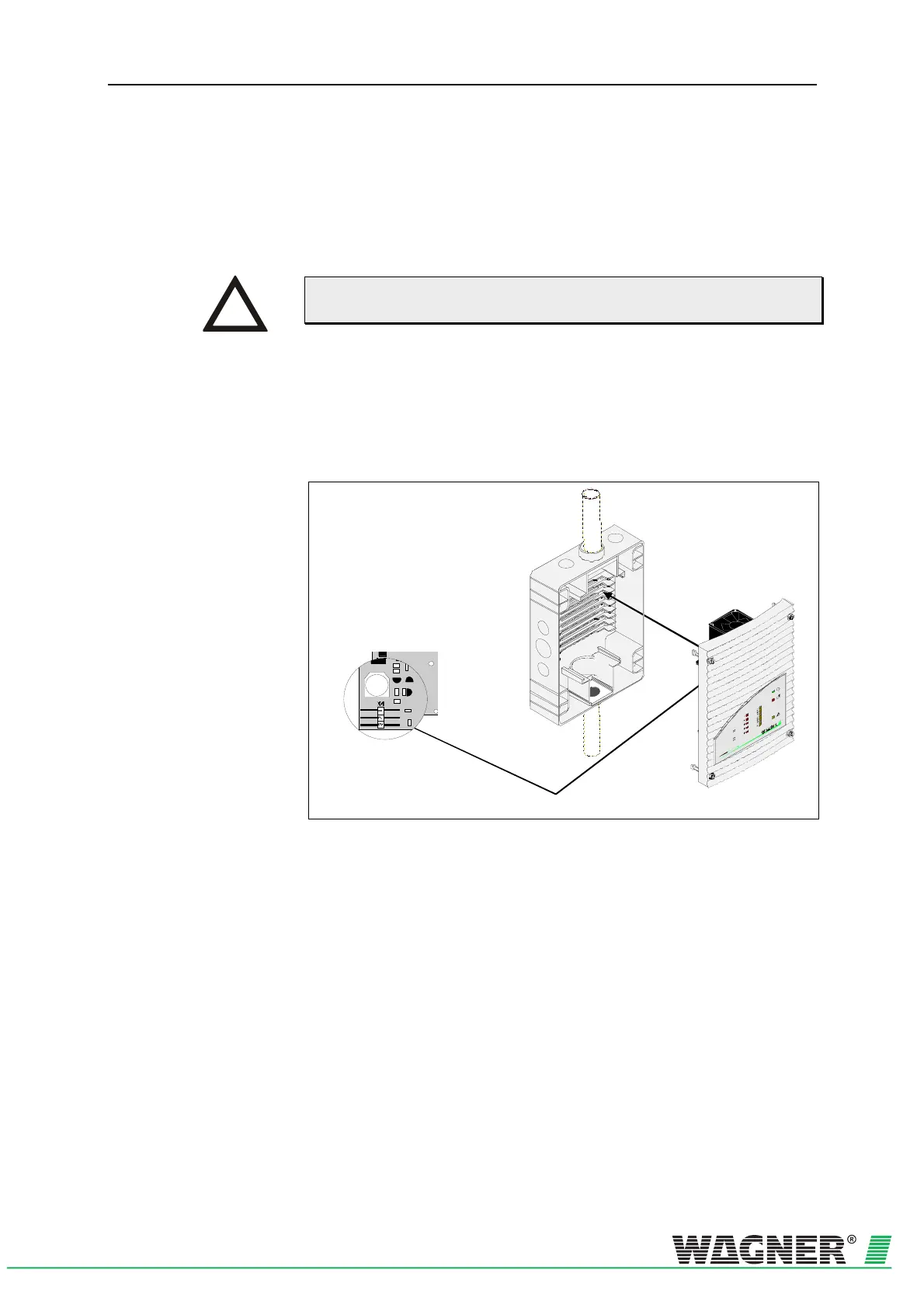

Fig. 7.2:Inserting the detection unit into the device base
7.1.2 Commissioning with the diagnostics tool
If the diagnosis tool is used for commissioning, the pre-set settings can
be changed.
Air flow adjustment can then be carried out in either an air pressure-
dependent or an air pressure-independent manner. Air flow initialising is
started using the diagnosis tool. During initialising the green operating
display flashes. When initialising is complete, the operating display
changes to a permanent light.
During the initialising phase, the TITANUS MICRO·SENS
®
air flow should
not be influenced.
When commissioning is completed, a test record should be generated
using the diagnosis tool.
INSTRUCTION

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
