WAGNER TITANUS User Manual

Installation TITANUS MICRO·SENS
®
5 – 2 Data: 01/09 MS_A_05-en-e
5.2 Installation site
5.2.1 Fitting the TITANUS MICRO·SENS
®
air sampling
smoke detector
When choosing the installation site, ensure that the notices can be easily
seen.
When choosing the installation site, ensure that it is not within a space
where doors open.
Air return
Aspiration pipe
Aspiration
from above
min. 10 cm distance
from other objects
Aspiration
from below
Aspiration pipe

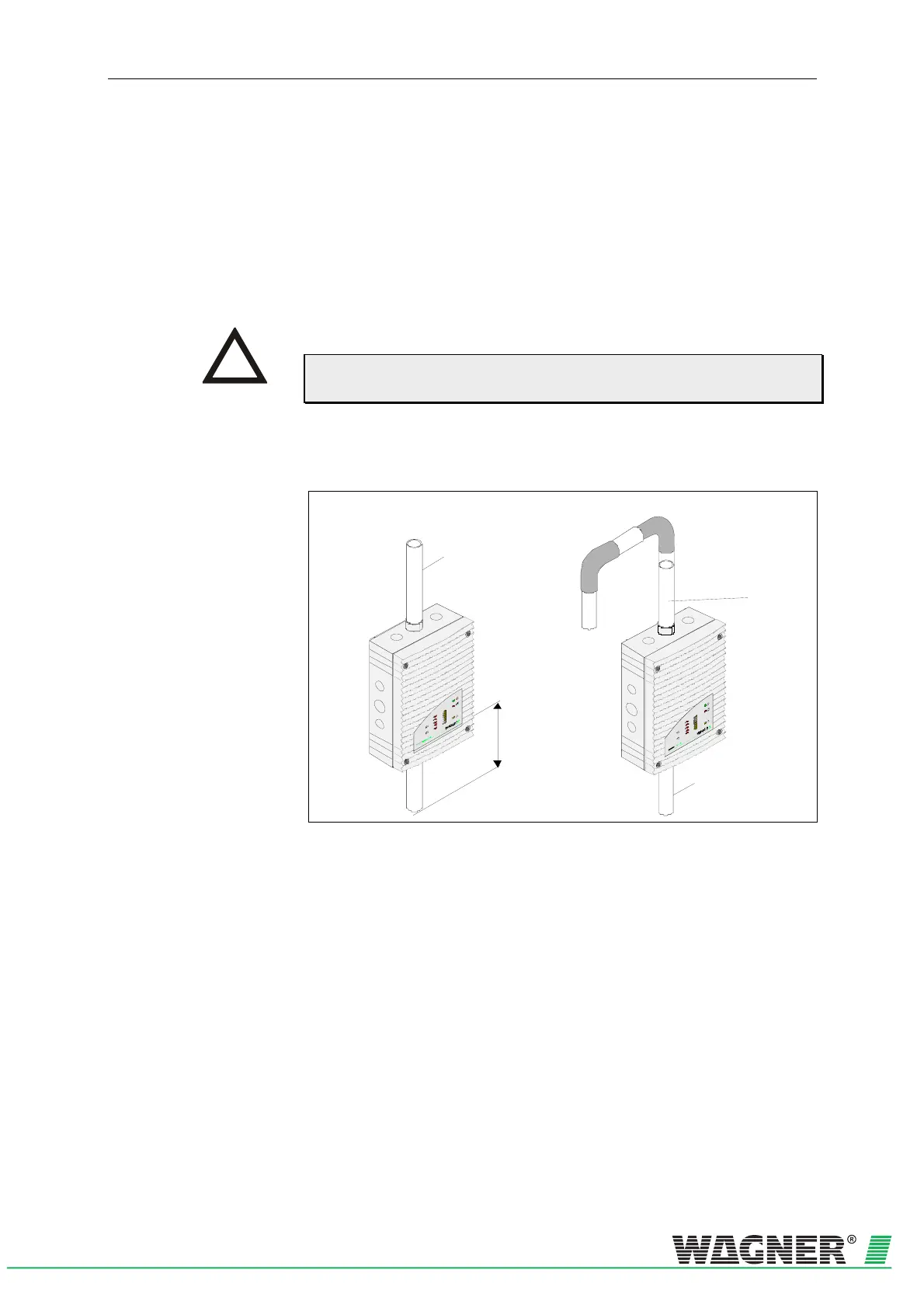

Fig. 5.1: Installation of TITANUS MICRO·SENS
®
Aspiration
from above
Ensure that the air outlet from the aspirating smoke detector is not blocked.
Maintain a distance of at least 10 cm between the air outlet from the TITA-
NUS MICRO·SENS
®
and surrounding objects (e.g. wall).
INSTRUCTION

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
