WAGNER TITANUS User Manual

TITANUS MICRO·SENS
®
Installation Pipe System
MS_A_06-en-e Data: 01/09 6 – 15
6.9 Steam trap
steam trap
(max. 16 bar)
(option)
type KA-DN25
elbow 45°
elbow 45°
TITANUS
®

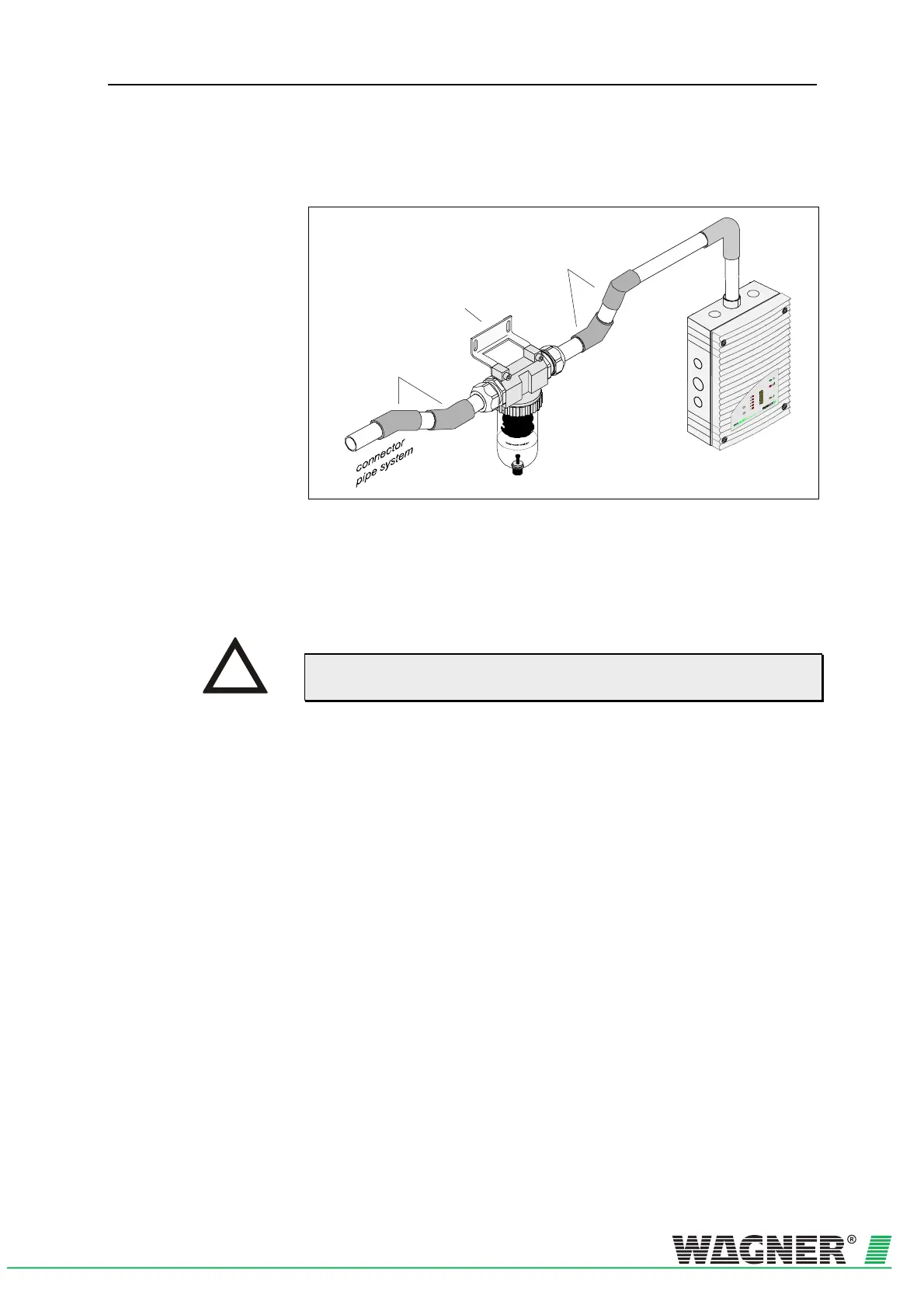

Fig. 6.12: Mounting of the steam trap to the pipe system
Install the steam trap at the lowest point in the pipe system, before the
air filter and the TITANUS MICRO·SENS
®
. Fit the steam trap to the pipe
system using the PG threaded joints.
Two 45º elbows are required on each connection end for the installation
of the steam trap to the pipe system.
Connection During installation take note of the direction of through flow (see direction
arrow on the steam trap housing).
1. Prepare the pipe system with in each case two 45° angles for the
connection to the steam trap and connect it to the PG threaded joints.
2. Fit the steam trap additionally with two screws and the bracket.
INSTRUCTION

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
