WAGNER TITANUS User Manual

TITANUS MICRO·SENS
®
Installation Pipe System
MS_A_06-en-e Data: 01/09 6 – 13
6.7 Noise suppressor
6
TITANUS
®
noise suppressor

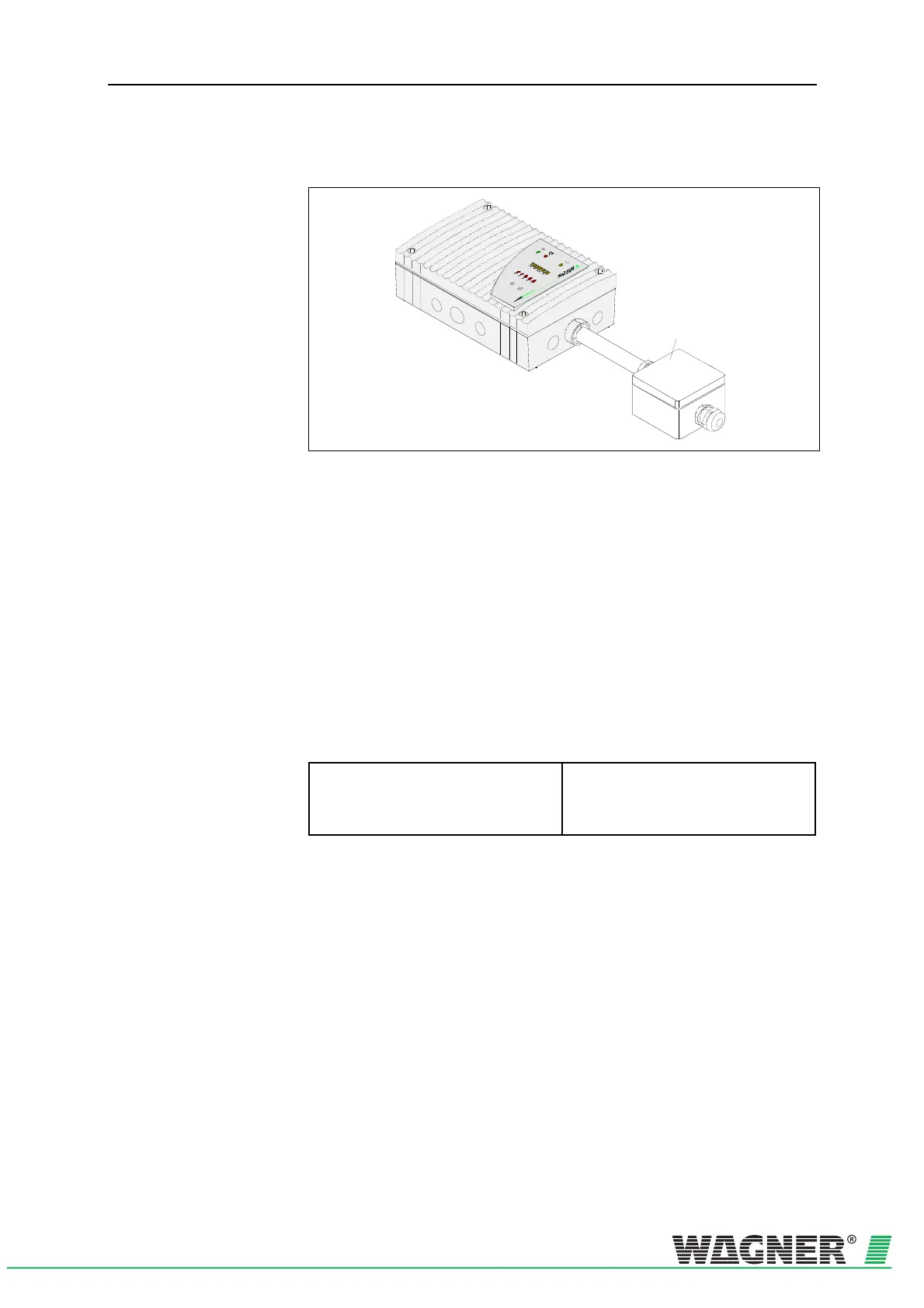

Fig. 6.10: Mounting of noise suppressors
n
Pass the pipe (∅ 25mm) through the opened feed-through in the
protection grid and fix it with the existing pipe collar in the air outlet
of TITANUS
®
. As the air return pipe fits exactly into the exit air open-
ing, a tight fit is ensured.
o
Use the sound suppressor’s PG29 screw connection in order to
connect the noise suppressor to the pipe.
p
When installing the absorbing duct, ensure that the direction of air
flow is shown at the side of the housing’s bottom part.
q
Screw the bottom part of the housing directly to the wall.
Installation material
Noise suppressor
cylinder or flat-head screws
– thread diameter: max. 4 mm
– head diameter: 5 to 7 mm

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
