WAGNER TITANUS User Manual

TITANUS MICRO·SENS
®
Technical Description
MS_A_02-b-en-e Data: 01/09 2 – 19
2.3.3 Ceiling duct for concealed mounting
Ceiling
Ceiling void
Pipe system
T-piece
Ceiling leadthrough,
complete
Air sampling hose
Knurled nut
Aspiration
Aspiration-reduction film
´

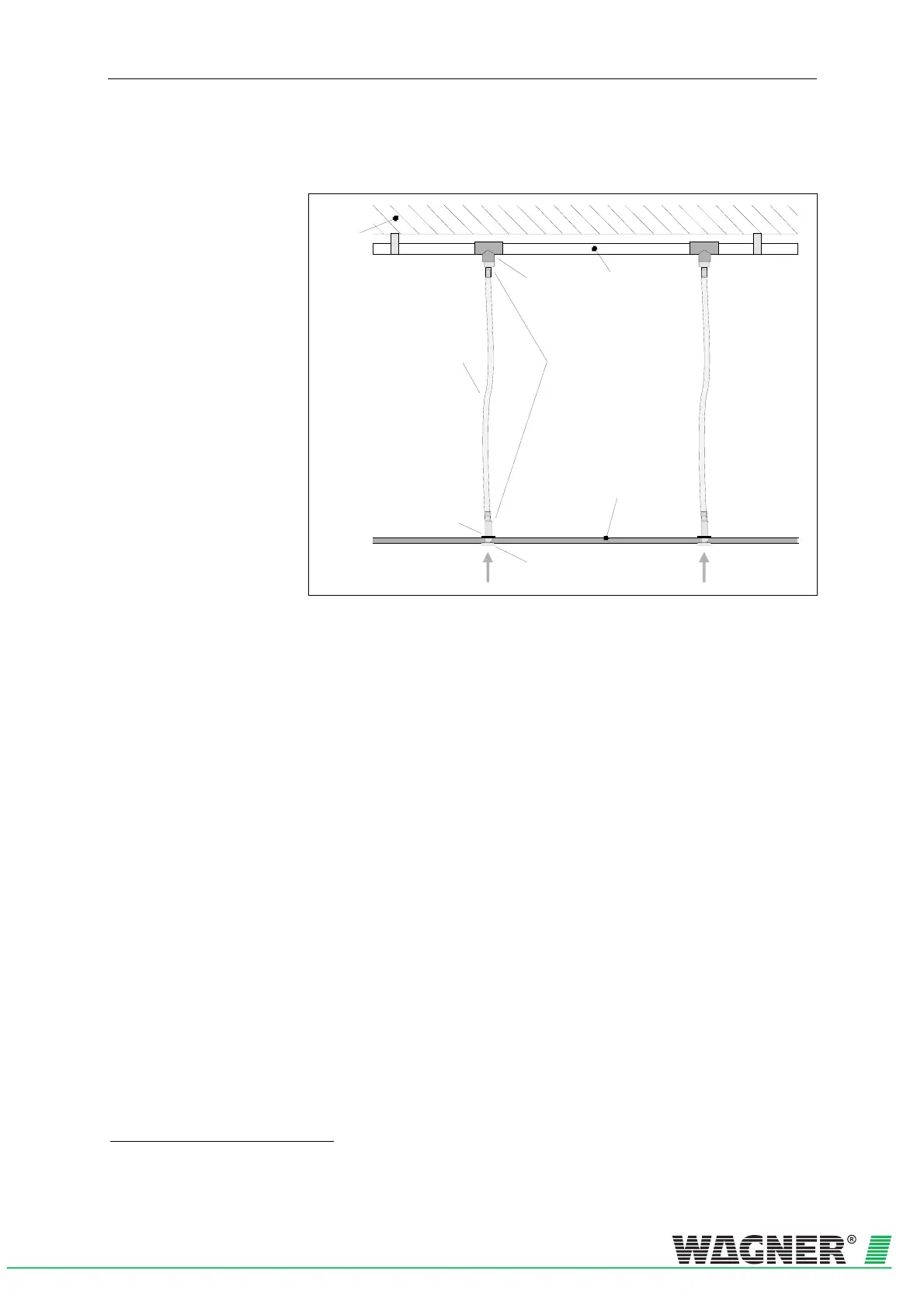

Fig. 2.26: Ceiling duct for intermediate ceilings
Aesthetics If room monitoring requires a concealed pipe system installation, then it
can be mounted in an intermediate ceiling. Ceiling ducts into the
intermediate ceiling are then used. The ceiling ducts are – in accordance
with design guidelines – fitted with aspiration reduction films with defined
aspiration apertures (see Chapter 4 "Design"). The ceiling ducts are then
connected to the pipe system via aspiration hoses (see
1HFig. 2.26).
If the length of these hoses is a maximum 3 m, then the design according
to Chapter 4 applies. If because of building circumstances lengths of
more than 3 m are required, the pipe system must be calculated
0F
3
.
The ceiling duct can be used for intermediate ceiling boards up to about
35 mm in strength. The aspiration reduction films are available in two
colours (pure white, RAL 9010 and papyrus white, RAL 9018) and also in
special colours on request.
3
The calculation is worked out by WAGNER

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
