WAGNER TITANUS User Manual

Installation TITANUS MICRO·SENS
®
5 – 8 Data: 01/09 MS_A_05-en-e
The installation plate is for all additional modules and prefabricated for
the parallel display switching power supply.
1
2
3
4
5
6
7
1
1
1
1
1
1
22
33
4
4
4
5
5
5
5
6
66
7
7
3/7
f
or up to 2 reset plates
AlgoRex line modules
Network module
Switching power supply for parallel display
Reset-and isolation button plate
Fixing base for cable connectors
Relay board RU-1 / RU-2
®

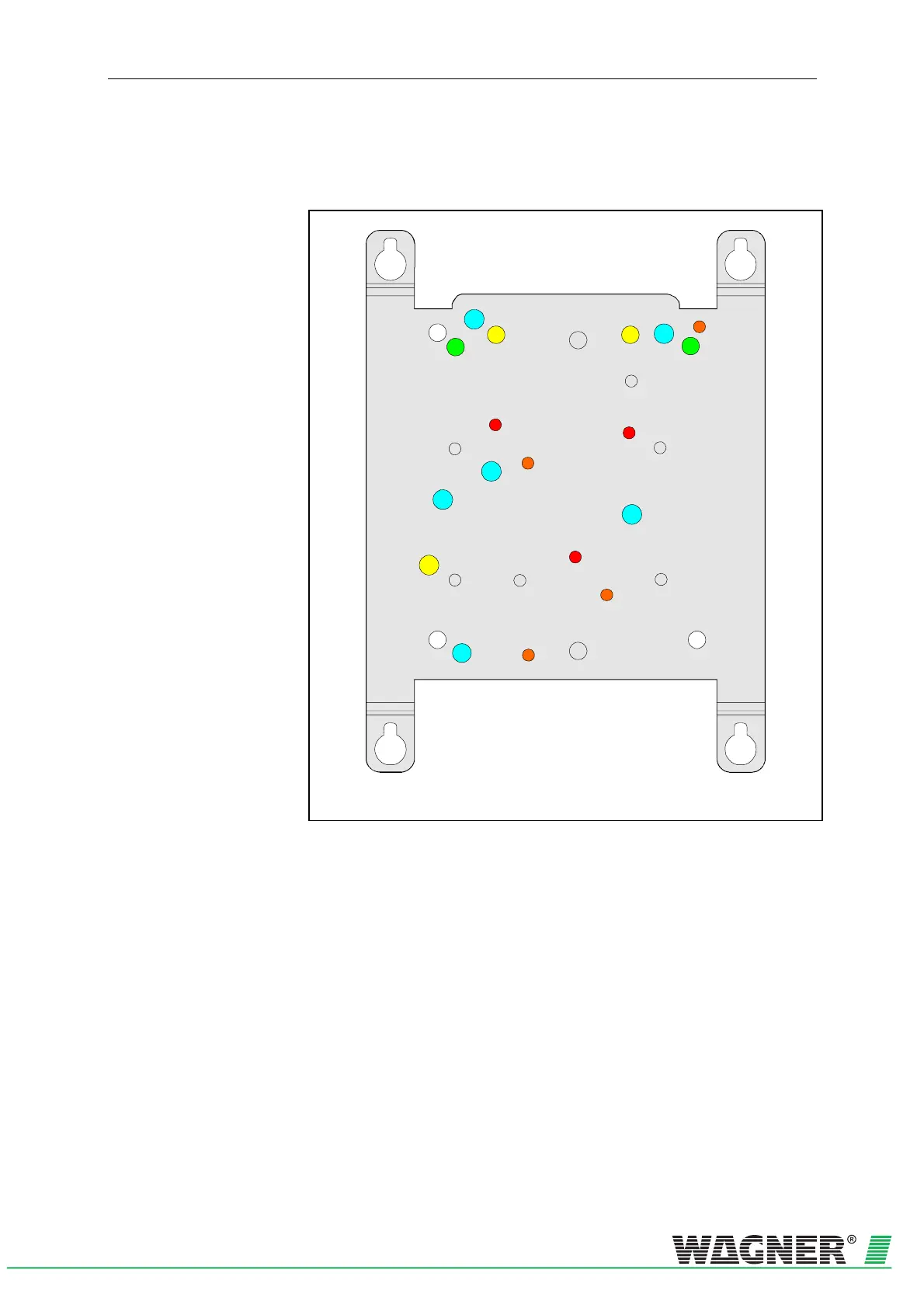

Fig. 5.8: Arrangement of holes on the installation plate of the additional housing

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
