TITANUS MICRO·SENS
®
Technical Description
MS_A_02-a-en-e Data: 01/09 2 – 7
2.2.2 TITANUS MICRO·SENS
®
air sampling smoke detec-
tion system
The TITANUS MICRO·SENS
®
air sampling smoke detection system
comprises the following components, device base, detection unit and
pipe system:
Device base
z Connections for 25 mm aspiration pipe (in and return)
z Cable feeds
z Floating contacts for connection to a FAS
Detection unit
z Sensitive detection using the latest technology according to the
principle of optical scattered light indicators with integrated airflow
monitoring
z Aspiration unit with improved air feed
z Optical displays for smoke levels, main alarm, action alarm, fault, op-
eration and indication of the location of the seat of fire
z Infrared interface for diagnostics
1
4
5
5
5
5
3
2
5
5
5
5
3

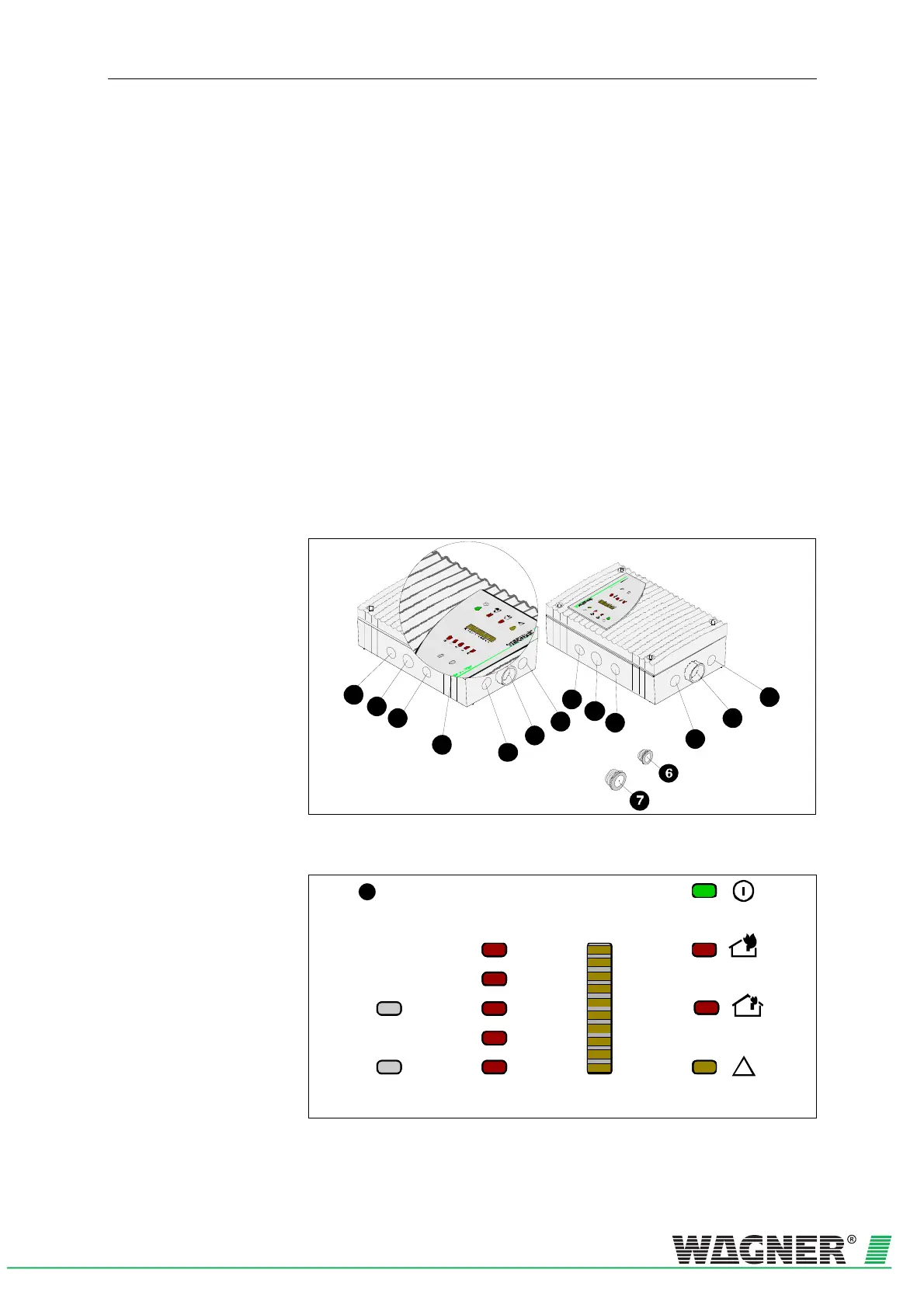

Fig. 2.8: TITANUS
®
displays and connections (For explanation see table on next page)
Operation
Fault
Fire alarm
Smoke level
1
E
D
C
B
A
10
9
8
7
6
5
4
3
2
1
Infrared
interface
Fire
location
Action alarm
Fig. 2.9: TITANUS
®
display variant with smoke levels and fire location
(For explanation see number 1 in table on next page)

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
