TITANUS MICRO·SENS
®
Installation Pipe System
MS_A_06-en-e Data: 01/09 6 – 11
6.5.2 Mounting of the special filter type SF-400/650
C
o
n
n
e
c
t
o
r
a
i
r
s
a
m
p
l
i
n
g
s
m
o
k
e
d
e
t
e
c
t
i
o
n
s
y
s
t
e
m
Elbow 45°
Elbow 45°
PVC transition
threaded joints
Clamping clip
type NG 23
Special filter for ADx and TITANUS
type SF-650
type SF-400
Clamping clip
type NG 23

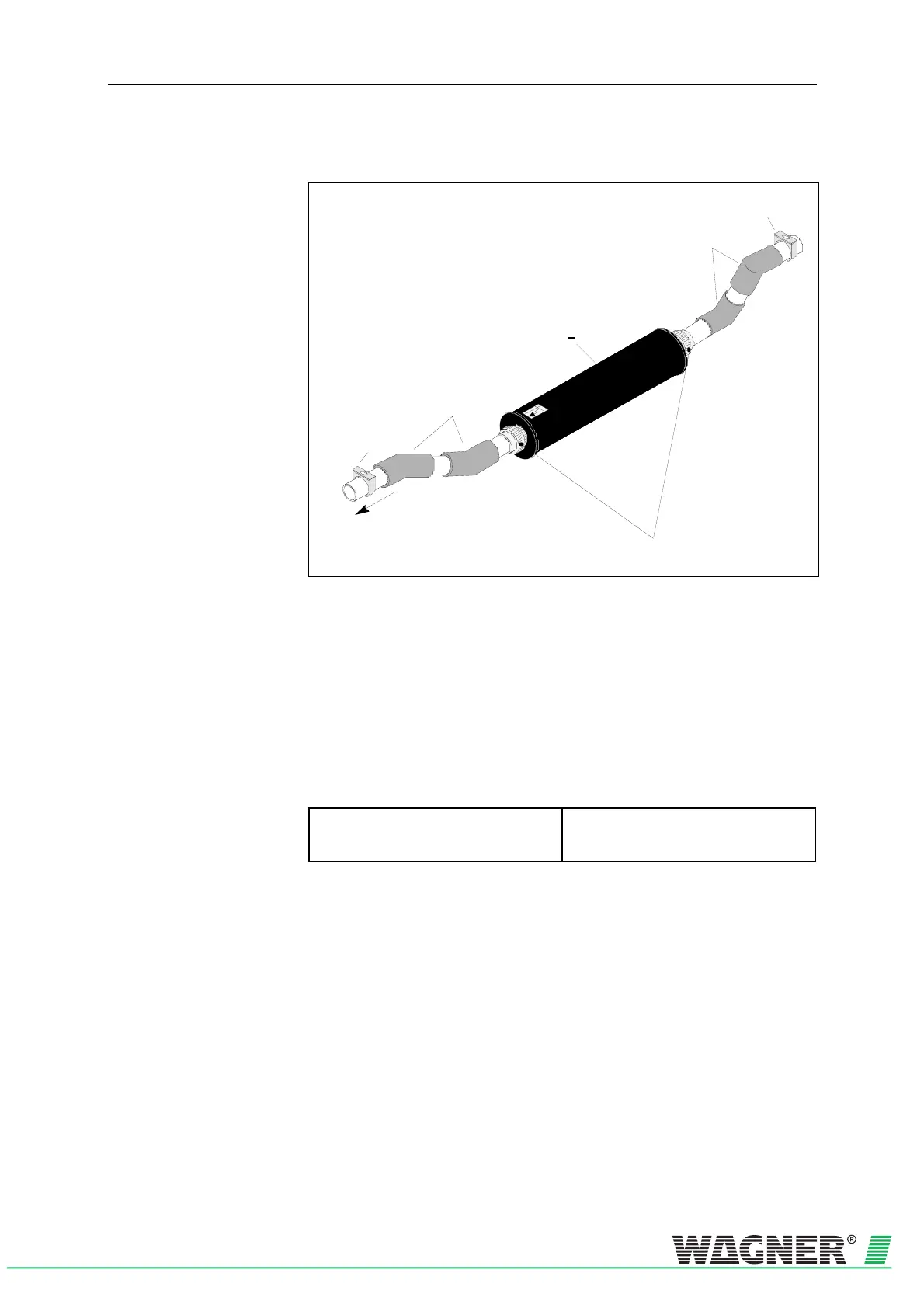

Fig. 6. 8: Mounting of the special filter into the pipe system
Special filter SF-x 1. To install or un-install the special filter use the two PVC reducer screw
joints at both filter ends.
2. Glue the reducer couplings into the pipe system.
3. When installing the special filter, note the flow direction shown on the
filter housing.
4. Clamp the special filter with a 45º elbow piece to the pipe system.
Installation material
Special Filter
PVC or ABS pipe fittings
– 45° elbows
