WAGNER TITANUS User Manual

Pipe Design TITANUS MICRO·SENS
®
4 – 34 Data: 01/09 MS_A_04-en-e
Arrangement The aspiration apertures are to be arranged against the air flow.
Take care in the design that, for assembling the pipe system, the air
conditioning ducts are often only accessible from two sides.

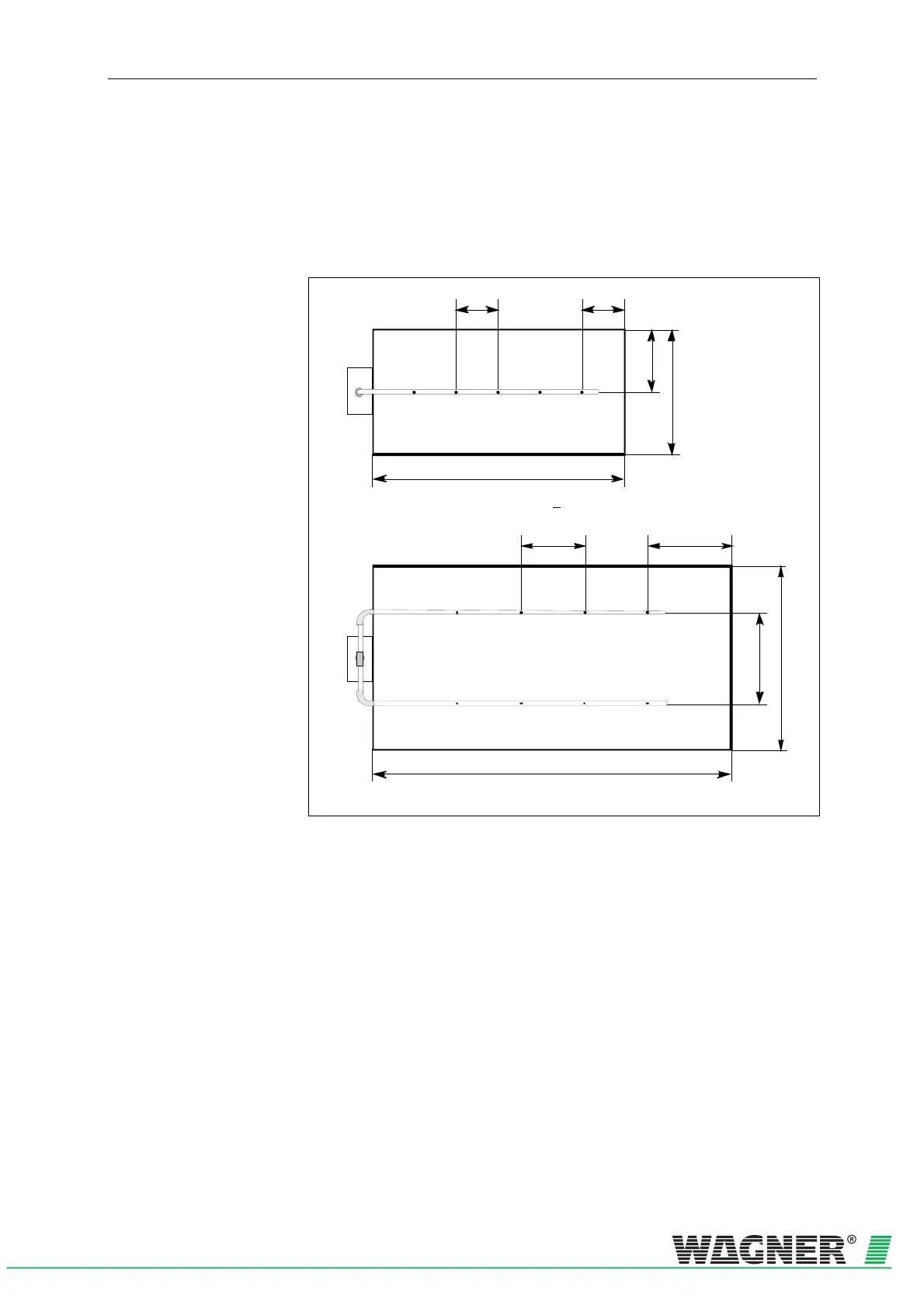

Example The following figure shows two design examples of pipe systems in air
conditioning ducts.
100 100
150 200
a
a
b
b
1/2 b
1/2 b
Duct cross-section: surface area A > 0.5 m²
Duct cross-section: surface area A 0.5 m²≤
Fig. 4.15: Ducts with small and large duct cross-section

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
