Waters GCT Premier - Inner Source Assembly

1-4 Instrument Description
Inner source assembly
The inner source assembly comprises a handle that is attached to a shaft
supporting the source. Separate inner source assemblies are provided for EI,
CI, DCI, FI, and FD. The source type is identified on the handle.
The inner source assembly is secured to the outer source by means of two
thumbscrews. Two Viton
®
O-rings form a vacuum seal between the inner
source mounting flange and the outer source.
You do not need to vent the analyzer to change the inner source.
See also: Changing the EI/CI inner source assembly on page 2-2.

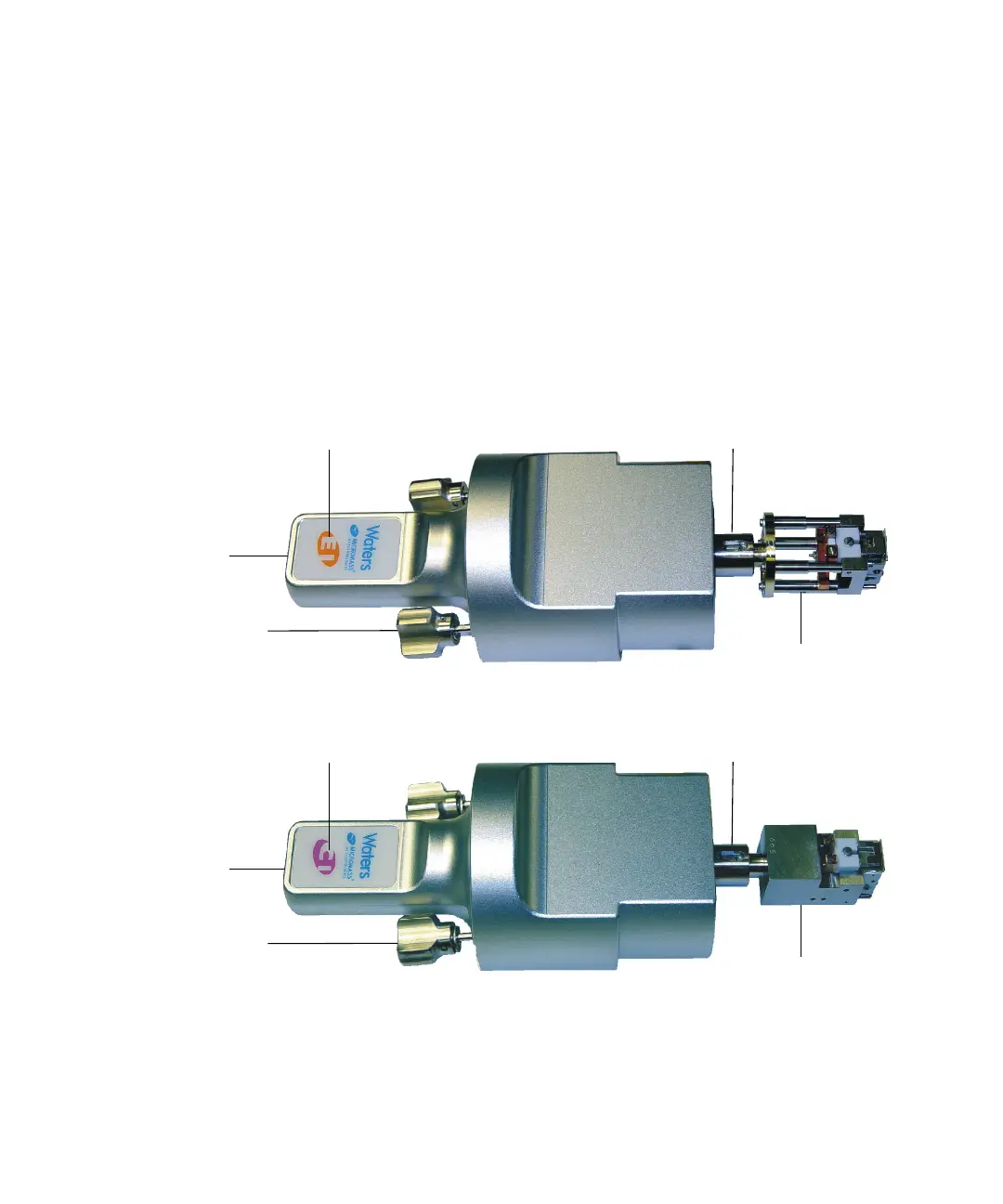

EI
inner source assembly:
CI inner source assembly:
H
andle
T
humbscrew
Shaft
EI source
Source type identifier
H
andle
T
humbscrew
Shaft
CI source
Source type identifier
