Waters GCT Premier - GCT Premier System External Wiring

To Next Page

To Previous Page

GCT Premier system external wiring D-3

GCT Premier system external wiring

The electrical connections for a GCT Premier system with a HP6890 GC and

autosampler are shown in Figure titled “GCT Premier system external

wiring:” on page D-3.

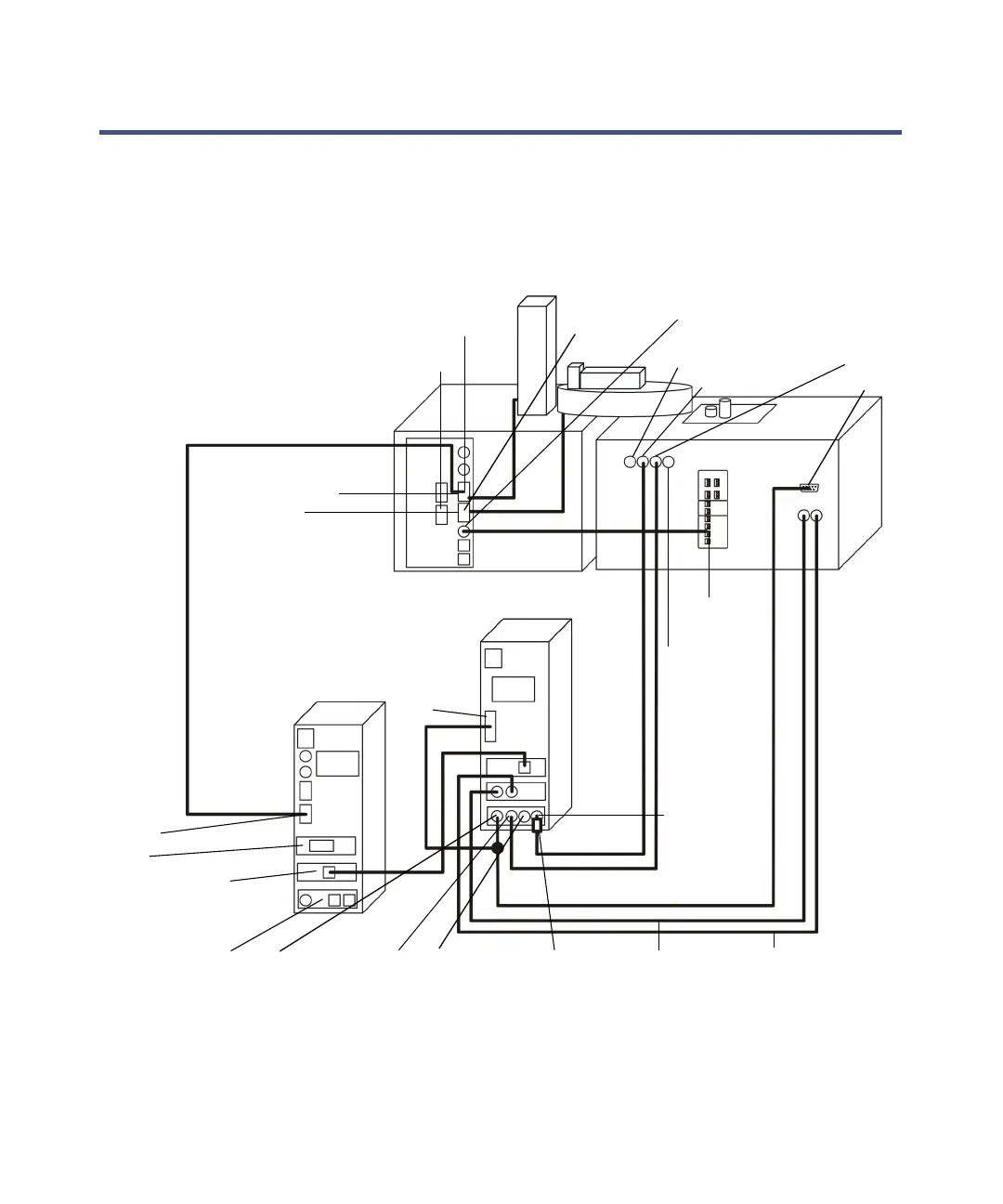

GCT Premier system external wiring:
