Waters GCT Premier - Vacuum and Gas Inlet Connections

1-18 Instrument Description
Vacuum and gas inlet connections

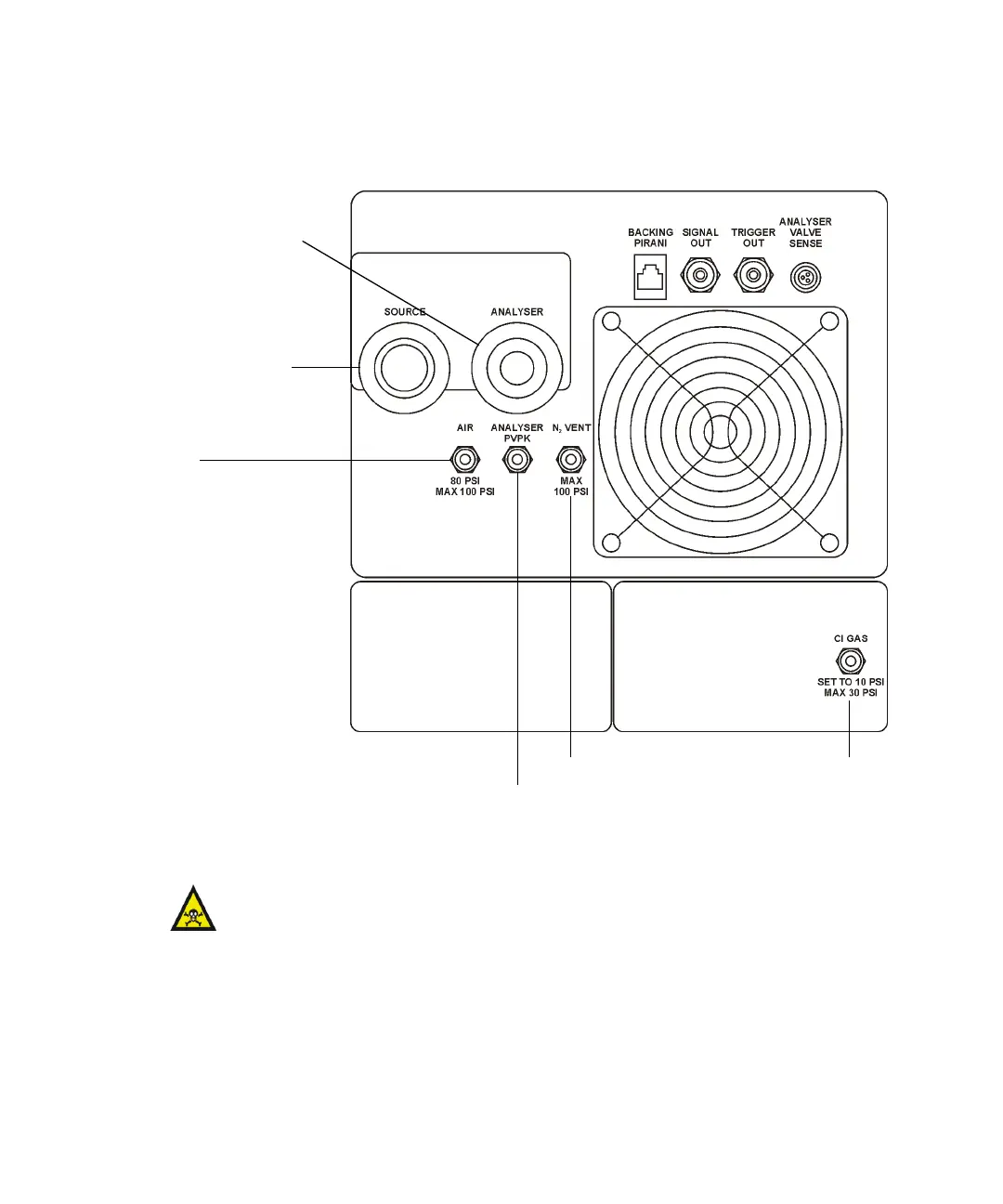

Vacuum and gas connections:
Vacuum connections
There are two vacuum connections to the fore pump; one connection from the
analyzer and one from the outer source.
See also: Figure titled “GCT Premier system vacuum connections:” on
page D-4.
Warning: To avoid toxic vapors, a suitable exhaust line must be fitted
to the fore pump.
A
nalyzer vacuum
S
ource vacuum
N
2
Vent CI Ga
s
A
ir
Analyzer PVPK
