1-14 Instrument Description

Analyzer Valve Sense

Connection to the PVPK valve on the fore pump.

See also: GCT Premier system vacuum connections: on page D-4.

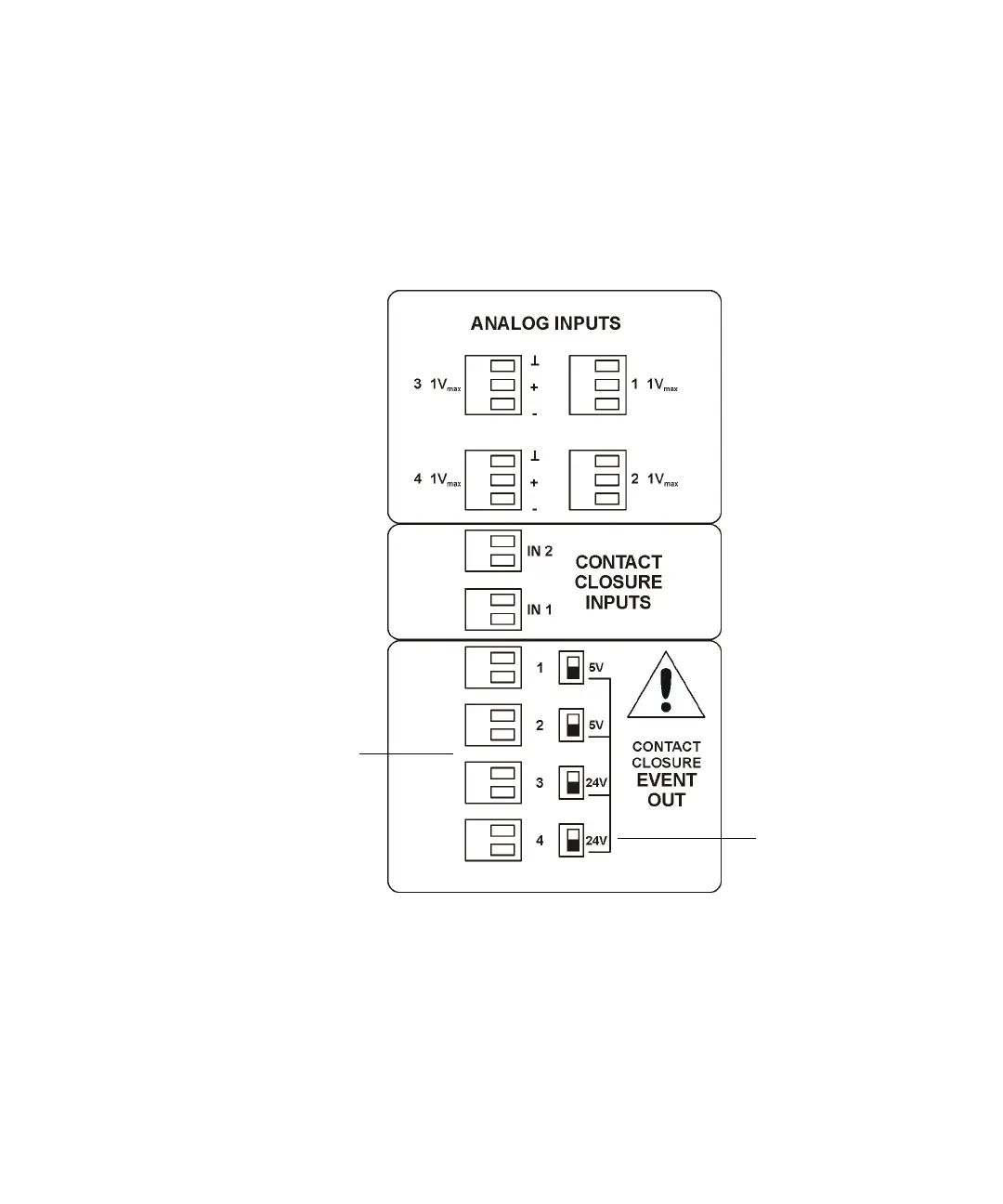

Analog Inputs, Contact Closure Inputs, and Contact Closure Event Out

outputs:

Event Out

selector switches

Event Out connections
