Chapter 4 Inputs / Outputs ALPHA V40
Version 18.07.06
32
Configurations for Standard Sensor Types:
Banner: Minibeam-Expert, SMe312DQDP >>> sensor config. 6 und 7
Balluff: Reflextaster BOS 18M-NA-1QB-5 >>> sensor config. 5 und 6
Wenglor: Reflextaster TC 55NA3 + Zub-TC-01 >>> sensor config. 5 und 6
Wenglor : Retroreflective sensor LD86PCT3 >>> sensor config. 3
(Geset standard)
If using for product detection, set sensor to NC,
in teach mode >> flash 3 times
If using as "Low Label Sensor", set sensor to
NO, in teach mode >> flash once
The factory setting for the European market is sensor config. 5
The factory setting for the American market is sensor config. 6
The sensor configurations are labelled correspondingly (located at the controller on the
outputs).
Of course the controller receives the proper configuration if the product sensor is enclosing to
our delivery.

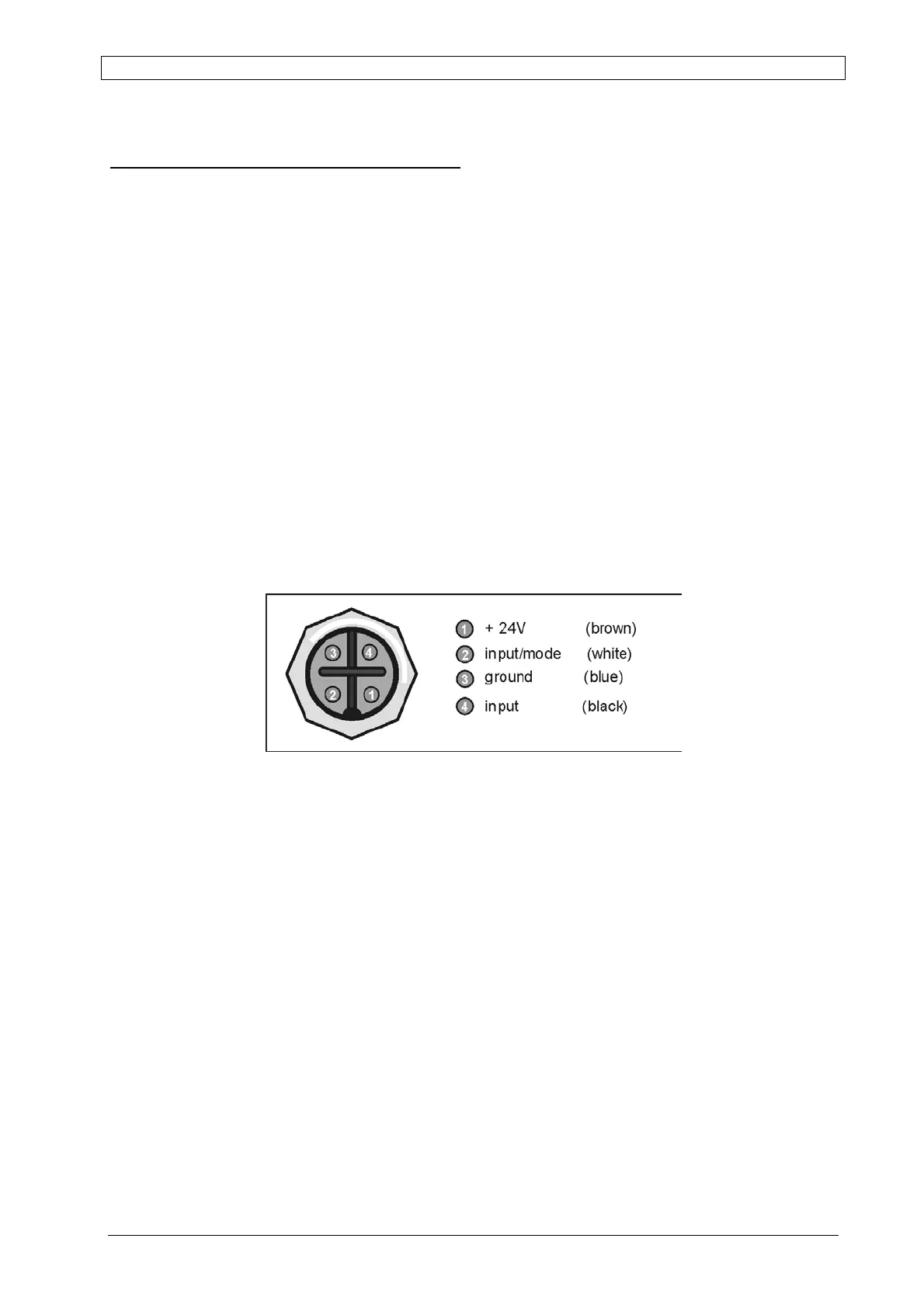

Fig. 4-6: X2-X4 pin-out
Note! If a wrong configuration was done by mistake, the sensor may function improperly, but it
will not cause damages.
