ENGINE
M6060, M7060, WSM
1-S27

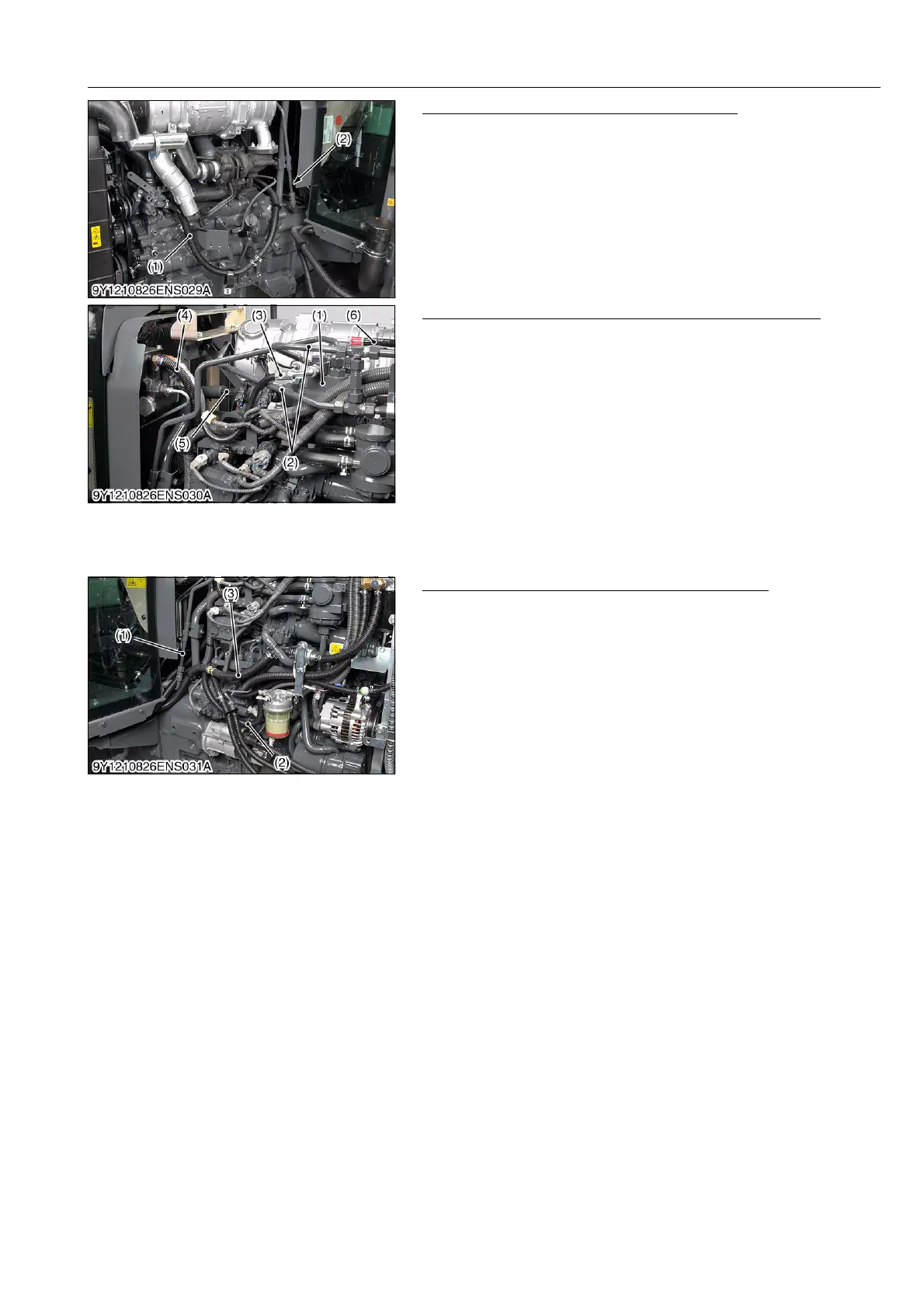

Heater Hose and Hydraulic Pipe (Left Side)
1. Disconnect the heater hose (1).
2. Disconnect the hydraulic pipe (2).
9Y1210828ENS0032US0
Power Steering Controller, Hose and Pipe (Right Side)
1. Disconnect the universal joint (5) of power steering controller.
2. Disconnect the oil cooler pipes (2).
3. Disconnect the power steering hoses (6)
4. Disconnect the master cylinder hose (3).
5. Disconnect the return hose (4).
6. Remove the power steering controller (1).
(When reassembling)
• When reassembling the power steering controller, see page
6-S7.
9Y1210828ENS0033US0
Power Steering Pipe and fuel hose (Right Side)
1. Disconnect the power steering controller pipe (1).
2. Disconnect the fuel hose (2).
3. Disconnect the heater hose (3).
9Y1210828ENS0034US0
(1) Heater Hose (2) Hydraulic Pipe
(1) Power Steering Controller
(2) Oil Cooler Pipe
(3) Master Cylinder Hose
(4) Return Hose
(5) Universal Joint
(6) Power Steering Hose
(1) Power Steering Controller Pipe
(2) Fuel Hose
(3) Heater Hose
KiSC issued 08, 2013 A
