ENGINE
M6060, M7060, WSM
1-S28

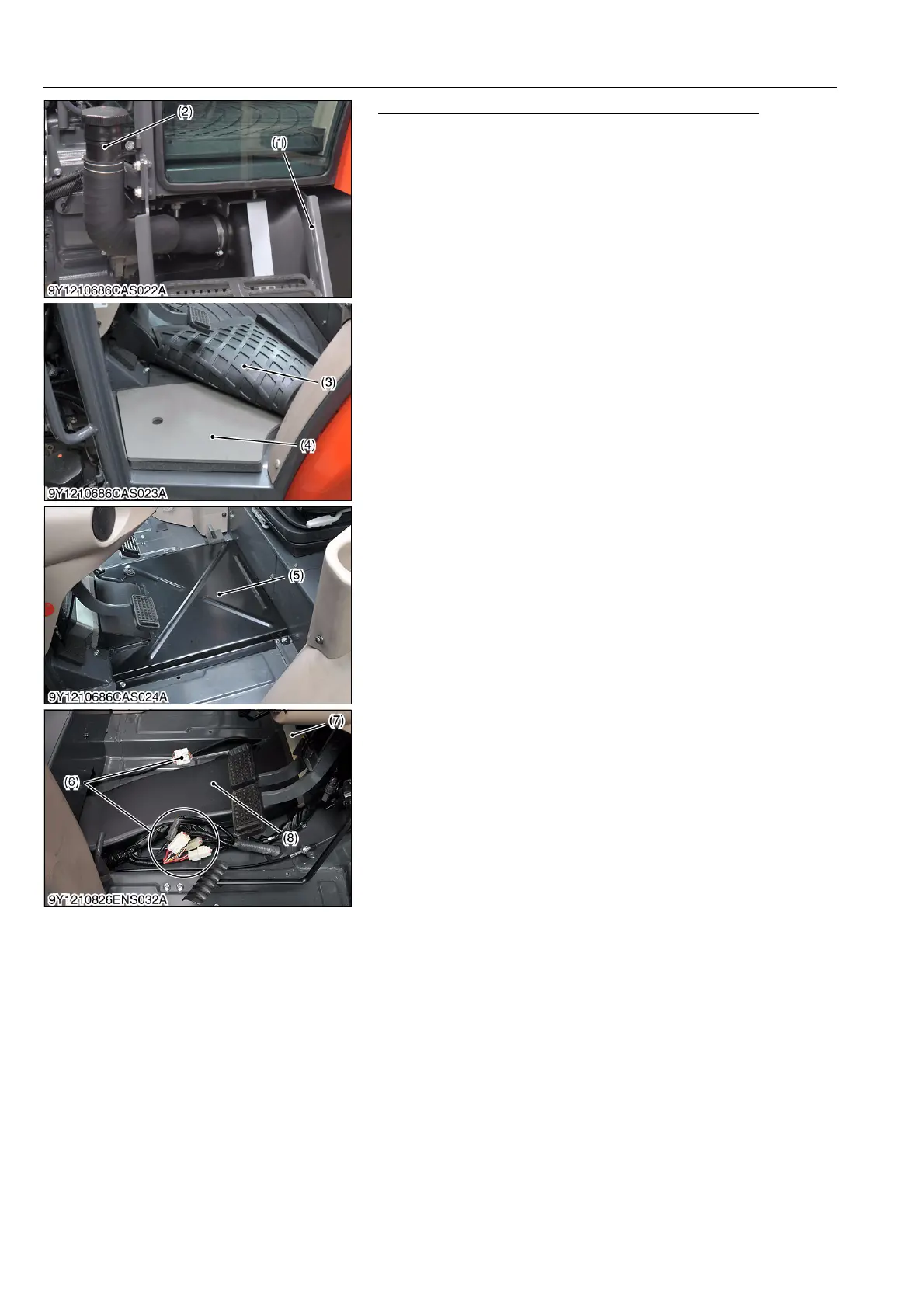

Step, Floor Mats and Wiring Harness for Cabin Side
1. Remove the auxiliary step on both sides.
2. Remove the fuel filling port (2).
3. Remove the floor mat 1 (3) and mat 2 (4).
4. Remove the floor cover (5), the duct band (7) and the front duct
(8).
5. Disconnect the connectors (6).
6. Pull out these connectors from cabin.
9Y1210828ENS0035US0
(1) Auxiliary Step
(2) Fuel Filling Port
(3) Floor Mat 1
(4) Floor Mat 2
(5) Floor Cover
(6) Connector
(7) Duct Band
(8) Front Duct
KiSC issued 08, 2013 A
