ENGINE
M6060, M7060, WSM
1-S42
(Continued)
(When reassembling)
• Align the alignment marks of the supply pump gear (7) and idle
gear (6).
• Replace the O-ring of the supply pump (10) with a new one.
• Install the supply pump (10).
• Tighten the supply pump mounting nut (11).
• Tighten the supply pump gear mounting nut (9) to its specified
torque.
• Mount the window cover (1).
• When replacing the supply pump with a new one, use the
diagnosis tool to conduct learning of discrepancies in the
new supply pump.
9Y1210828ENS0059US0
Tightening torque
Supply pump mounting nut
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
Supply pump gear
mounting nut
59 to 68 N·m
6.0 to 7.0 kgf·m
44 to 50 lbf·ft

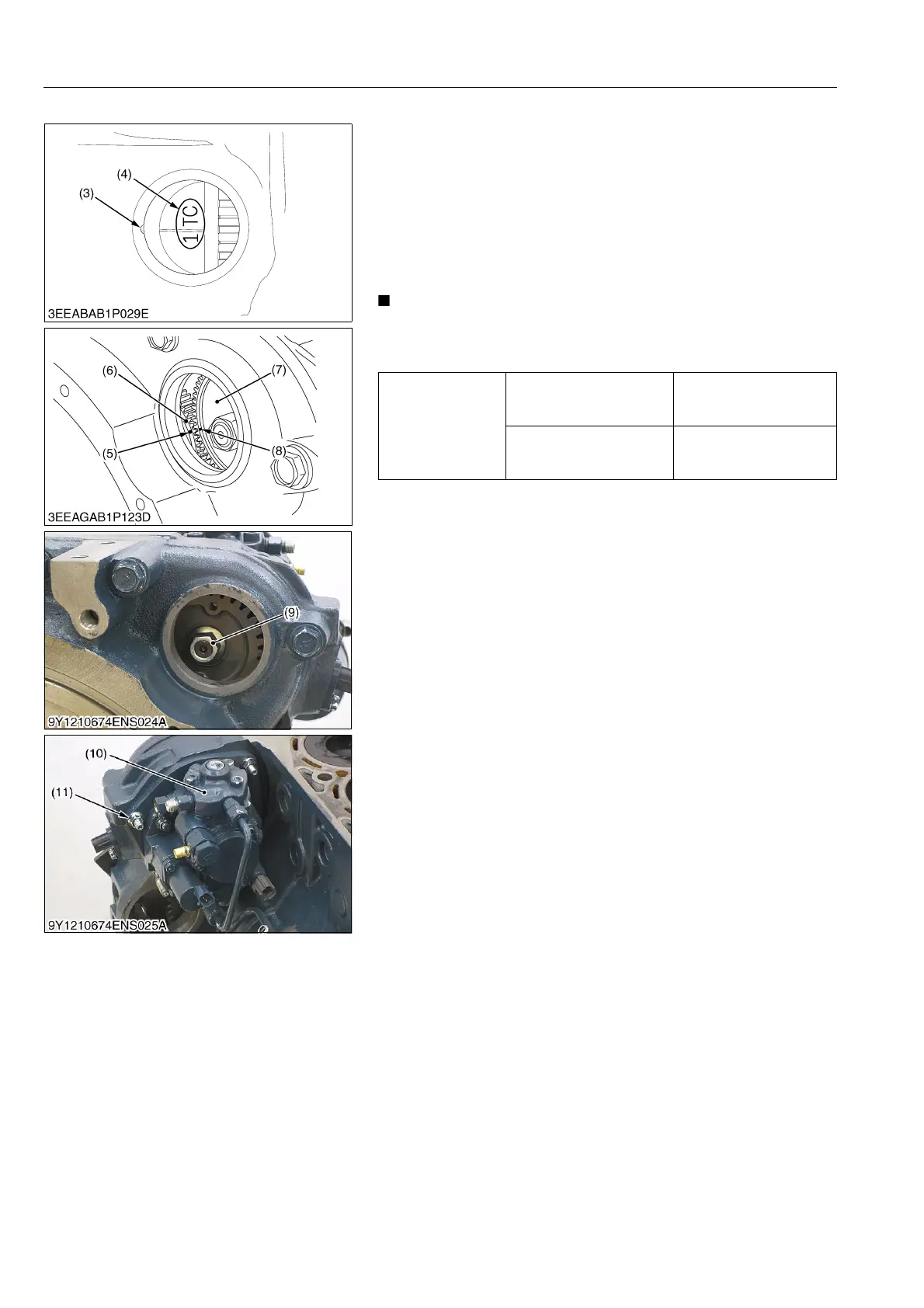

(1) Window Cover
(2) Flywheel Housing
(3) Mark
(4) TC Mark
(5) Mark
(6) Idle Gear
(7) Supply Pump Gear
(8) Timing Mark
(9) Supply Pump Gear Mounting Nut
(10) Supply Pump
(11) Supply Pump Mounting Nut
