ENGINE
M6060, M7060, WSM
1-S43

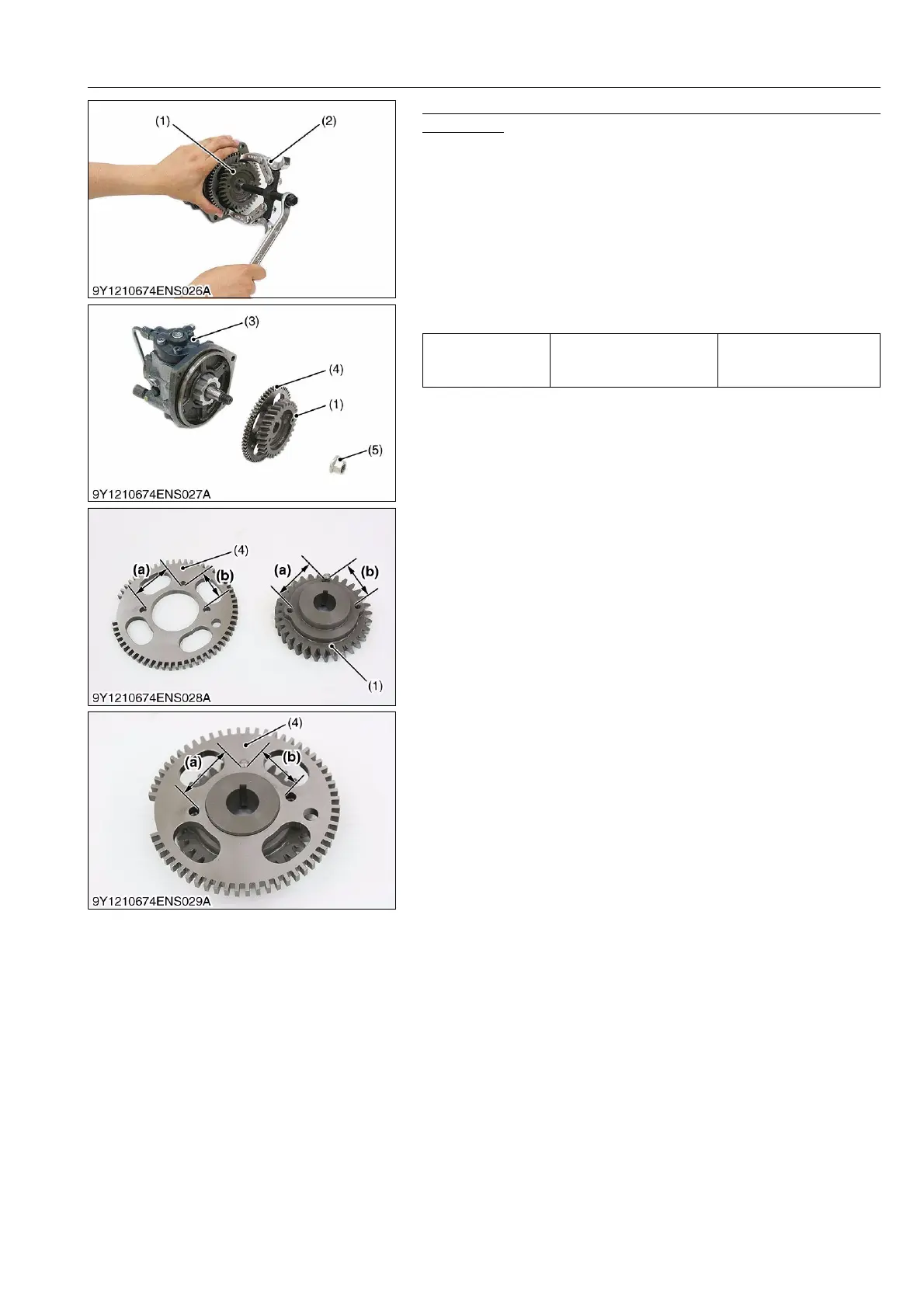

Supply Pump Gear and Crankshaft Position Pulsar Gear (If
necessary)
1. Remove the supply pump gear (1) and crankshaft position
pulsar gear (4) with gear puller (2) from the supply pump (3).
2. Remove the mounting screws of crankshaft position pulsar gear
(4).
3. Remove the crankshaft position pulsar gear (4).
(When reassembling)
• Install the crankshaft position pulsar gear (4) to the supply pump
gear (1).
• Align each pitch (a) and (b) of the crankshaft position pulsar
gear (4) and the supply pump gear (1)
9Y1210828ENS0060US0
Tightening torque
Mounting screw of
crankshaft position pulsar
gear
9.81 to 11.2 N·m
1.00 to 1.15 kgf·m
7.24 to 8.31 lbf·ft
(1) Supply Pump Gear
(2) Gear Puller
(3) Supply Pump
(4) Crankshaft Position Pulsar Gear
(5) Supply Pump Gear Mounting Nut
(a) Large Pitch
(b) Small Pitch
KiSC issued 08, 2013 A
