wsm M7060 - Page 221

ENGINE
M6060, M7060, WSM
1-S60

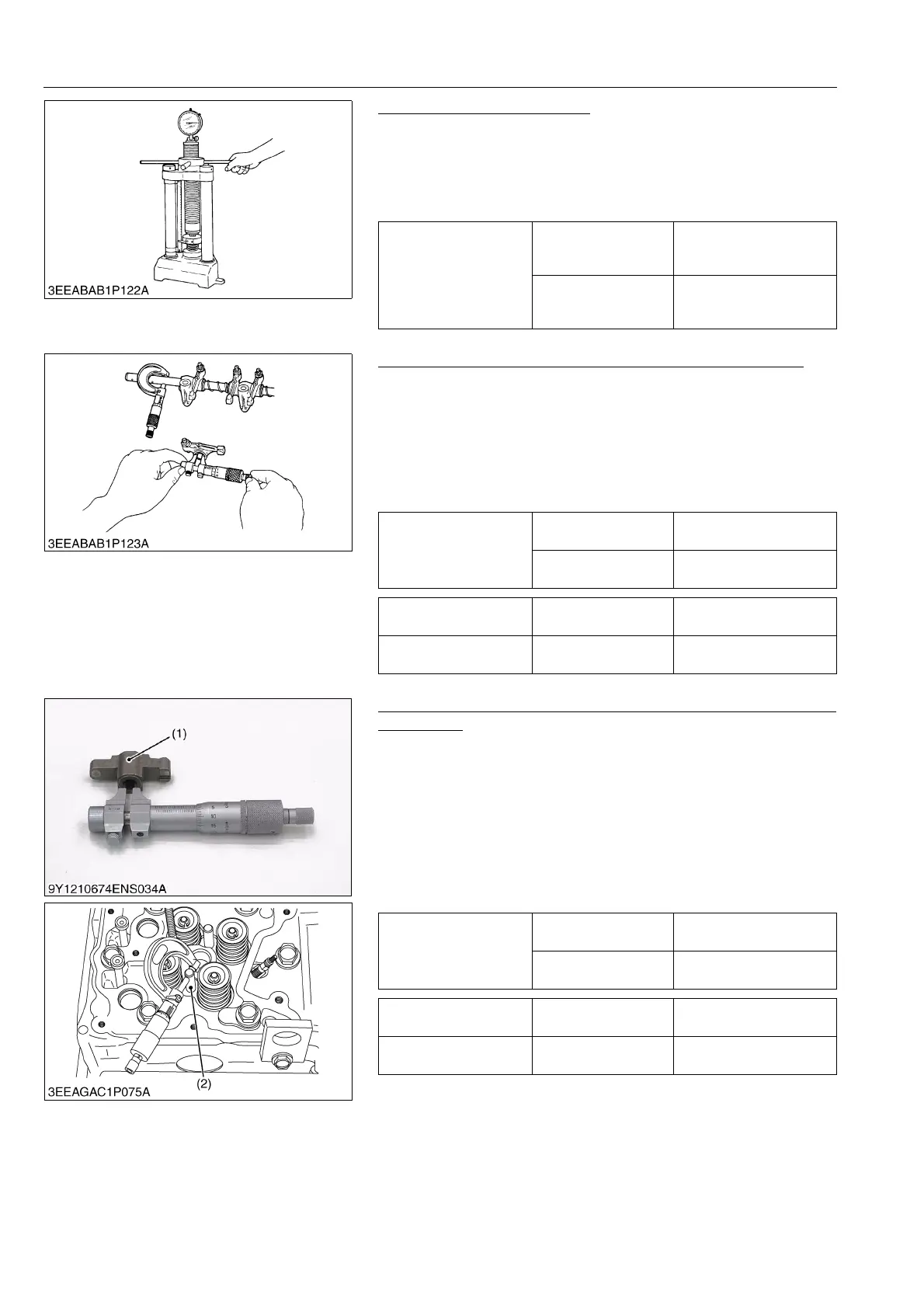

Setting Load of Valve Spring
1. Put the valve spring on a tester and compress the valve spring
to the specified setting length.
2. Read the compression load on the gauge.
3. If the measurement is less than the allowable limit, replace the
valve spring.
9Y1210828ENS0086US0
Oil Clearance between Rocker Arm and Rocker Arm Shaft
1. Measure the rocker arm I.D. with an internal micrometer.
2. Measure the rocker arm shaft O.D. with an external micrometer.
3. Calculate the oil clearance.
4. If the oil clearance is more than the allowable limit, replace the
rocker arm and measure the oil clearance again. If the oil
clearance stays more than the allowable limit, replace the
rocker arm shaft also.
9Y1210828ENS0087US0
Oil Clearance between Valve Bridge Arm Shaft and Valve
Bridge Arm
1. Measure the valve bridge arm (1) I.D. with an internal
micrometer.
2. Measure the valve bridge shaft (2) O.D with an external
micrometer.
3. Calculate the oil clearance.
4. If the oil clearance is more than allowable limit, replace the valve
bridge arm (1) and measure the oil clearance again. If the oil
clearance stays more than the allowable limit, replace the valve
bridge shaft (2) also.
9Y1210828ENS0088US0
Setting load / setting
length
Factory specification
63.5 N / 31.5 mm
6.48 kgf / 31.5 mm
14.3 lbf / 1.24 in.
Allowable limit
45.9 N / 31.5 mm
4.68 kgf / 31.5 mm
10.3 lbf / 1.24 in.
Oil clearance between
rocker arm and rocker
arm shaft
Factory specification
0.016 to 0.054 mm
0.00063 to 0.0021 in.
Allowable limit
0.15 mm
0.0059 in.
Rocker arm shaft O.D. Factory specification
14.973 to 14.984 mm
0.58949 to 0.58992 in.
Rocker arm I.D. Factory specification
15.000 to 15.027 mm
0.59056 to 0.59161 in.
Oil clearance between
valve bridge arm and
valve bridge shaft
Factory specification
0.018 to 0.057 mm
0.00071 to 0.0022 in.
Allowable limit
0.015 mm
0.0059 in.
Valve bridge shaft O.D. Factory specification
9.023 to 9.032 mm
0.3553 to 0.3555 in.
Valve bridge arm I.D. Factory specification
9.050 to 9.080 mm
0.3563 to 0.3574 in.
(1) Valve Bridge Arm (2) Valve Bridge Shaft
KiSC issued 08, 2013 A
