ENGINE
M6060, M7060, WSM
1-S61

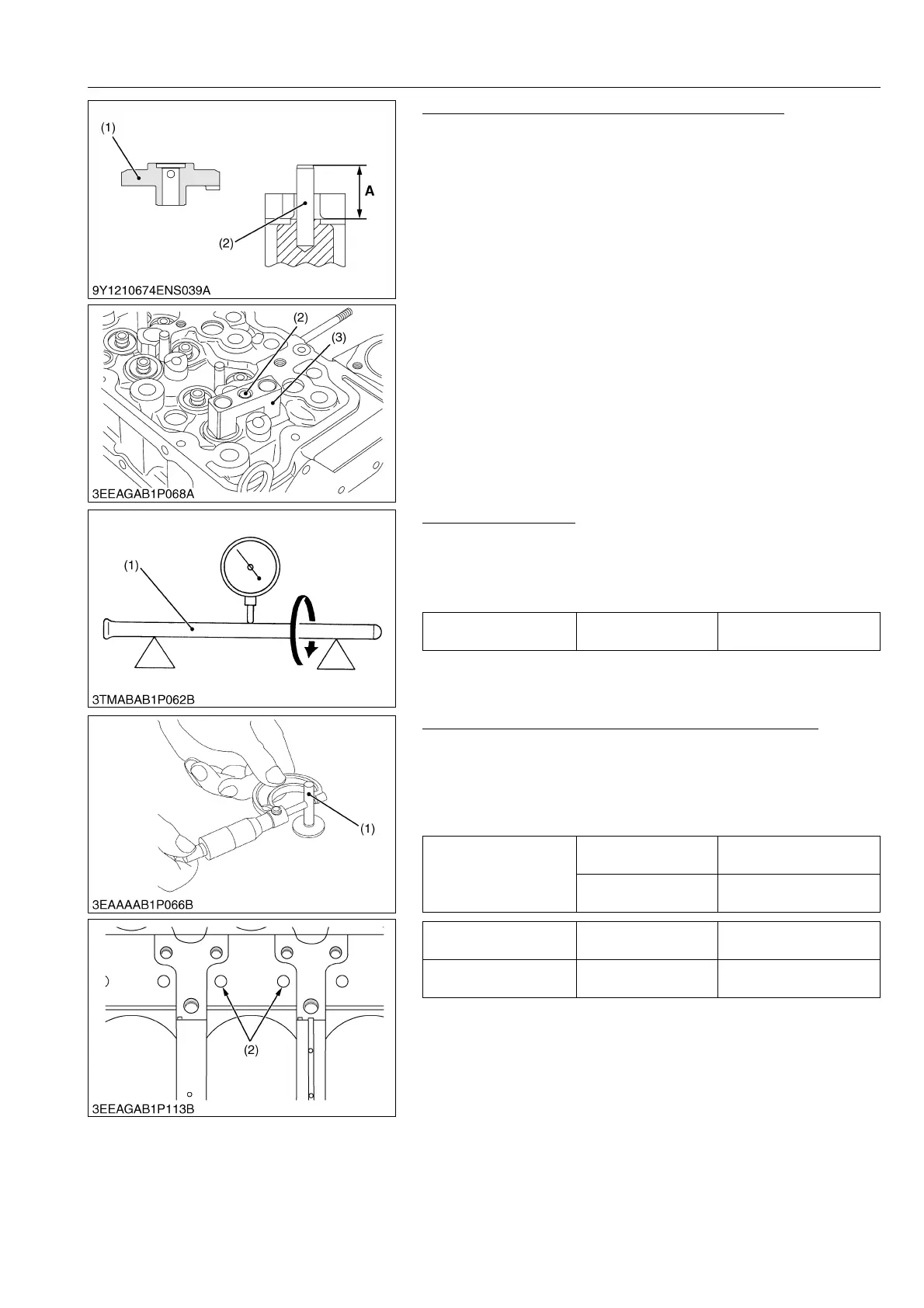

Replacement of Valve Bridge Shaft (If necessary)
1. Remove the used valve bridge shaft (2).
2. Clean the valve bridge shaft mounting hole.
3. Using valve bridge shaft replacing tool (3), press in the new
shaft. (See page G-57.)
9Y1210828ENS0089US0
Push Rod Alignment
1. Put the push rod on V blocks.
2. Measure the push rod alignment.
3. If the measurement is more than the allowable limit, replace the
push rod.
9Y1210828ENS0090US0
Oil Clearance between Tappet and Tappet Guide Bore
1. Measure the tappet O.D. with an external micrometer.
2. Measure the tappet guide bore I.D. with a small hole gauge.
3. Calculate the oil clearance.
4. If the oil clearance is more than the allowable limit or the tappet
has a damage, replace the tappet.
9Y1210828ENS0091US0
(1) Valve Bridge Arm
(2) Valve Bridge Shaft
(3) Valve Bridge Shaft Replacing Tool
A : 31.1 to 31.7 mm (1.23 to 1.24 in.)
Push rod alignment Allowable limit
0.25 mm
0.0099 in.
(1) Push Rod
Oil Clearance between
tappet and tappet guide
bore
Factory specification
0.020 to 0.050 mm
0.00079 to 0.0019 in.
Allowable limit
0.07 mm
0.003 in.
Tappet O.D. Factory specification
9.965 to 9.980 mm
0.3924 to 0.3929 in.
Tappet guide bore I.D. Factory specification
10.000 to 10.015 mm
0.39370 to 0.39429 in.
(1) Tappet (2) Tappet Guide Bore
KiSC issued 08, 2013 A
