wsm M7060 - Page 80

GENERAL
M6060, M7060, WSM
G-57

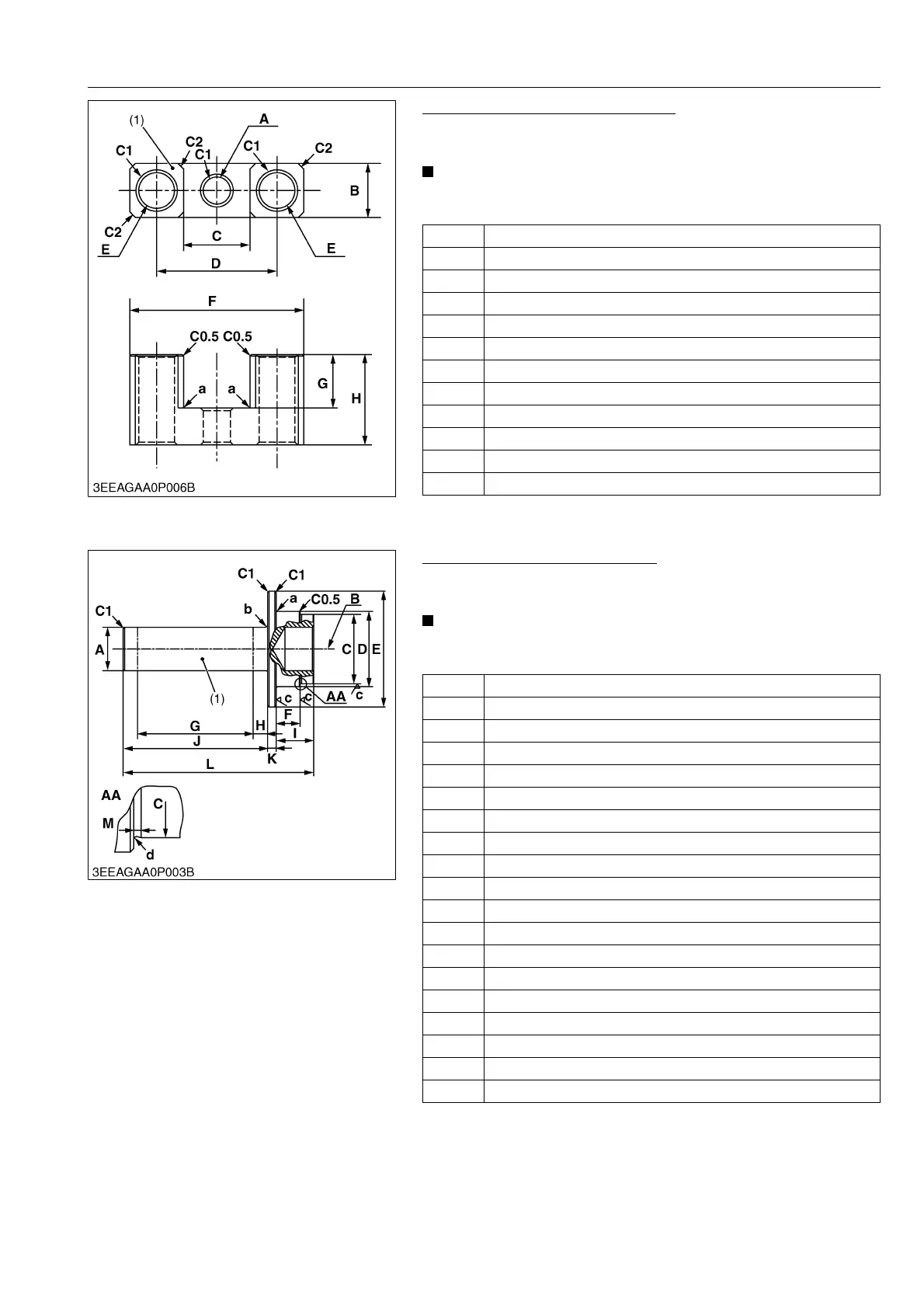

Valve Bridge Shaft Replacing Tool
Application
• Use to press fit the valve bridge shaft.
NOTE
• This special tool is not provided, so make it referring to the
figure.
9Y1210828GEG0087US0
Camshaft Cover Replacing Tool
Application
• Use to press fit the camshaft cover.
NOTE
• This special tool is not provided, so make it referring to the
figure.
9Y1210828GEG0088US0
A 9.50 mm dia. (0.374 in. dia.) through hole
B 19.0 mm (0.748 in.)
C 23.2 mm (0.913 in.)
D 42.00 to 42.40 mm (1.654 to 1.669 in.)
E 12.5 mm dia. (0.492 in. dia.) through hole
F 61.0 mm (2.40 in.)
G 18.7 mm (0.736 in.)
H 30.90 to 31.70 mm (1.217 to 1.248 in.)
a 0.30 mm radius (0.012 in. radius)
C0.5 Chamfer 0.50 mm (0.020 in.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
(1) Material : SS400
A 30.0 mm (1.18 in.)
B 30.0 mm dia., 20.0 mm depth (1.18 in. dia., 0.79 in. depth)
C 47.975 to 48.000 mm (1.8888 to 1.8897 in.)
D 52.0 mm (2.05 in.)
E 80.0 mm (3.15 in.)
F 16.5 to 16.6 mm (0.650 to 0.653 in.)
G 80.0 mm (3.15 in.)
H 10.0 mm (0.394 in.)
I 26.0 mm (1.02 in.)
J 100 mm (3.94 in.)
K 6.0 mm (0.24 in.)
L 132 mm (5.20 in.)
M 1.0 mm (0.039 in.)
a 1.0 mm radius (0.039 in. radius)
b 2.0 mm radius (0.079 in. radius)
c Ra = 3.2a
d 0.40 mm radius (0.016 in. radius)
C0.5 Chamfer 0.50 mm (0.020 in.)
C1 Chamfer 1.0 mm (0.039 in.)
(1) Material : S43C
KiSC issued 08, 2013 A
