Crankshaft Sleeve Replacing Tool
Application
• Use to fix the crankshaft sleeve of the diesel engine.
NOTE
• These special tools are not provided, so make it referring to the figure.
9Y1210828GEG0089US0

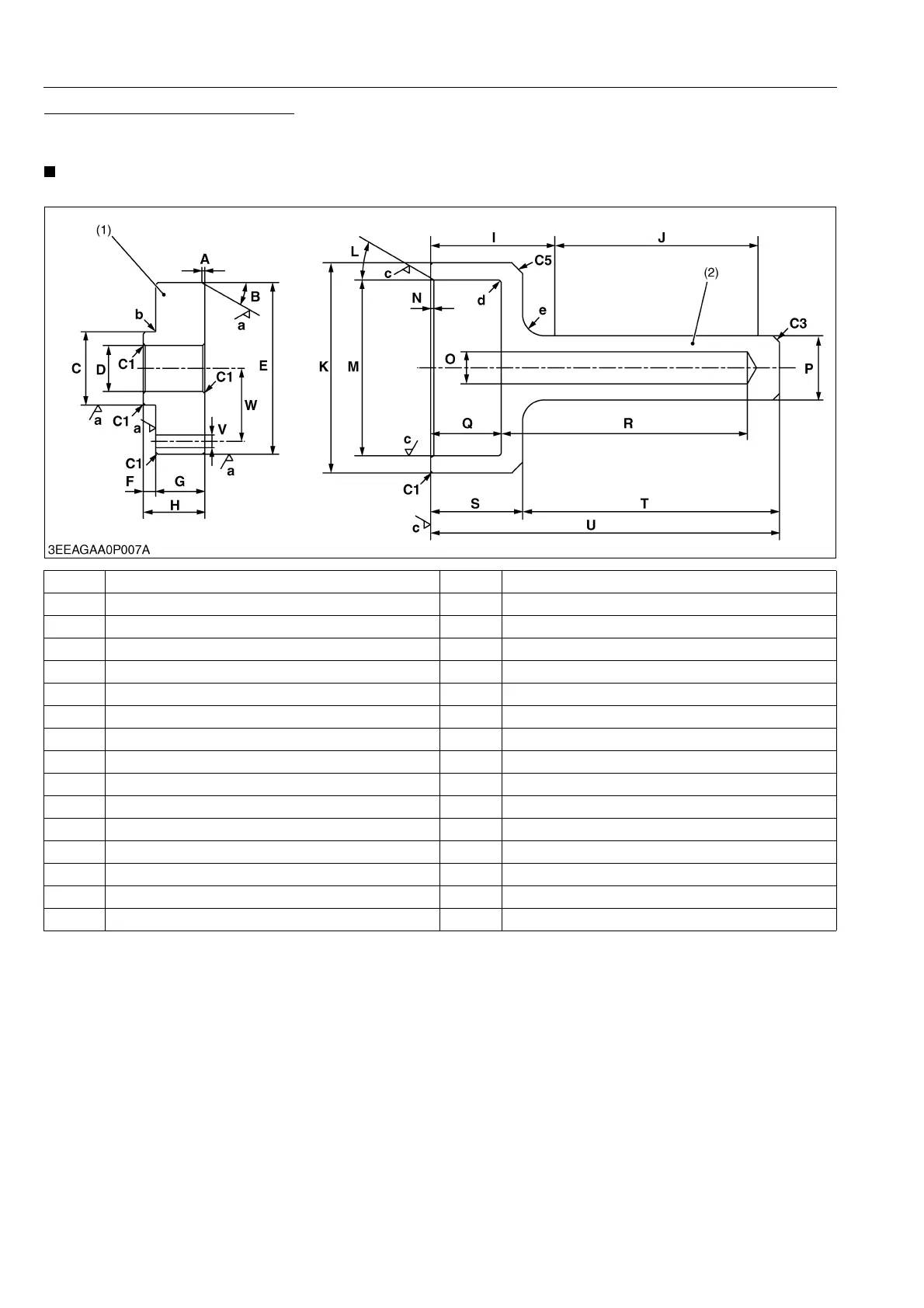

A 1.50 mm (0.0591 in.) Q 33.0 mm (1.30 in.)
B 0.52 rad (30 °) R 115 mm depth (4.53 in. depth)
C 34.925 to 34.950 mm dia. (1.3750 to 1.3759 in. dia.) S 43.0 mm (1.69 in.)
D 22 mm dia. (0.8661 in. dia.) T 120 mm (4.72 in.)
E 81.980 to 81.985 mm dia. (3.2276 to 3.2277 in. dia.) U 163 mm (6.42 in.)
F 6.0 mm (0.24 in.) V 8.0 mm dia. (0.31 in. dia.)
G 23.5 mm (0.925 in.) W 33.475 to 33.525 mm (1.3180 to 1.3198 in.)
H 29.5 mm (1.16 in.) a Ra = 1.6 a
I 58.0 mm (2.28 in.) b 0.50 mm radius (0.020 in. radius)
J 95.0 mm (3.74 in.) c Ra = 3.2 a
K 98.0 mm dia. (3.86 in. dia.) d 1.50 mm radius (0.0591 in. radius)
L 0.52 rad (30 °) e 10.0 mm radius (0.394 in. radius)
M 82.100 to 82.200 mm dia. (3.2323 to 3.2362 in. dia.) C1 Chamfer 1.0 mm (0.039 in.)
N 1.50 mm (0.0591 in.) C3 Chamfer 3.0 mm (0.12 in.)
O 15.0 mm dia. (0.591 in. dia.) C5 Chamfer 5.0 mm (0.20 in.)
P 30.0 mm dia. (1.18 in. dia.)
(1) Sleeve Guide Material : S43C (2) Shaft Material : S43C
