Crankcase Aligning Plate
Application
• Use for aligning the crankcase 1 and 2.
NOTE
• This special tool is not provided, so make it referring to the
figure.
9Y1210828GEG0090US0

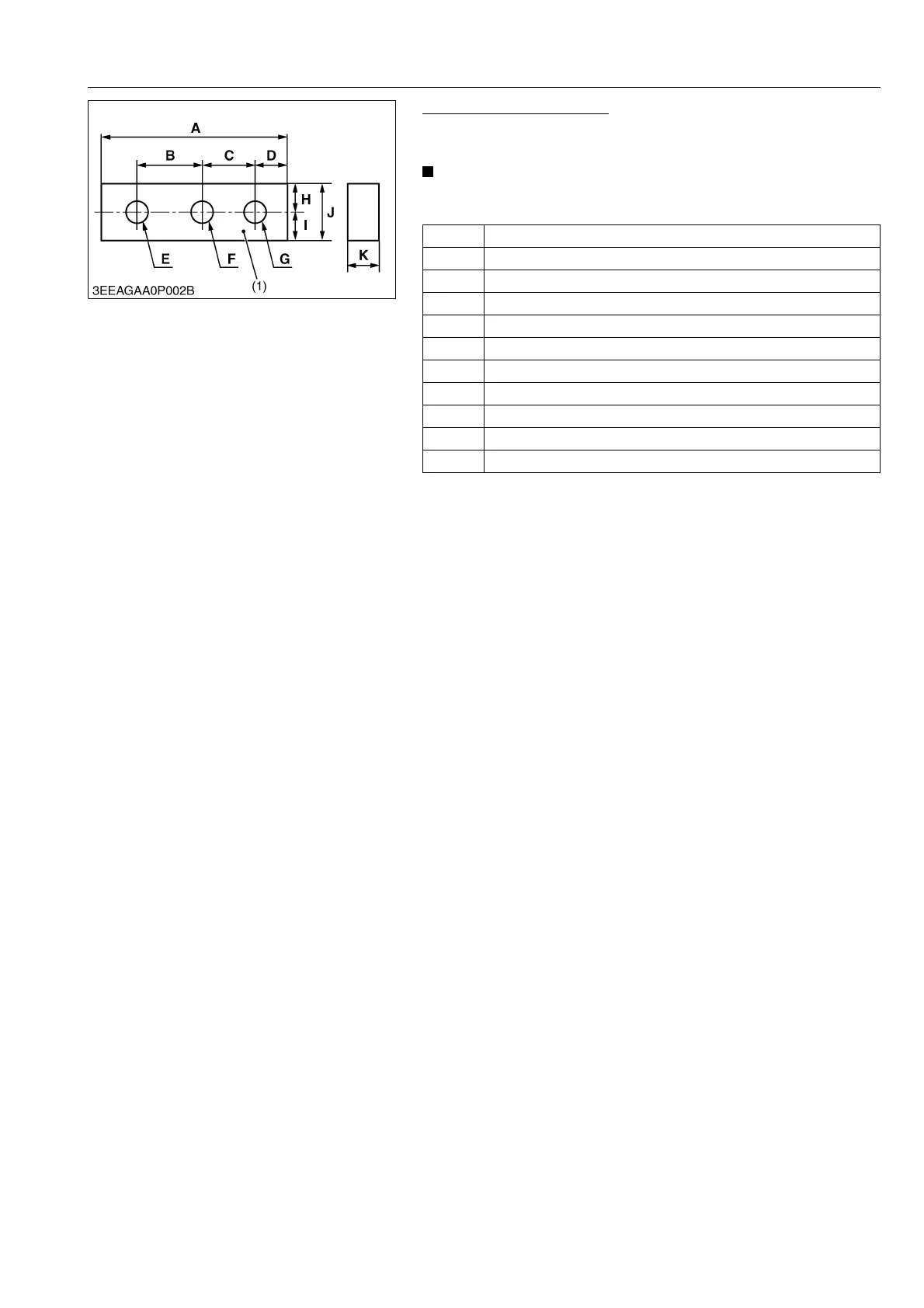

A 126.6 mm (4.984 in.)
B 49.1 mm (1.93 in.)
C 37.5 mm (1.48 in.)
D 20 mm (0.79 in.)
E 14 mm dia. (0.55 in. dia.)
F 14 mm dia. (0.55 in. dia.)
G 14 mm dia. (0.55 in. dia.)
H 17.5 mm (0.689 in.)
I 17.5 mm (0.689 in.)
J 35 mm (1.4 in.)
K 19 mm (0.75 in.)
(1) Material : S43C
