GENERAL
M6060, M7060, WSM
G-60

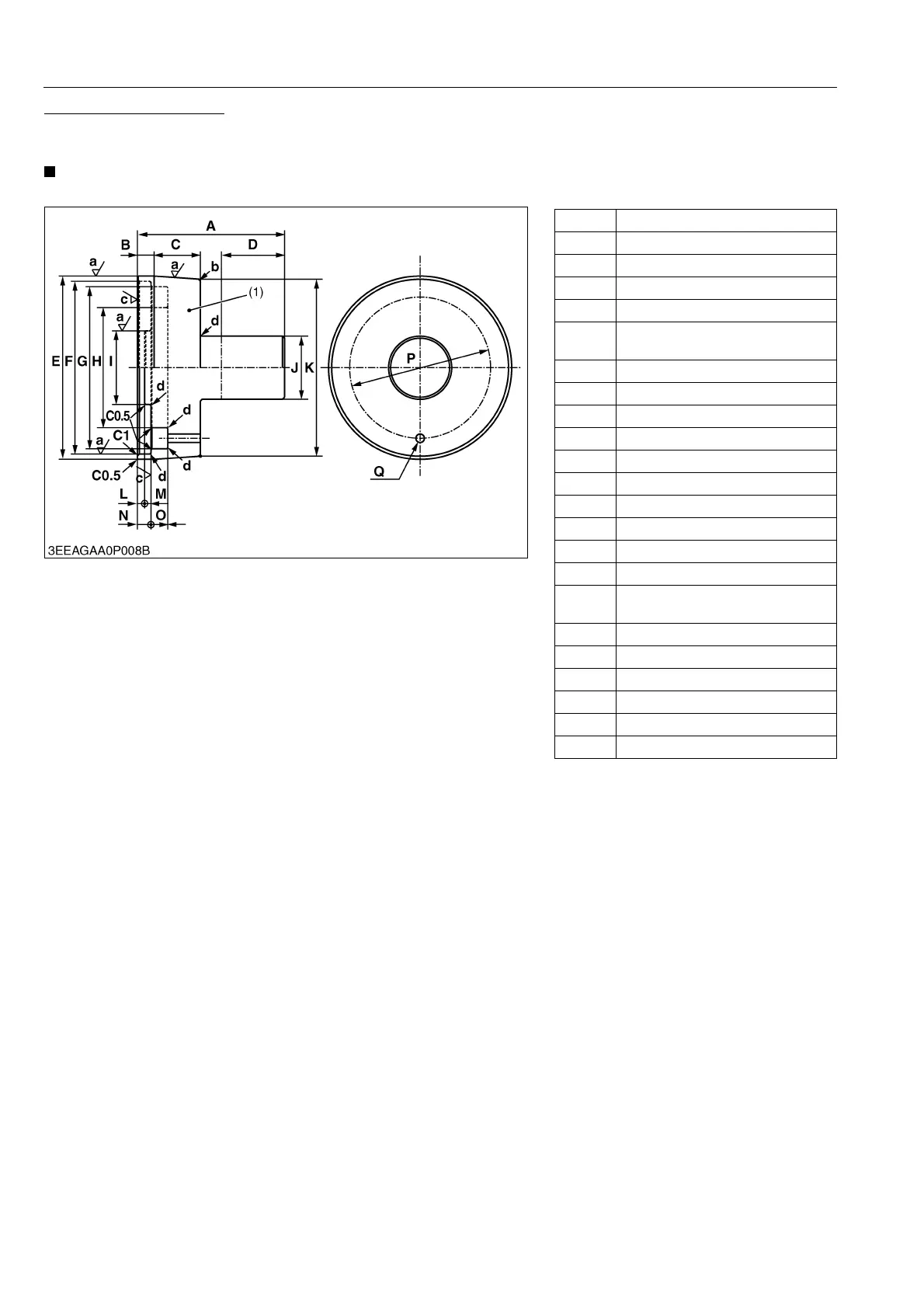

Flywheel Housing Guide
Application
• Use to install the flywheel housing to the crankcase.
NOTE
• This special tool is not provided, so make it referring to the figure.
9Y1210828GEG0091US0
A 70.0 mm (2.76 in.)
B 8.0 mm (0.31 in.)
C 22.0 mm (0.866 in.)
D 30.0 mm (1.18 in.)
E 87.0 mm dia. (3.43 in. dia.)
F
82.036 to 82.071 mm dia.
(3.2298 to 3.2311 in. dia.)
G 77.0 mm dia. (3.03 in. dia.)
H 57.0 mm dia. (2.24 in. dia.)
I 35.0 mm dia. (1.38 in. dia.)
J 30.0 mm dia. (1.18 in. dia.)
K 84.0 mm dia. (3.31 in. dia.)
L 3.5 mm (0.14 in.)
M 3.0 mm (0.12 in.)
N 6.60 to 6.80 mm (0.260 to 0.267 in.)
O 8.0 mm (0.31 in.)
P 67.0 mm dia. (2.64 in. dia.)
Q
4.0 mm dia. (0.16 in. dia.)
through hole
a Ra = 1.6 a
b 1.5 mm radius (0.059 in. radius)
c Ra = 3.2 a
d 0.80 mm radius (0.031 in. radius)
C0.5 Chamfer 0.50 mm (0.020 in.)
C1 Chamfer 1.0 mm (0.039 in.)
(1) Material : SS400
KiSC issued 08, 2013 A
