GENERAL
M6060, M7060, WSM
G-61

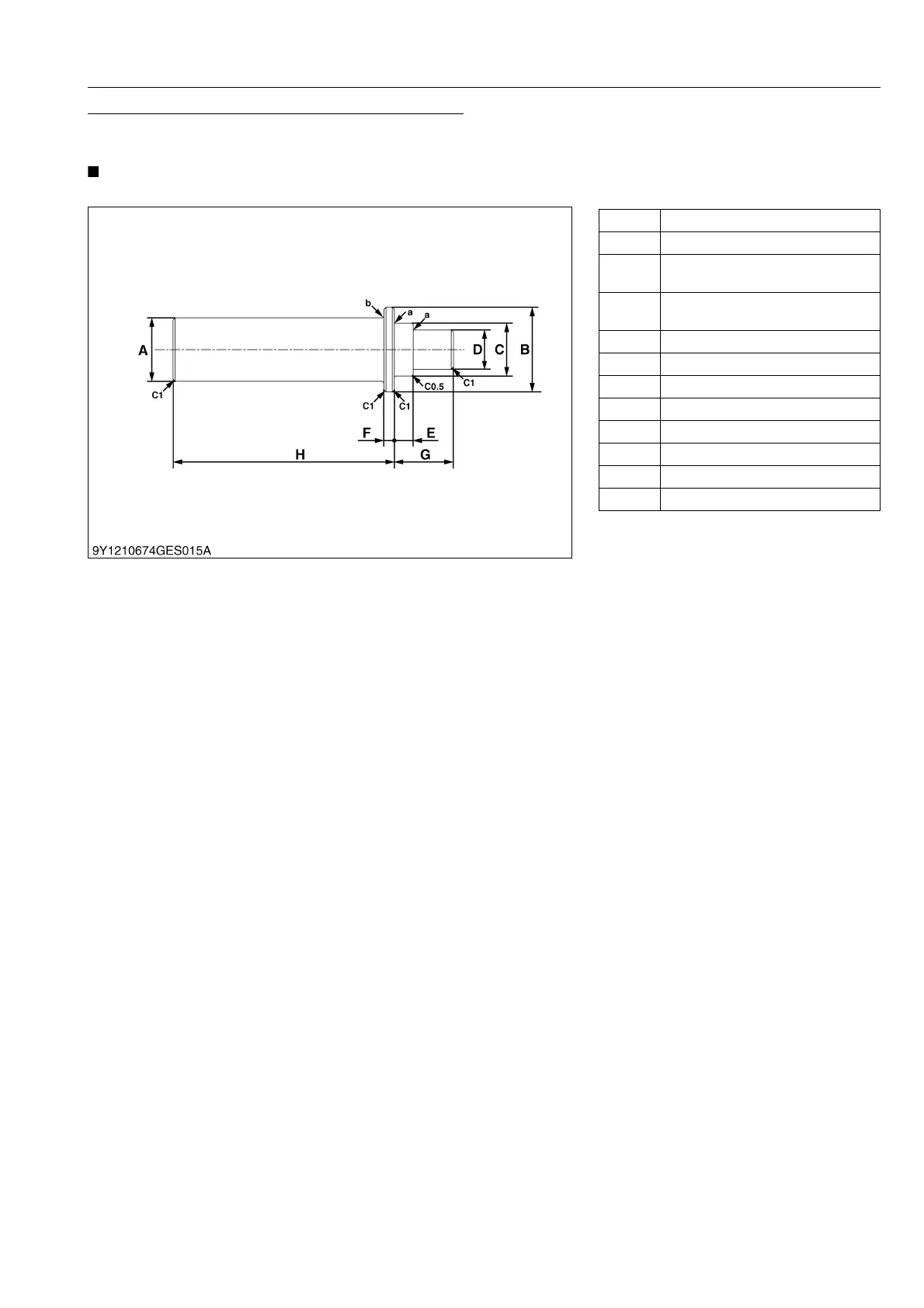

Camshaft Position Sensor Bushing Replacing Tool
Application
• Use to press fit the camshaft position sensor bushing.
• This special tool is not provided, so make it referring to the figure.
9Y1210828GEG0092US0
A 30.0 mm dia. (1.18 in. dia.)
B 40.0 mm dia. (1.57 in. dia.)
C
24.8 to 25.2 mm dia.
(0.977 to 0.992 in. dia.)
D
18.4 to 18.5 mm dia.
(0.725 to 0.728 in. dia.)
E 8.80 to 8.90 mm (0.347 to 0.350 in.)
F 5.0 mm (0.20 in.)
G 28.0 mm (1.10 in.)
H 105.0 mm (4.134 in.)
a 0.40 mm radius (0.016 in. radius)
b 1.0 mm radius (0.039 in. radius)
C0.5 Chamfer 0.50 mm (0.020 in.)
C1 Chamfer 1.0 mm (0.039 in.)
