GENERAL
M6060, M7060, WSM
G-56

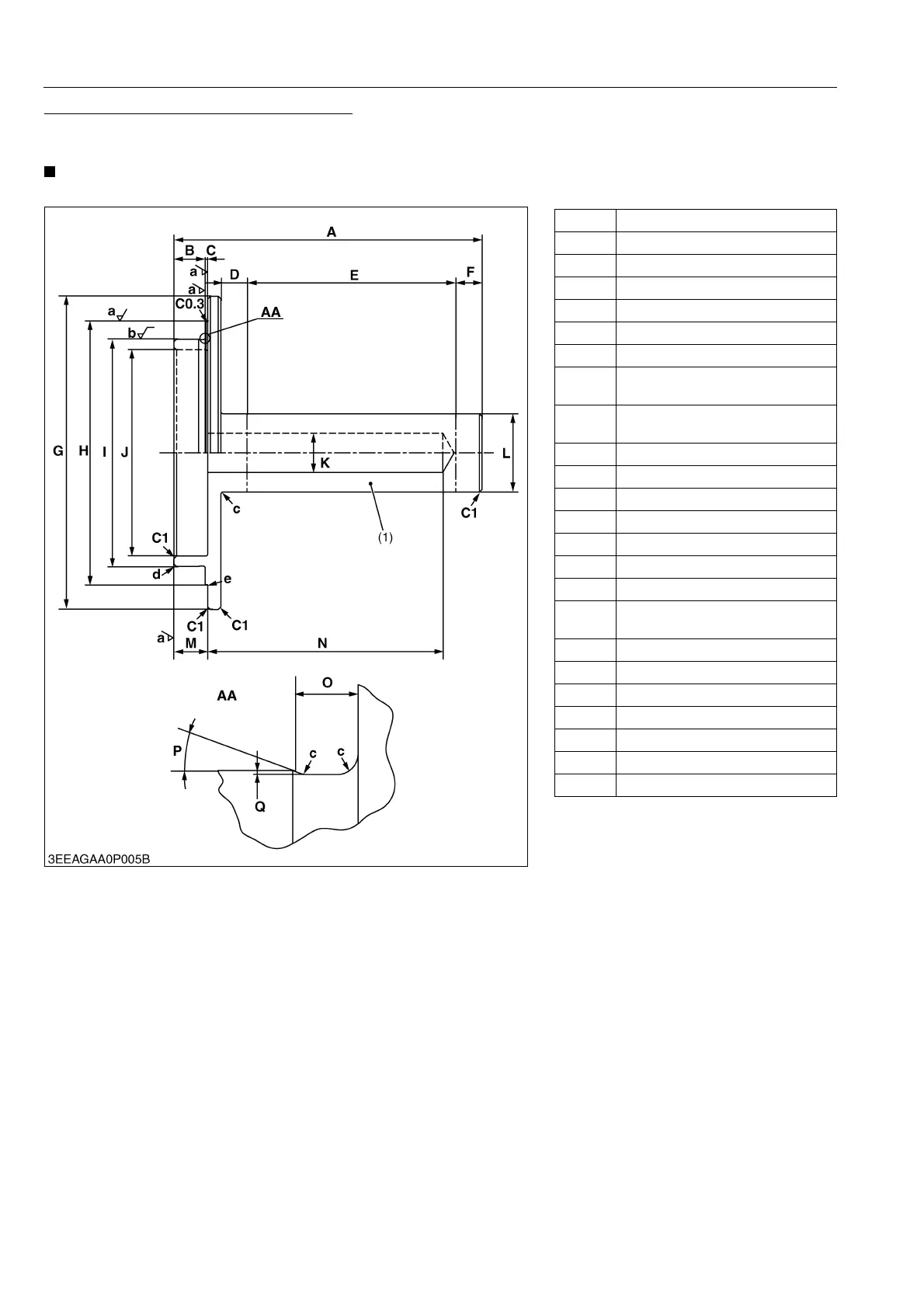

Flywheel Housing Oil Seal Replacing Tool
Application
• Use to press fit the flywheel housing oil seal.
NOTE
• This special tool is not provided, so make it referring to the figure.
9Y1210828GEG0086US0
A 118 mm (4.65 in.)
B 12.0 mm (0.472 in.)
C 0.90 to 1.0 mm (0.036 to 0.039 in.)
D 10.0 mm (0.394 in.)
E 80.0 mm (3.15 in.)
F 10.0 mm (0.394 in.)
G 120 mm dia. (4.72 in. dia.)
H
100.90 to 101.10 mm dia.
(3.9725 to 3.9803 in. dia.)
I
86.966 to 86.988 mm dia.
(3.4239 to 3.4247 in. dia.)
J 79.0 mm dia. (3.11 in. dia.)
K 15.0 mm dia. (0.591 in. dia.)
L 30.0 mm dia. (1.18 in. dia.)
M 13.0 mm (0.512 in.)
N 90.0 mm (3.54 in.)
O 2.50 mm (0.0984 in.)
P 0.35 rad (20 °)
Q
0.15 to 0.25 mm
(0.0059 to 0.0098 in.)
a Ra = 3.2 a
b Ra = 1.6 a
c 0.80 mm radius (0.031 in. radius)
d 1.5 mm radius (0.059 in. radius)
e 0.20 mm radius (0.0079 in. radius)
C0.3 Chamfer 0.30 mm (0.012 in.)
C1 Chamfer 1.0 mm (0.039 in.)
(1) Material : S43C-D
