TRANSMISSION
M6060, M7060, WSM
2-S28

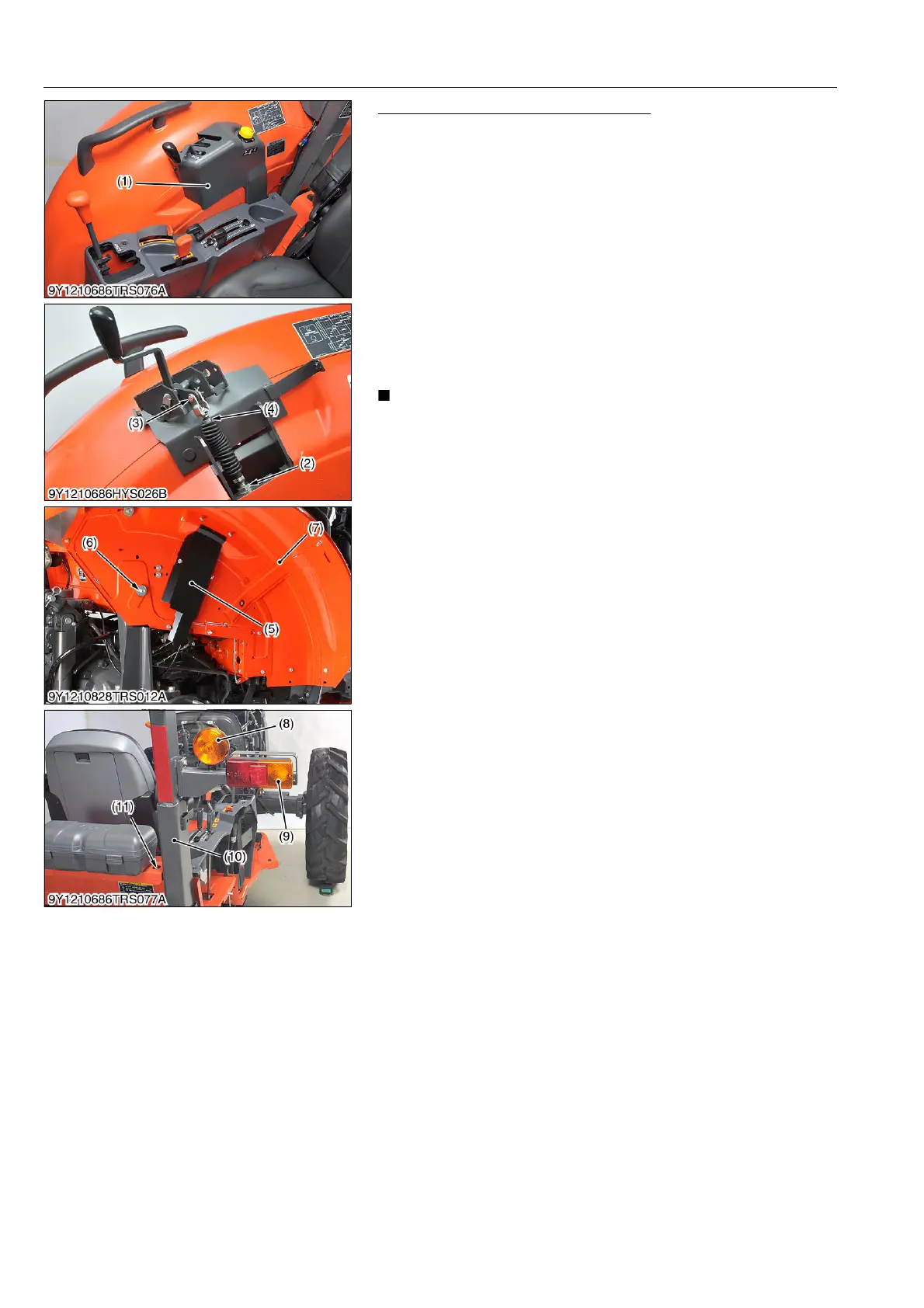

Fender (R.H.) and ROPS Under (R.H.)
1. Remove the cover (1) and then disconnect 3P connector for
PTO clutch control switch.
2. Loosen the retaining nut (2).
3. Remove the pin (3) and then disconnect the auxiliary control
valve wire (4).
4. Remove the auxiliary control valve wire cover (5).
5. Remove the screws (6) and then the fender (R.H.) (7).
6. Disconnect the 4P connector and two 1P connectors for
combination lamp (9) and hazard lamp (8).
7. Remove the screw (11) and then remove the ROPS under (10).
(When reassembling)
• Tighten the screw (6) with the cushion rubber.
• Be sure to connect the connectors.
• Be sure to reroute the OPC buzzer harness.
NOTE
• After assembling, check the auxiliary control system (see
page 7-S16).
9Y1210828TRS0035US0
(1) Cover (Auxiliary Control Valve
Lever and PTO Switch)
(2) Retaining Nut
(3) Pin
(4) Wire (Auxiliary Control Valve)
(5) Auxiliary Wire Cover
(6) Fender (R.H.) Mounting Screw
(7) Fender (R.H.)
(8) Hazard Lamp (for North America)
(9) Combination Lamp
(10) ROPS Under (R.H.)
(11) Screw
KiSC issued 08, 2013 A
