TRANSMISSION
M6060, M7060, WSM
2-S29

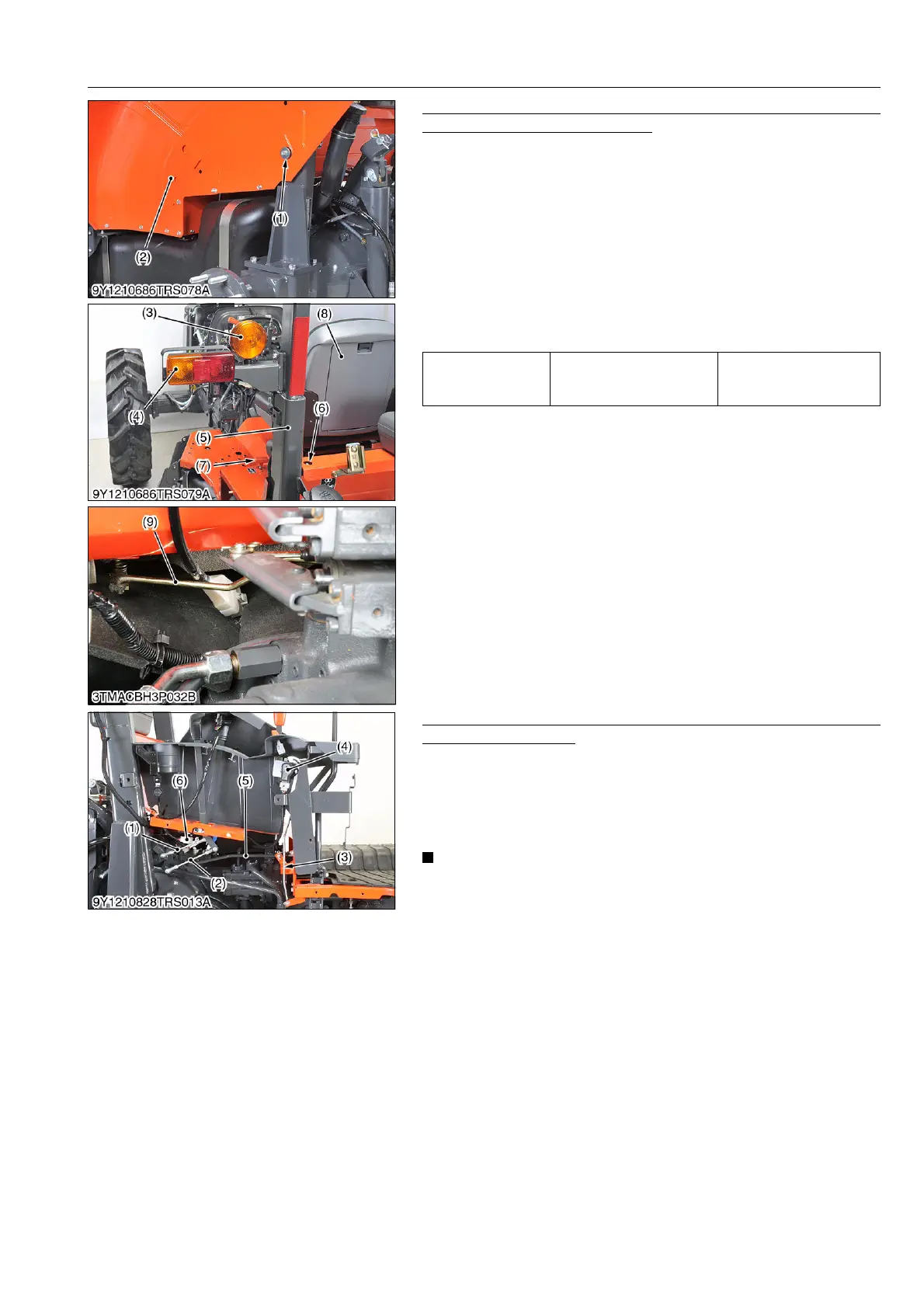

Fender (L.H.), ROPS Under (L.H.), Seat, 4WD Lever Grip and
Hydraulic Lowering Speed Rod
1. Remove the fender mounting screws (1) and then remove the
fender (2).
2. Disconnect the 4P connector and two 1P connectors for
combination lamp (4) and hazard lamp (3).
3. Remove the screw (6) then remove the ROPS under (5).
4. Remove the seat (8) and the 4WD lever grip (7).
5. Disconnect the hydraulic lowering speed rod (9).
(When reassembling)
• Tighten the screw (1) with the cushion rubber.
• Be sure to connect the connectors.
• Be sure to fix the breather hose.
9Y1210828TRS0036US0
Hydraulic Control Rods, Differential Lock Rod, Accelerator
Rod and Connectors
1. Disconnect the position control rod (2) and draft control rod (1).
2. Disconnect the differential lock rod (5) and the accelerator rod
(3).
3. Disconnect the 2P connector (6) for OPC buzzer and the 4P
connector (4) for speed sensor.
NOTE
• After assembling, check the hydraulic control rod (see
page 7-S9).
9Y1210828TRS0037US0
Tightening torque Seat mounting nut
17.7 to 20.6 N·m
1.81 to 2.10 kgf·m
13.1 to 15.2 lbf·ft
(1) Screw
(2) Fender (L.H.)
(3) Hazard Lamp (for North America)
(4) Combination Lamp
(5) ROPS Under (L.H.)
(6) Screw
(7) 4WD Lever Grip
(8) Seat
(9) Hydraulic Lowering Speed Rod
(1) Draft Control Rod
(2) Position Control Rod
(3) Accelerator Rod
(4) 4P Connector (Speed Sensor)
(5) Differential Lock Rod
(6) 2P Connector (OPC Buzzer)
KiSC issued 08, 2013 A
