TRANSMISSION
M6060, M7060, WSM
2-S30

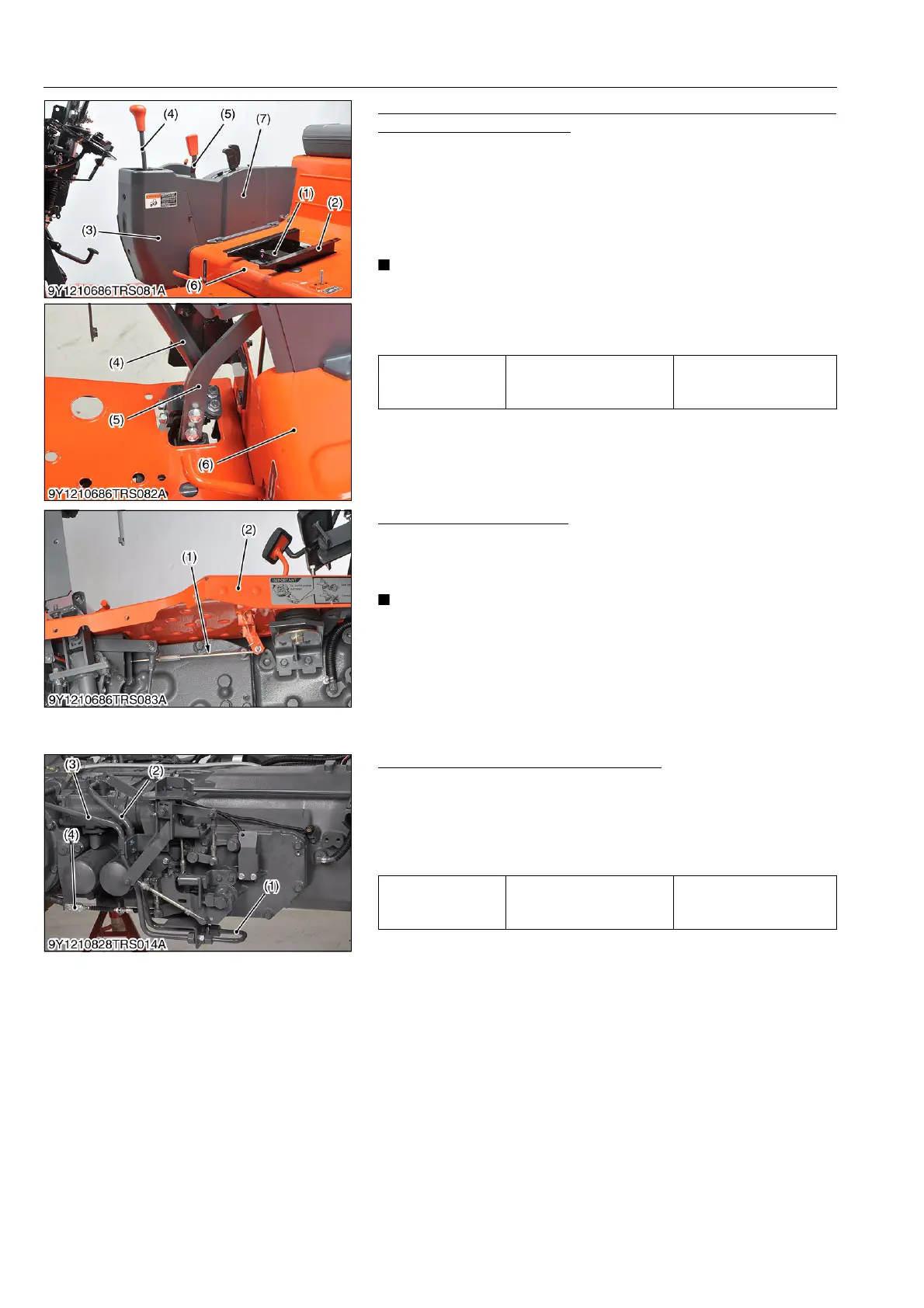

Tractor ECU, Seat Support, Main Gear Shift Rod, Range Gear
Shift Rod and Floor Cover
1. Disconnect the 44P connector for tractor ECU (1) and then
remove the ECU (1).
2. Remove the main gear shift rod cover (3) and then remove the
main gear shift rod (4) and the range gear shift rod (5).
3. Remove the floor cover (6) with the guide cover (7).
(When reassembling)
• After assembling, check the main gear shifting linkage (see
page 2-S11), the range gear shifting linkage (see page
2-S13) and the parking brake checking and adjusting (see
page 4-S6).
9Y1210828TRS0038US0
Accelerator Rod and Step
1. Disconnect the accelerator rod (1).
2. Remove the step (2) mounting bolts, and then remove the step
(2).
• After assembling check the speed change lever movement
and adjust them if necessary (see page 2-S20).
(When reassembling)
• Be sure to set the washers and rubber cushions of the step (2)
mounting screw at an original positions.
9Y1210828TRS0039US0
Hydraulic Pipe and Parking Brake Rod
1. Remove the 3-point hitch delivery pipe 2 (3).
2. Remove the 3-point hitch delivery pipe 1 (2) with outlet block (1).
3. Disconnect the parking brake rod.
(When reassembling)
• See page 4-S6 for adjusting the parking brake rod.
9Y1210828TRS0040US0
Tightening torque
Seat bracket mounting
screw
48.1 to 55.9 N·m
4.91 to 5.70 kgf·m
35.5 to 41.2 lbf·ft
(1) Tractor ECU
(2) Seat Bracket
(3) Main Gear Shift Rod Cover
(4) Main Gear Shift Rod
(5) Range Gear Shift Rod
(6) Floor Cover
(7) Guide Cover
(1) Accelerator Rod (2) Step
Tightening torque
3-point hitch delivery pipe 2
retaining nut
107.9 to 117.7 N·m
11.0 to 12.0 kgf·m
79.6 to 86.8 lbf·ft
(1) Outlet Block
(2) 3-point Hitch Delivery Pipe 1
(3) 3-point Hitch Delivery Pipe 2
(4) Parking Brake Rod
To Next Page
