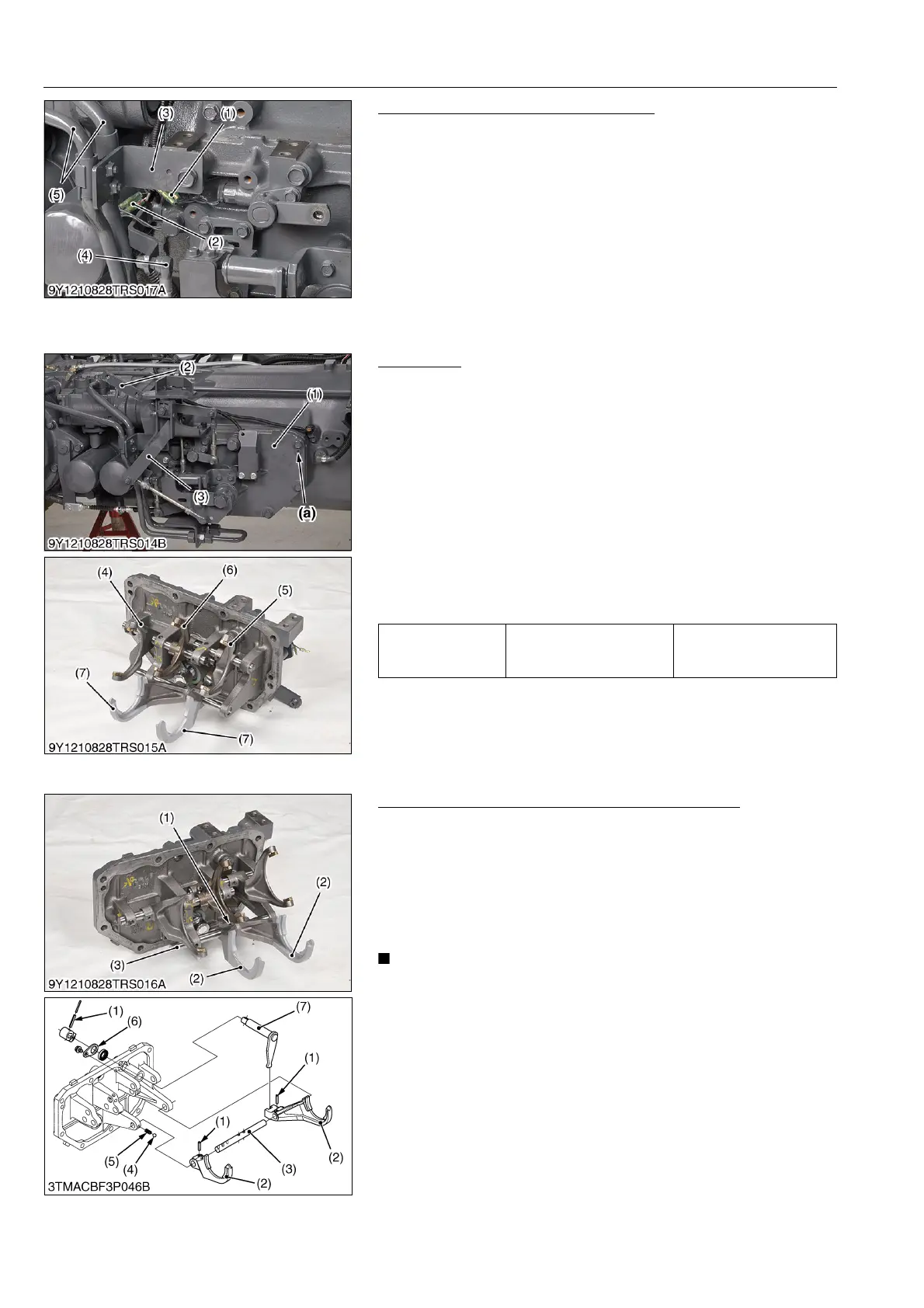

wsm M7060 - Page 299

TRANSMISSION
M6060, M7060, WSM
2-S36
Hydraulic Pipe and Switch Connector
1. Remove the pipe stay (3).
2. Disconnect the hydraulic oil delivery pipe (5) with hydraulic
block.
3. Disconnect the range shift switch connector (1).
4. Disconnect the parking lock switch connector (2).
5. Disconnect the parking lock rod (4).
(When reassembling)
• See page 4-S6 for adjusting the parking lock rod (4).
9Y1210828TRS0053US0
Shift Cover
1. Set the main change shift lever (3) to the neutral position.
2. Set the range shift lever (2) to the H position.
3. Remove the shift cover (1) mounting screws.
4. Screw in the M8 × 1.25 mm screw (or M14 × Pitch 1.5 mm
screw) to threaded hole (a) for jack up the shift cover (1).
5. Remove the shift cover (1) gently.
(When reassembling)
• Set the all main change shift fork (4), (5) and (6) to "neutral"
position and shifters in the transmission on neutral position, and
range shift forks (7) and shifters in the transmission on H side
(forward).
• Apply liquid gaskets (Three Bond 1206C or equivalent) to joint
face.
9Y1210828TRS0054US0
Range Gear Shift Fork and Range Gear Shift Arm
1. Remove the roll pins (1), fork rod (3) and range shift forks (2).
2. Remove the ball (detent) (4) and spring (5).
3. Remove the roll pin (1) and stopper plate (6).
4. Draw out the range shift arm (7).
(When assembling)
• Be sure to assemble the range shift lever and arm (7) as an
original direction shown in figure.
NOTE
• Be careful not to lose the detent ball (4) and spring (5).
9Y1210828TRS0055US0
(1) Range Shift Switch Connector
(2) Parking Lock Switch Connector
(3) Pipe Stay
(4) Parking Lock Rod
(5) Hydraulic Oil Delivery Pipe
Tightening torque Shift cover mounting screw
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
(1) Shift Cover
(2) Range Shift Lever
(3) Main Change Shift Lever
(4) 1st-2nd Shift Fork
(5) 3rd-4th Shift Fork
(6) 5th-6th Shift Fork
(7) Range Shift Forks
(a) Threaded Hole for Jack Up
(1) Roll Pin
(2) Range Shift Fork
(3) Fork Rod
(4) Ball (Detent)
(5) Spring
(6) Stopper Plate
(7) Range Shift Arm
KiSC issued 08, 2013 A
