TRANSMISSION
M6060, M7060, WSM
2-S37

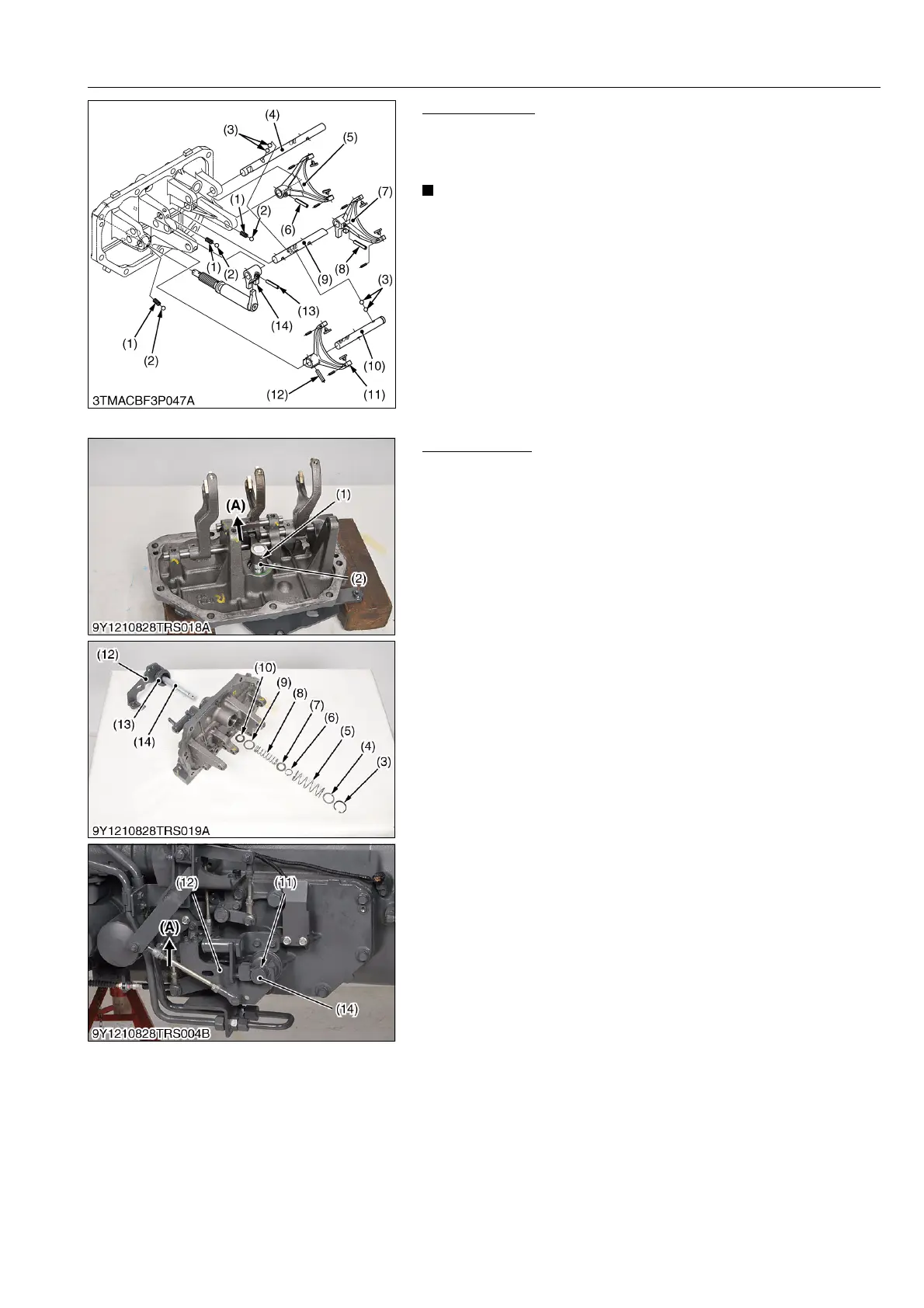

Main Shift Fork
1. Remove the roll pin (12), fork rod (10) and 1st-2nd fork (11).
2. Remove the roll pin (13) and (8), fork rod (9) and 3rd-4th fork (7).
3. Remove the roll pin (6), fork rod (4) and 5th-6th fork (5).
• Be careful not to lose the balls and springs.
• The inner lock ball (3) uses 2 balls for each position.
(When reassembling)
• Be sure to assemble the detent balls (2) with springs (1) and
inter lock balls (3).
9Y1210828TRS0056US0
Main Shift Arm
1. Remove the roll pin (1) and main shift arm (2).
2. Remove the internal circlip (3) and collar (4) then remove the
spring 1 (5).
3. Remove the external circlip (6) and collar (7) then remove the
spring 2 (8) and collar (9) and (10).
4. Remove the roll pin (11), main shift lever (12) and rubber boots
(13) then slide the main shift shaft (14).
(When reassembling)
• Be sure that both the main shift arm (2) and main shift lever (12)
are the same direction as shown in the figure.
9Y1210828TRS0057US0
(1) Spring
(2) Ball (Detent)
(3) Ball (Inter Lock)
(4) Fork Rod
(5) 5th-6th Fork
(6) Roll Pin
(7) 3rd-4th Fork
(8) Roll Pin
(9) Fork Rod
(10) Fork Rod
(11) 1st-2nd Fork
(12) Roll Pin
(13) Roll Pin
(14) Shifter
(1) Roll Pin
(2) Main Shift Arm
(3) Internal Circlip
(4) Collar
(5) Spring 1
(6) External Circlip
(7) Collar
(8) Spring 2
(9) Collar
(10) Collar
(11) Roll Pin
(12) Main Shift Lever
(13) Rubber Boots
(14) Main Shift Shaft
(A) Align the Same Direction
To Next Page
