TRANSMISSION
M6060, M7060, WSM
2-S39

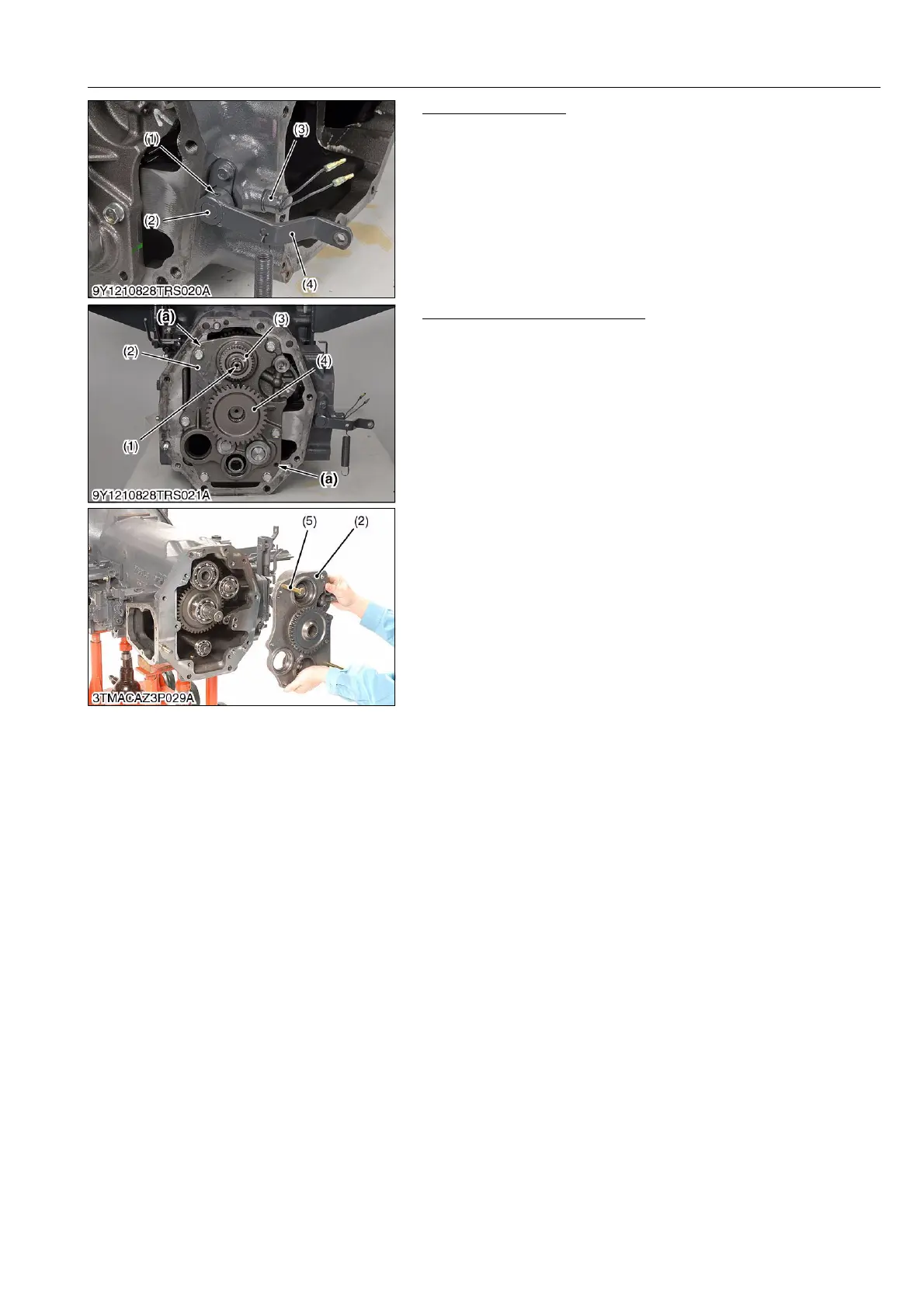

Parking Lock Lever
1. Set the parking lock lever (4) to parking release position.
2. Remove the roll pin (1).
3. Remove the parking lock arm (2).
4. Disconnect the parking lock sensor connector (3).
9Y1210828TRS0060US0
PTO Shaft and Bearing Holder
1. Pull out the PTO shaft (1) with 35T gear (3).
2. Remove the bearing holder mounting screws.
3. Screw in a M12 × 1.25 mm screw (5) into threaded hole (a) to
remove the bearing holder (2).
4. Remove the bearing holder (2) with 35T gear (4).
9Y1210828TRS0061US0
(1) Roll pin
(2) Parking Lock Arm
(3) Parking Lock Sensor Connector
(4) Parking Lock Lever
(1) PTO Shaft
(2) Bearing Holder
(3) 35T Gear
(4) 35T Gear
(5) M12 × 1.25 mm Screw
(a) Threaded Hole (M12 x P1.25 mm)
