TRANSMISSION
M6060, M7060, WSM
2-S40

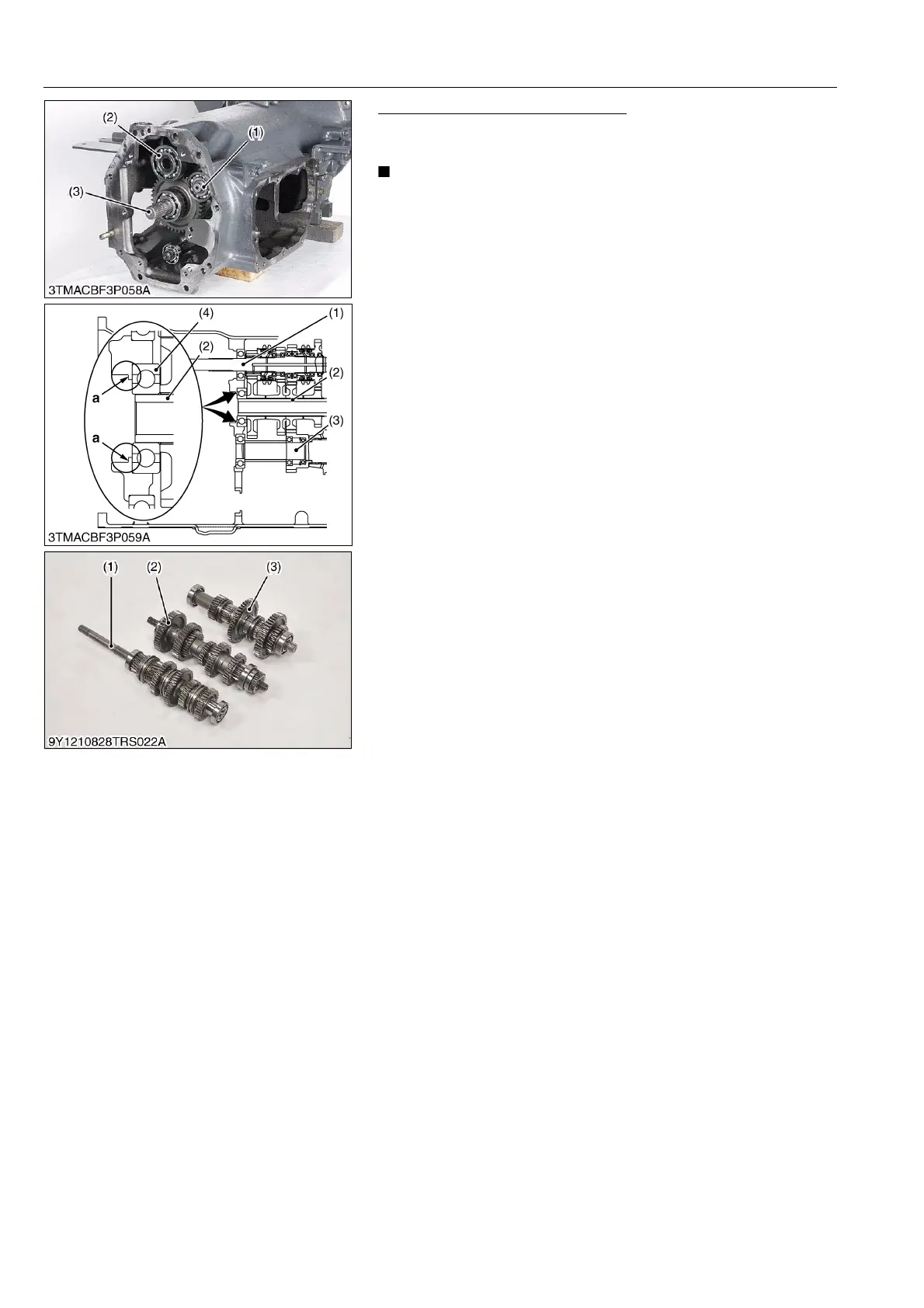

1st Shaft, 2nd Shaft and 3rd Shaft
1. Slowly pull out the three shafts with gears together.
2. Remove the three shafts from clutch housing case.
• Do not fall down the shaft when removing the shafts with
gears.
• Do not tap the bearing stop part "a" of clutch housing case,
it cause break a part of clutch housing case. Be sure to tap
at the inner race of bearing (4) or 2nd shaft when remove
the 2nd shaft assembly (2).
(When reassembling)
• For easily assemble, stand the clutch housing case and
assemble the 1st shaft assembly (1), 2nd shaft assembly (2)
and 3rd shaft assembly at same time.
9Y1210828TRS0062US0
(1) 1st Shaft Assembly
(2) 2nd Shaft Assembly
(3) 3rd Shaft Assembly
(4) Bearing
a: Bearing Stop Part
