TRANSMISSION
M6060, M7060, WSM
2-S50

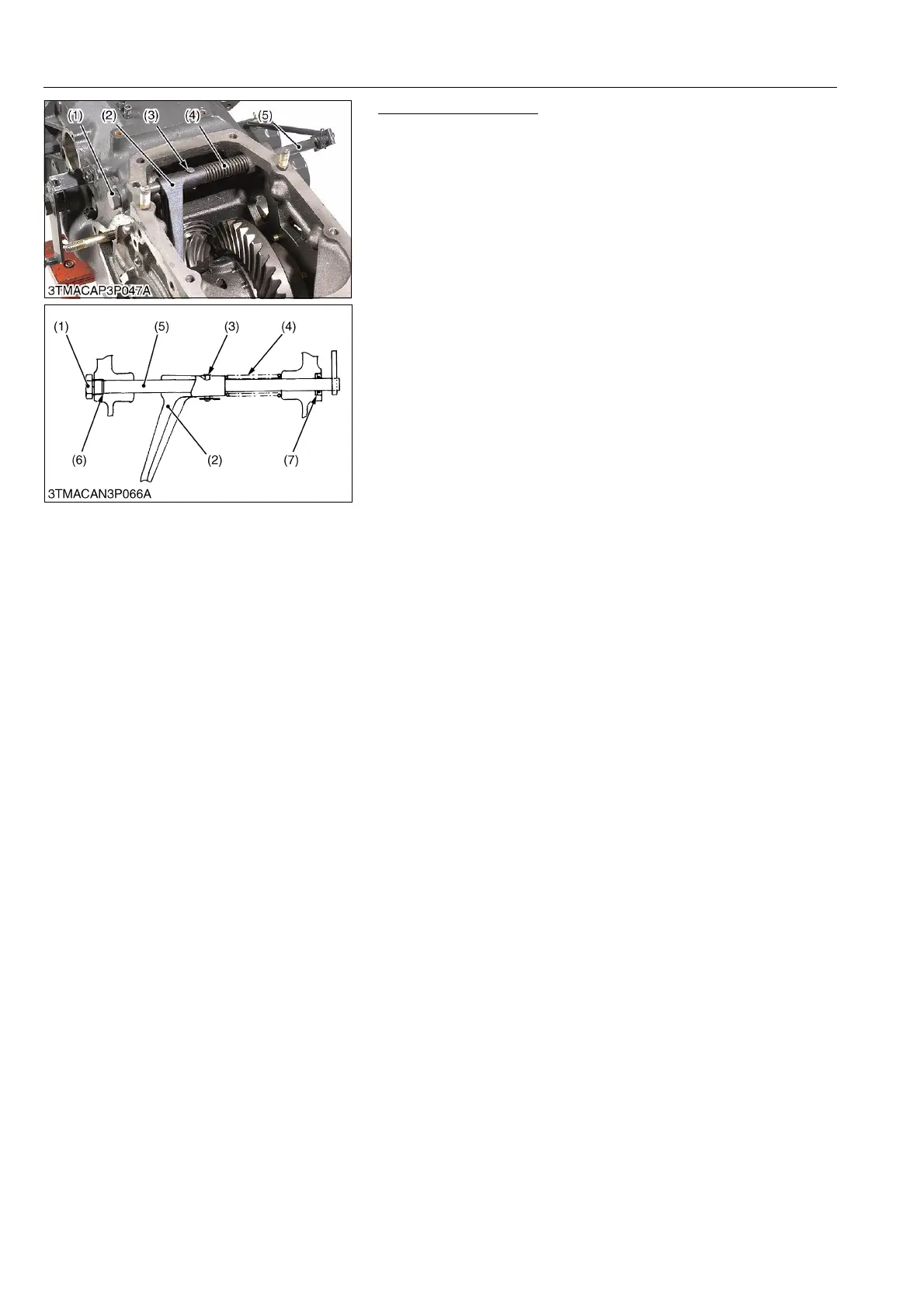

Differential Lock Fork
1. Remove the clevis pin (3) and plug (1).
2. Draw out the differential lock shaft (5).
3. Remove the differential lock shift fork (2) and spring (4).
(When reassembling)
• Apply grease to the oil seal.
9Y1210828TRS0079US0
(1) Plug
(2) Differential Lock Shift Fork
(3) Clevis Pin
(4) Spring
(5) Differential Lock Shaft
(6) Shim
(7) Oil Seal
KiSC issued 08, 2013 A
