REAR AXLE
M6060, M7060, WSM
3-S11

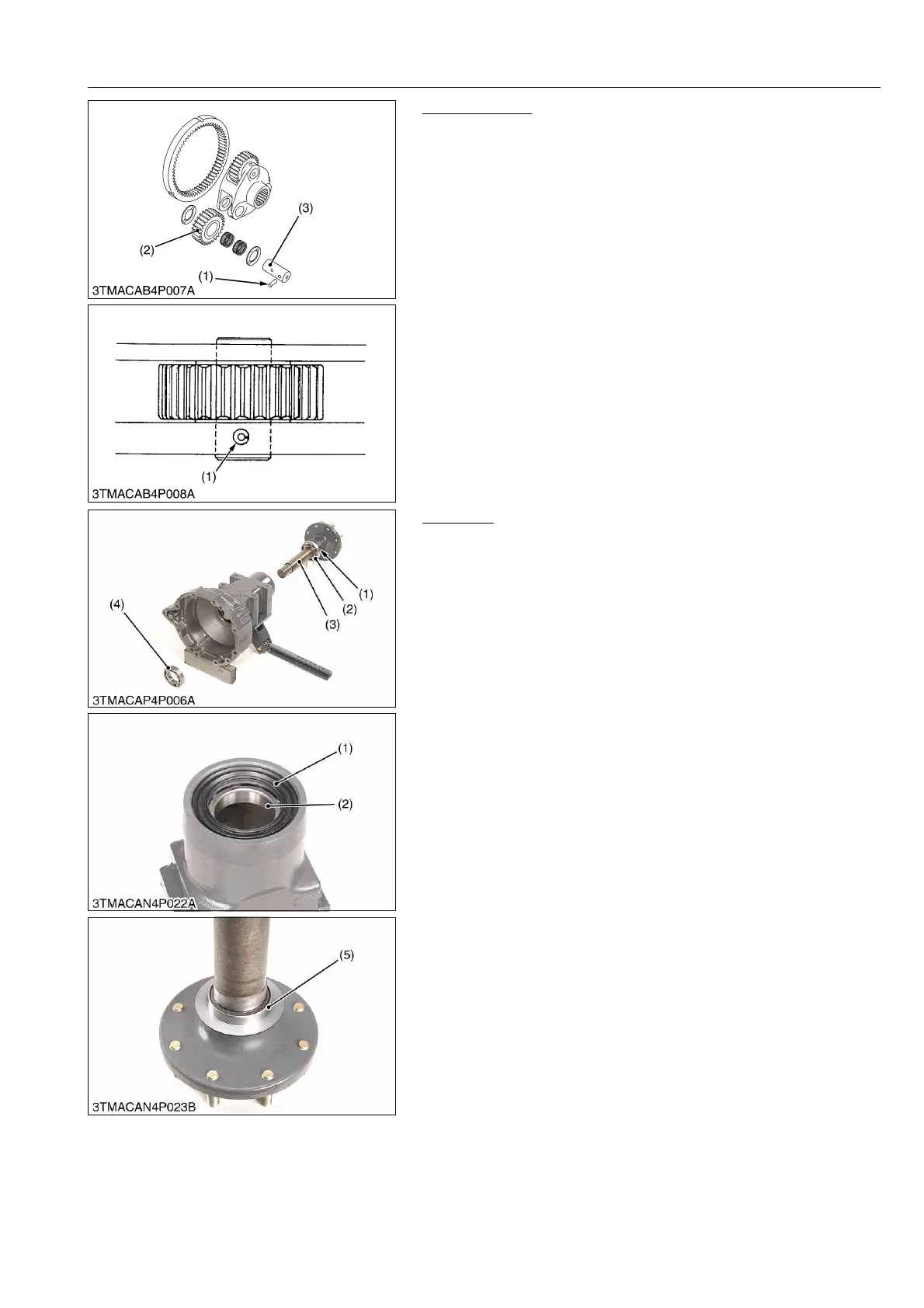

Planetary Gear
1. Tap the roll pin (1) into the planetary gear shaft (3).
2. Draw out the planetary gear shaft (3), and remove the planetary
gear (2).
3. Tap out the roll pin from the planetary gear shaft.
(When reassembling)
• Apply transmission fluid to the inner surface of planetary gear
(2).
• Tap in the roll pin (1) as shown in the figure.
9Y1210828RAS0018US0
Rear Axle
1. Tap out the rear axle (3) from the rear axle case.
2. Remove the bearing (2) and oil seal (1).
(Assembling Procedure for Rear Axle)
1. Assemble the ball bearing (2) to the rear axle case.
2. Assemble the oil seal 1 (1), face the seal lip to outside.
3. Assemble the oil seal 2 (5) to the rear axle.
4. Assemble the rear axle to rear axle case.
(When reassembling)
• Apply transmission fluid to the oil seal when insert the rear axle
to rear axle case.
9Y1210828RAS0019US0
(1) Roll Pin
(2) Planetary Gear
(3) Planetary Gear Shaft
(1) Oil Seal 1
(2) Ball Bearing
(3) Rear Axle
(4) External Circlip
(5) Oil Seal 2
