REAR AXLE
M6060, M7060, WSM
3-S12
Assembling Procedure for Rear Axle
1. Assemble the ball bearing (2) to the rear axle case.
2. Assemble the oil seal 1 (1), face the seal lip to outside.
3. Assemble the oil seal 2 (3) to the rear axle.
4. Assemble the rear axle to rear axle cae.
5. Assemble the external circlip (5) then tap in the ball bearing (4)
to the rear axle shaft.
(When reassembling)
• Apply transmission fluid to the oil seal when insert the rear axle
to rear axle case.
9Y1210828RAS0020US0

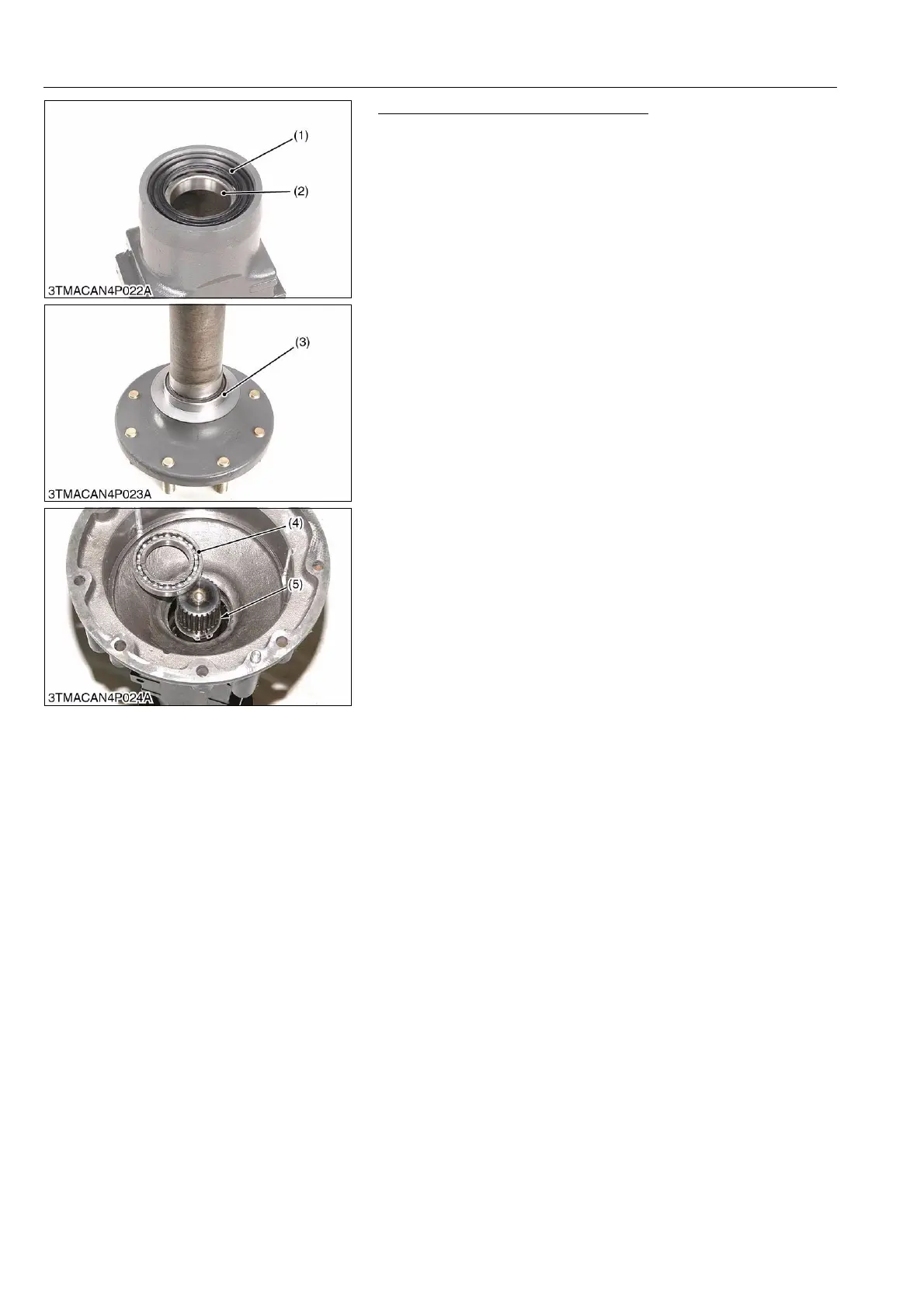

(1) Oil Seal 1
(2) Ball Bearing
(3) Oil Seal 2
(4) Ball Bearing
(5) External Circlip
