FRONT AXLE
M6060, M7060, WSM
5-S9

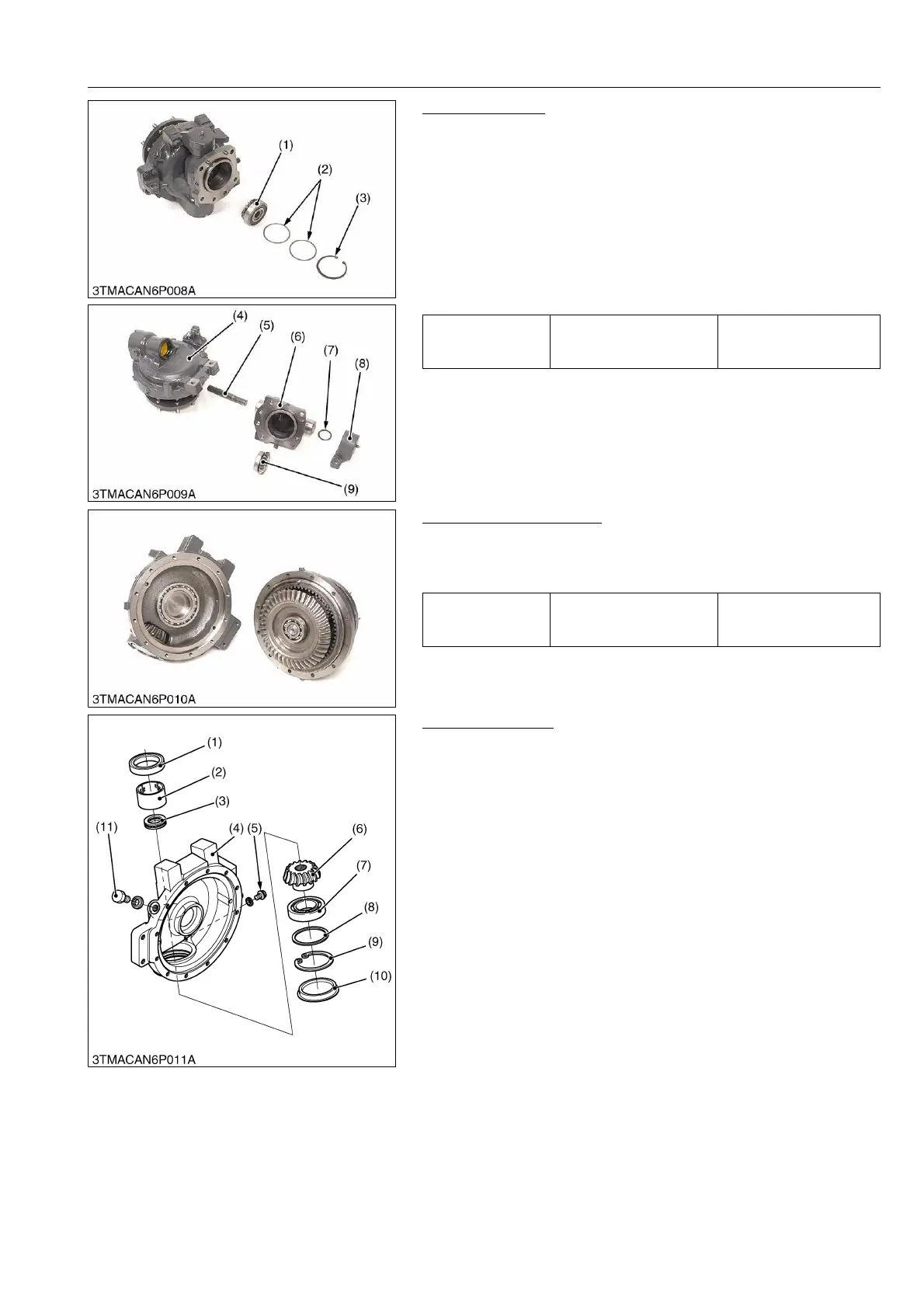

Bevel Gear Case
1. Remove the internal circlip (3) and shim (2) then draw out the
17T bevel gear (1) with bearing.
2. Remove the front wheel case support (8).
3. Draw out the 18T bevel gear (9) and bevel gear shaft (5).
(When reassembling)
• Apply grease to the front wheel case support DX bushing and
front wheel case DX bushing.
• Install the oil seal to the front wheel case support so that its lip
faces the outward.
• Apply gear oil to the bearing.
9Y1210828FAS0013US0
Front Wheel Case Cover
1. Remove the front wheel case cover from the front wheel case.
(When reassembling)
• Apply transmission fluid to the O-ring.
9Y1210828FAS0014US0
Front Wheel Case
1. Remove the cap (10) which is installed in the bottom of front
wheel case.
2. Remove the internal circlip (9) and remove the adjusting shims
(8).
3. Tap the bevel gear to downward, and remove the 15T bevel
gear (6) with bearing.
(When reassembling)
• Apply grease to the front wheel case DX bushing (2).
• Apply grease to the oil seal.
• Replace the cap (10) with new one.
• Apply transmission fluid to the cap.
9Y1210828FAS0015US0
Tightening torque
Front wheel case support
mounting screw (M16, 9T)
260 to 304 N·m
26.5 to 31.0 kgf·m
192 to 224 lbf·ft
(1) 17T Bevel Gear
(2) Shim
(3) Internal Circlip
(4) Front Wheel Case
(5) Bevel Gear Shaft
(6) Bevel Gear Case
(7) Collar
(8) Front Wheel Case Support
(9) 18T Bevel Gear
Tightening torque
Front wheel case cover
mounting screw
48 to 55 N·m
4.9 to 5.7 kgf·m
36 to 41 lbf·ft
(1) Oil Seal
(2) DX Bushing
(3) Thrust Ball Bearing
(4) Front Wheel Case
(5) Plug
(6) 15T Bevel Gear
(7) Ball Bearing
(8) Shim
(9) Internal Circlip
(10) Cap
(11) Plug
